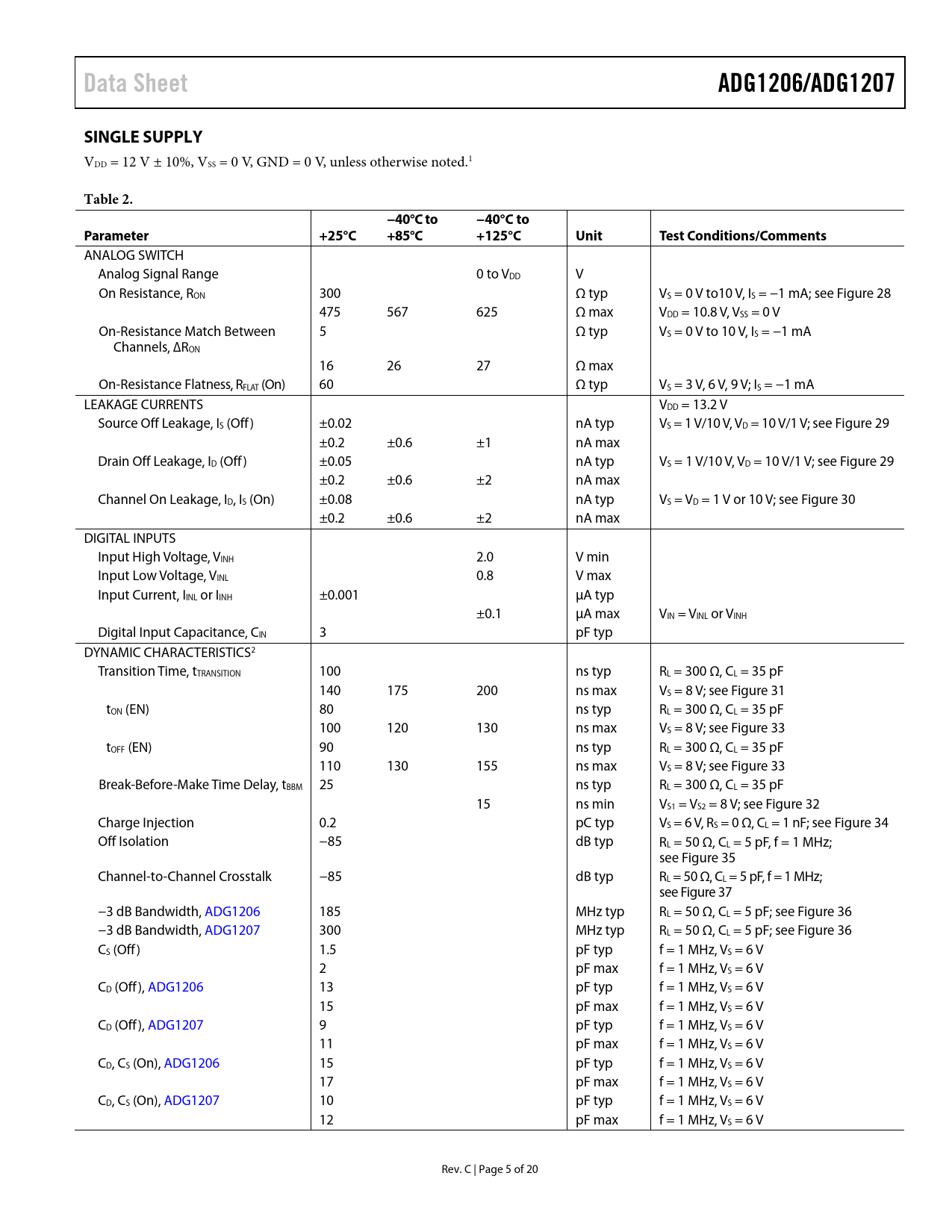

Data Sheet ADG1206/ADG1207 SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.1
Table 2. −40°C to −40°C to Parameter +25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 to VDD V On Resistance, RON 300 Ω typ VS = 0 V to10 V, IS = −1 mA; see Figure 28 475 567 625 Ω max VDD = 10.8 V, VSS = 0 V On-Resistance Match Between 5 Ω typ VS = 0 V to 10 V, IS = −1 mA Channels, ∆RON 16 26 27 Ω max On-Resistance Flatness, RFLAT (On) 60 Ω typ VS = 3 V, 6 V, 9 V; IS = −1 mA LEAKAGE CURRENTS VDD = 13.2 V Source Off Leakage, IS (Off ) ±0.02 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 29 ±0.2 ±0.6 ±1 nA max Drain Off Leakage, ID (Off ) ±0.05 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 29 ±0.2 ±0.6 ±2 nA max Channel On Leakage, ID, IS (On) ±0.08 nA typ VS = VD = 1 V or 10 V; see Figure 30 ±0.2 ±0.6 ±2 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH ±0.001 μA typ ±0.1 μA max VIN = VINL or VINH Digital Input Capacitance, CIN 3 pF typ DYNAMIC CHARACTERISTICS2 Transition Time, tTRANSITION 100 ns typ RL = 300 Ω, CL = 35 pF 140 175 200 ns max VS = 8 V; see Figure 31 tON (EN) 80 ns typ RL = 300 Ω, CL = 35 pF 100 120 130 ns max VS = 8 V; see Figure 33 tOFF (EN) 90 ns typ RL = 300 Ω, CL = 35 pF 110 130 155 ns max VS = 8 V; see Figure 33 Break-Before-Make Time Delay, tBBM 25 ns typ RL = 300 Ω, CL = 35 pF 15 ns min VS1 = VS2 = 8 V; see Figure 32 Charge Injection 0.2 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF; see Figure 34 Off Isolation −85 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 35 Channel-to-Channel Crosstalk −85 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 37 −3 dB Bandwidth, ADG1206 185 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 36 −3 dB Bandwidth, ADG1207 300 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 36 CS (Off ) 1.5 pF typ f = 1 MHz, VS = 6 V 2 pF max f = 1 MHz, VS = 6 V CD (Off ), ADG1206 13 pF typ f = 1 MHz, VS = 6 V 15 pF max f = 1 MHz, VS = 6 V CD (Off ), ADG1207 9 pF typ f = 1 MHz, VS = 6 V 11 pF max f = 1 MHz, VS = 6 V CD, CS (On), ADG1206 15 pF typ f = 1 MHz, VS = 6 V 17 pF max f = 1 MHz, VS = 6 V CD, CS (On), ADG1207 10 pF typ f = 1 MHz, VS = 6 V 12 pF max f = 1 MHz, VS = 6 V Rev. C | Page 5 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
