Datasheet ADG1233, ADG1234 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | Low Capacitance, Triple/Quad SPDT ±15 V/+12 V iCMOS Switches |
| Páginas / Página | 17 / 5 — Data Sheet. ADG1233/ADG1234. SINGLE SUPPLY. Table 2. Y Version1. … |
| Revisión | D |
| Formato / tamaño de archivo | PDF / 450 Kb |
| Idioma del documento | Inglés |

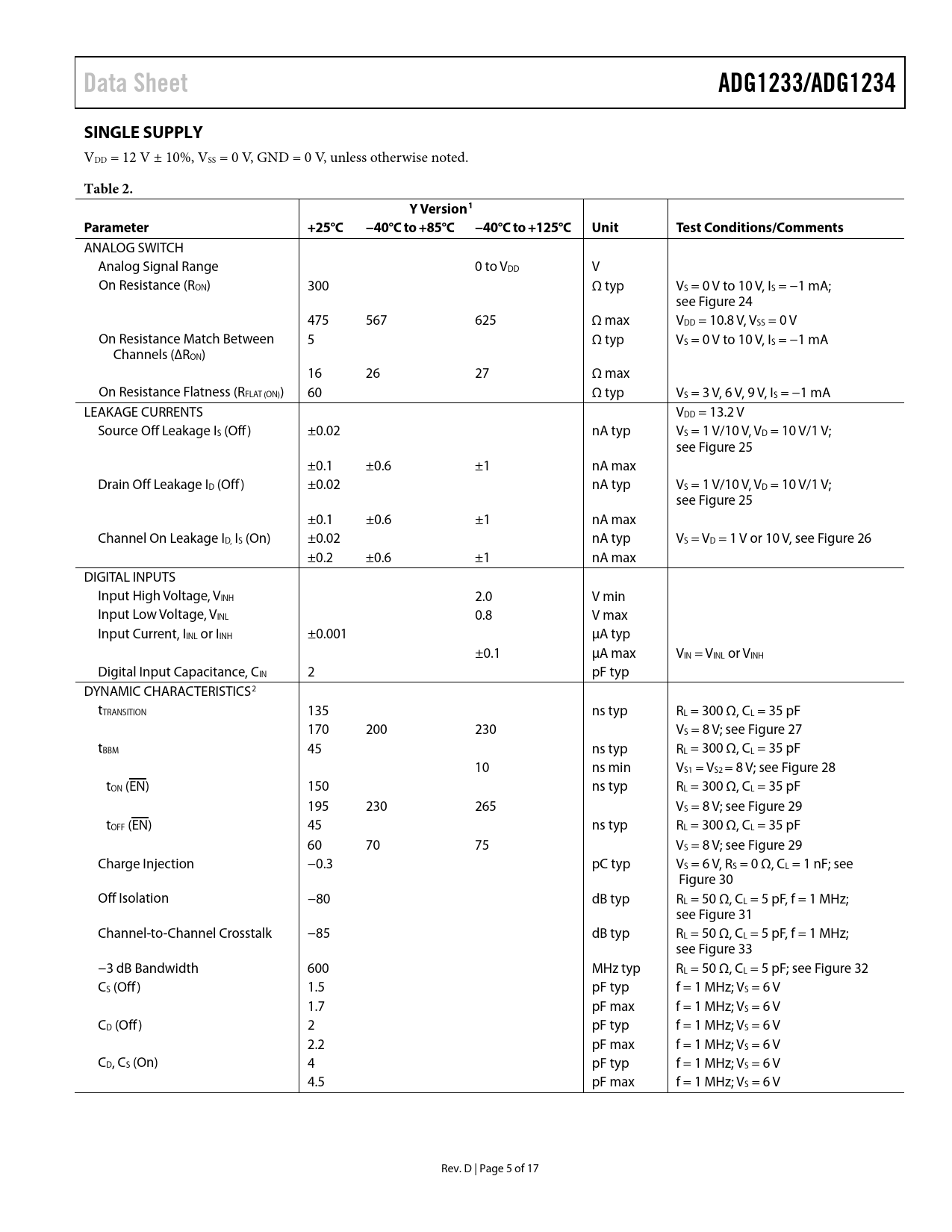

Data Sheet. ADG1233/ADG1234. SINGLE SUPPLY. Table 2. Y Version1. Parameter. +25°C. −40°C to +85°C. −40°C to +125°C. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 14 link to page 14 link to page 14 link to page 14 link to page 14 link to page 14 link to page 15 link to page 15 link to page 15 link to page 15 link to page 15 link to page 15 link to page 6 link to page 6
Data Sheet ADG1233/ADG1234 SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 2. Y Version1 Parameter +25°C −40°C to +85°C −40°C to +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 to VDD V On Resistance (RON) 300 Ω typ VS = 0 V to 10 V, IS = −1 mA; see Figure 24 475 567 625 Ω max VDD = 10.8 V, VSS = 0 V On Resistance Match Between 5 Ω typ VS = 0 V to 10 V, IS = −1 mA Channels (∆RON) 16 26 27 Ω max On Resistance Flatness (RFLAT (ON)) 60 Ω typ VS = 3 V, 6 V, 9 V, IS = −1 mA LEAKAGE CURRENTS VDD = 13.2 V Source Off Leakage IS (Off) ±0.02 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 25 ±0.1 ±0.6 ±1 nA max Drain Off Leakage ID (Off) ±0.02 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 25 ±0.1 ±0.6 ±1 nA max Channel On Leakage ID, IS (On) ±0.02 nA typ VS = VD = 1 V or 10 V, see Figure 26 ±0.2 ±0.6 ±1 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH ±0.001 µA typ ±0.1 µA max VIN = VINL or VINH Digital Input Capacitance, CIN 2 pF typ DYNAMIC CHARACTERISTICS2 tTRANSITION 135 ns typ RL = 300 Ω, CL = 35 pF 170 200 230 VS = 8 V; see Figure 27 tBBM 45 ns typ RL = 300 Ω, CL = 35 pF 10 ns min VS1 = VS2 = 8 V; see Figure 28 tON (EN) 150 ns typ RL = 300 Ω, CL = 35 pF 195 230 265 VS = 8 V; see Figure 29 tOFF (EN) 45 ns typ RL = 300 Ω, CL = 35 pF 60 70 75 VS = 8 V; see Figure 29 Charge Injection −0.3 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF; see Figure 30 Off Isolation −80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 31 Channel-to-Channel Crosstalk −85 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 33 −3 dB Bandwidth 600 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 32 CS (Off) 1.5 pF typ f = 1 MHz; VS = 6 V 1.7 pF max f = 1 MHz; VS = 6 V CD (Off) 2 pF typ f = 1 MHz; VS = 6 V 2.2 pF max f = 1 MHz; VS = 6 V CD, CS (On) 4 pF typ f = 1 MHz; VS = 6 V 4.5 pF max f = 1 MHz; VS = 6 V Rev. D | Page 5 of 17 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
