Datasheet ADG619, ADG620 (Analog Devices)

FabricanteAnalog Devices
DescripciónCMOS, ±5 V/+5 V, 4 Ω, Single SPDT Switches
Páginas / Página16 / 1 — CMOS, ±5 V/+5 V,. 4 Ω, Single SPDT Switches. ADG619/ADG620. FEATURES. …
RevisiónC
Formato / tamaño de archivoPDF / 367 Kb
Idioma del documentoInglés

CMOS, ±5 V/+5 V,. 4 Ω, Single SPDT Switches. ADG619/ADG620. FEATURES. FUNCTIONAL BLOCK DIAGRAM. 6.5 Ω (maximum) on resistance

Datasheet ADG619, ADG620 Analog Devices, Revisión: C

Línea de modelo para esta hoja de datos

Versión de texto del documento

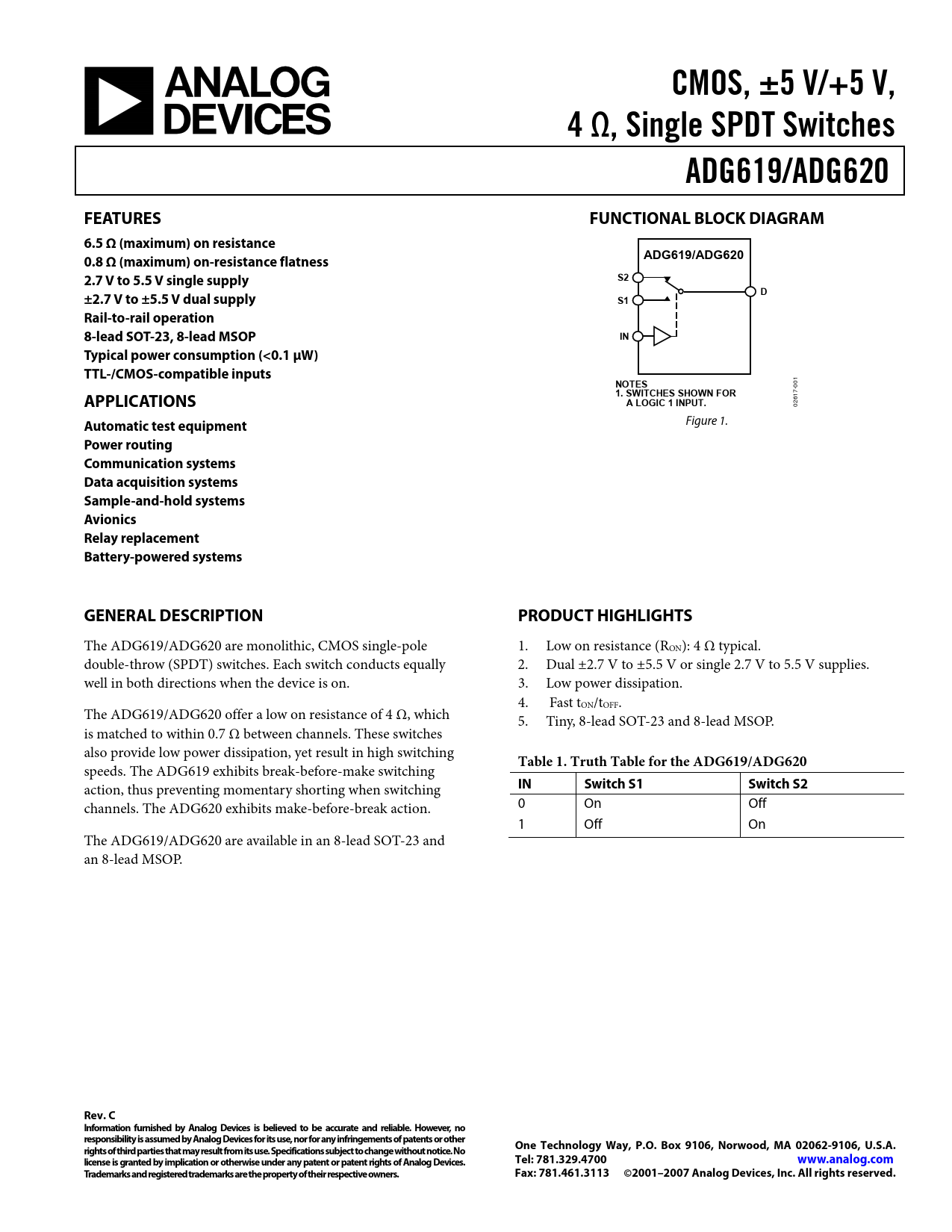

CMOS, ±5 V/+5 V, 4 Ω, Single SPDT Switches ADG619/ADG620 FEATURES FUNCTIONAL BLOCK DIAGRAM 6.5 Ω (maximum) on resistance ADG619/ADG620 0.8 Ω (maximum) on-resistance flatness 2.7 V to 5.5 V single supply S2 D ±2.7 V to ±5.5 V dual supply S1 Rail-to-rail operation 8-lead SOT-23, 8-lead MSOP IN Typical power consumption (<0.1 μW) TTL-/CMOS-compatible inputs NOTES
01 0
1. SWITCHES SHOWN FOR
7-
APPLICATIONS A LOGIC 1 INPUT.
61 02
Automatic test equipment
Figure 1.
Power routing Communication systems Data acquisition systems Sample-and-hold systems Avionics Relay replacement Battery-powered systems GENERAL DESCRIPTION PRODUCT HIGHLIGHTS
The ADG619/ADG620 are monolithic, CMOS single-pole 1. Low on resistance (RON): 4 Ω typical. double-throw (SPDT) switches. Each switch conducts equally 2. Dual ±2.7 V to ±5.5 V or single 2.7 V to 5.5 V supplies. well in both directions when the device is on. 3. Low power dissipation. 4. Fast tON/tOFF. The ADG619/ADG620 offer a low on resistance of 4 Ω, which 5. Tiny, 8-lead SOT-23 and 8-lead MSOP. is matched to within 0.7 Ω between channels. These switches also provide low power dissipation, yet result in high switching
Table 1. Truth Table for the ADG619/ADG620
speeds. The ADG619 exhibits break-before-make switching action, thus preventing momentary shorting when switching
IN Switch S1 Switch S2
channels. The ADG620 exhibits make-before-break action. 0 On Off 1 Off On The ADG619/ADG620 are available in an 8-lead SOT-23 and an 8-lead MSOP.
