Datasheet ADG706, ADG707 (Analog Devices)

FabricanteAnalog Devices
DescripciónCMOS, +1.8 V to +5.5 V/ⴞ2.5 V, 2.5 ⍀ Low-Voltage, 8-/16-Channel Multiplexers
Páginas / Página12 / 1 — CMOS, +1.8 V to +5.5 V/. 2.5 V, 2.5. Low-Voltage, 8-/16-Channel …
RevisiónB
Formato / tamaño de archivoPDF / 263 Kb
Idioma del documentoInglés

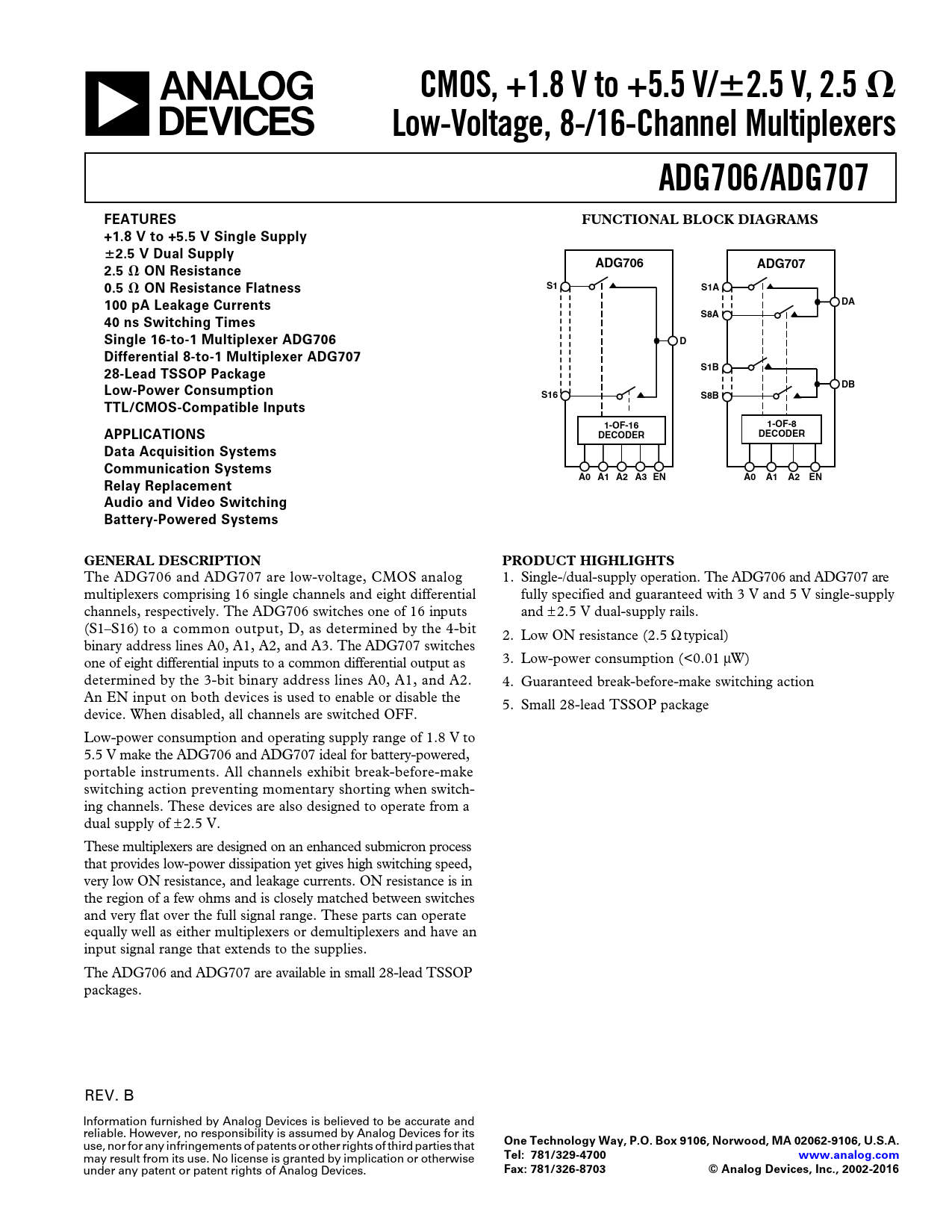

CMOS, +1.8 V to +5.5 V/. 2.5 V, 2.5. Low-Voltage, 8-/16-Channel Multiplexers. ADG706/ADG707. FEATURES. FUNCTIONAL BLOCK DIAGRAMS

Datasheet ADG706, ADG707 Analog Devices, Revisión: B

Línea de modelo para esta hoja de datos

Versión de texto del documento

a
CMOS, +1.8 V to +5.5 V/

2.5 V, 2.5

Low-Voltage, 8-/16-Channel Multiplexers ADG706/ADG707 FEATURES FUNCTIONAL BLOCK DIAGRAMS +1.8 V to +5.5 V Single Supply

2.5 V Dual Supply ADG706 ADG707 2.5

ON Resistance 0.5

ON Resistance Flatness S1 S1A 100 pA Leakage Currents DA S8A 40 ns Switching Times Single 16-to-1 Multiplexer ADG706 D Differential 8-to-1 Multiplexer ADG707 S1B 28-Lead TSSOP Package DB Low-Power Consumption S16 S8B TTL/CMOS-Compatible Inputs 1-OF-16 1-OF-8 APPLICATIONS DECODER DECODER Data Acquisition Systems Communication Systems A0 A1 A2 A3 EN A0 A1 A2 EN Relay Replacement Audio and Video Switching Battery-Powered Systems GENERAL DESCRIPTION PRODUCT HIGHLIGHTS
The ADG706 and ADG707 are low-voltage, CMOS analog 1. Single-/dual-supply operation. The ADG706 and ADG707 are multiplexers comprising 16 single channels and eight differential fully specified and guaranteed with 3 V and 5 V single-supply channels, respectively. The ADG706 switches one of 16 inputs and ± 2.5 V dual-supply rails. (S1–S16) to a common output, D, as determined by the 4-bit 2. Low ON resistance (2.5 Ω typical) binary address lines A0, A1, A2, and A3. The ADG707 switches one of eight differential inputs to a common differential output as 3. Low-power consumption (<0.01 µW) determined by the 3-bit binary address lines A0, A1, and A2. 4. Guaranteed break-before-make switching action An EN input on both devices is used to enable or disable the 5. Small 28-lead TSSOP package device. When disabled, all channels are switched OFF. Low-power consumption and operating supply range of 1.8 V to 5.5 V make the ADG706 and ADG707 ideal for battery-powered, portable instruments. All channels exhibit break-before-make switching action preventing momentary shorting when switch- ing channels. These devices are also designed to operate from a dual supply of ± 2.5 V. These multiplexers are designed on an enhanced submicron process that provides low-power dissipation yet gives high switching speed, very low ON resistance, and leakage currents. ON resistance is in the region of a few ohms and is closely matched between switches and very flat over the full signal range. These parts can operate equally well as either multiplexers or demultiplexers and have an input signal range that extends to the supplies. The ADG706 and ADG707 are available in small 28-lead TSSOP packages. REV. B Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
use, nor for any infringements of patents or other rights of third parties that
Tel: 781/329-4700 www.analog.com
may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Fax: 781/326-8703 © Analog Devices, Inc., 2002-2016
