Datasheet ADG408, ADG409 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | Datasheet LC2MOS 4-/8-Channel High Performance Analog Multiplexers |
| Páginas / Página | 15 / 5 — Data Sheet. ADG408/ADG409. B Version. T Version. −40°C to. −55°C to. … |
| Revisión | D |
| Formato / tamaño de archivo | PDF / 259 Kb |
| Idioma del documento | Inglés |

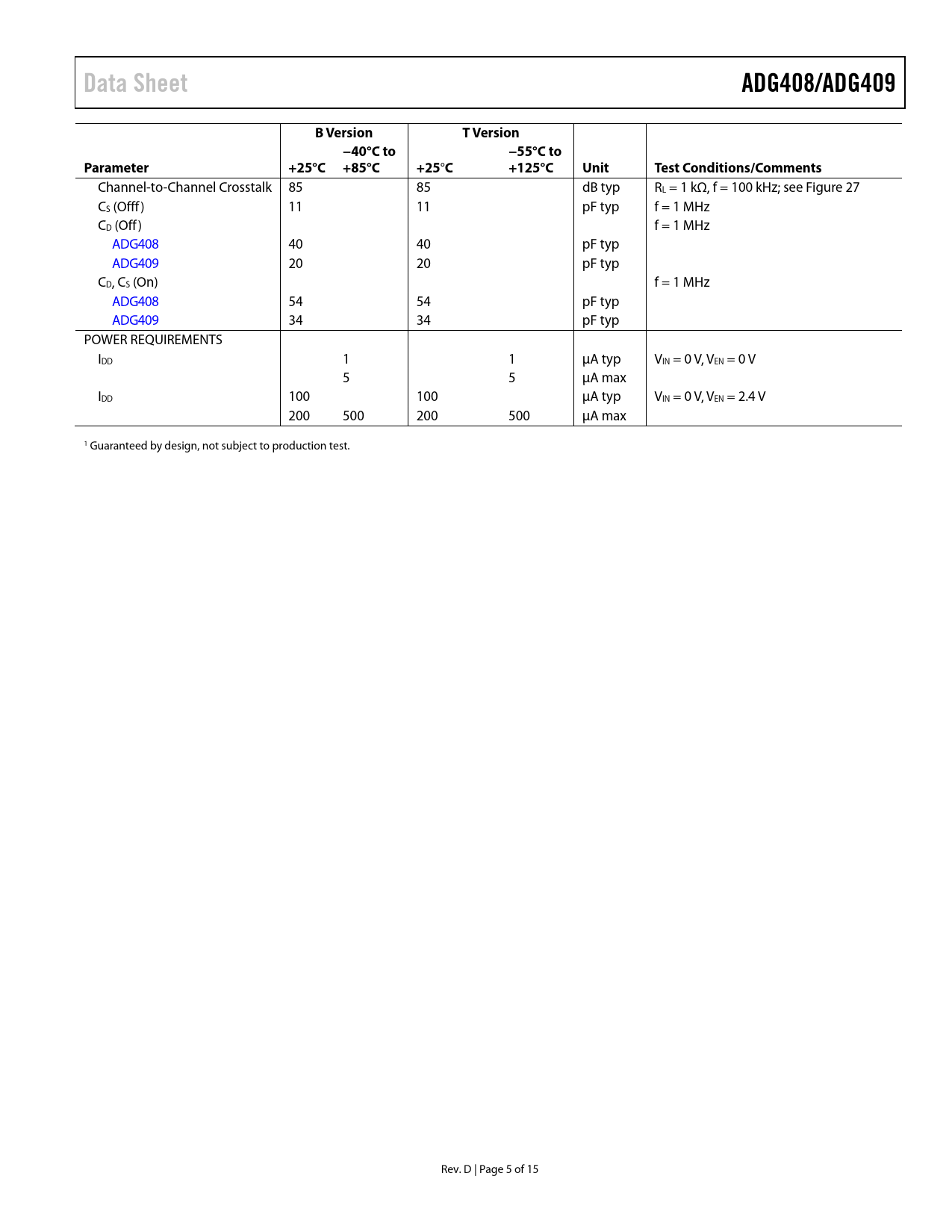

Data Sheet. ADG408/ADG409. B Version. T Version. −40°C to. −55°C to. Parameter +25°C. +85°C. +25. +125°C. Unit Test. Conditions/Comments
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 12
Data Sheet ADG408/ADG409 B Version T Version −40°C to −55°C to Parameter +25°C +85°C +25
°
C +125°C Unit Test Conditions/Comments
Channel-to-Channel Crosstalk 85 85 dB typ RL = 1 kΩ, f = 100 kHz; see Figure 27 CS (Offf ) 11 11 pF typ f = 1 MHz CD (Off ) f = 1 MHz ADG408 40 40 pF typ ADG409 20 20 pF typ CD, CS (On) f = 1 MHz ADG408 54 54 pF typ ADG409 34 34 pF typ POWER REQUIREMENTS IDD 1 1 μA typ VIN = 0 V, VEN = 0 V 5 5 μA max IDD 100 100 μA typ VIN = 0 V, VEN = 2.4 V 200 500 200 500 μA max 1 Guaranteed by design, not subject to production test. Rev. D | Page 5 of 15 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DUAL SUPPLY SINGLE SUPPLY ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
