Databrief TDA7901 (STMicroelectronics) - 8
| Fabricante | STMicroelectronics |
| Descripción | High efficiency digital input automotive quad power amplifier with built-in diagnostics features, Class-G integrated, "start stop" compatible |
| Páginas / Página | 13 / 8 — TDA7901. PowerSO-36 (slug up) package information. Dimensions (mm). Ref. … |
| Formato / tamaño de archivo | PDF / 217 Kb |
| Idioma del documento | Inglés |

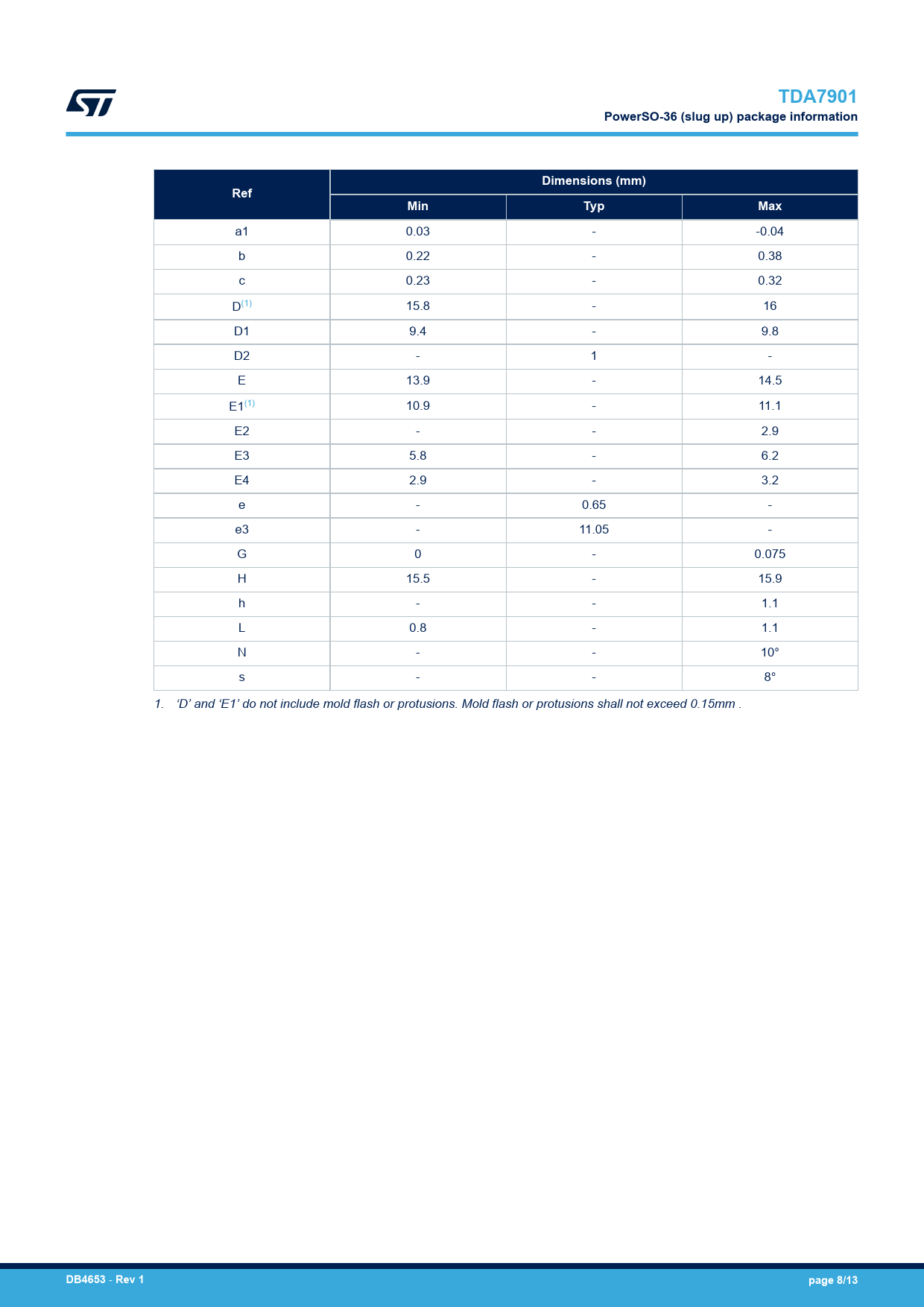

TDA7901. PowerSO-36 (slug up) package information. Dimensions (mm). Ref. Min. Typ. Max. DB4653. Rev 1. page 8/13
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 8 link to page 8
TDA7901 PowerSO-36 (slug up) package information Dimensions (mm) Ref Min Typ Max
a1 0.03 - -0.04 b 0.22 - 0.38 c 0.23 - 0.32 D(1) 15.8 - 16 D1 9.4 - 9.8 D2 - 1 - E 13.9 - 14.5 E1(1) 10.9 - 11.1 E2 - - 2.9 E3 5.8 - 6.2 E4 2.9 - 3.2 e - 0.65 - e3 - 11.05 - G 0 - 0.075 H 15.5 - 15.9 h - - 1.1 L 0.8 - 1.1 N - - 10° s - - 8° 1. ‘D’ and ‘E1’ do not include mold flash or protusions. Mold flash or protusions shall not exceed 0.15mm .
DB4653
-
Rev 1 page 8/13
Document Outline 1 Block diagram and pins description 1.1 Block diagram 1.2 Pin description 2 Electrical specifications 2.1 Thermal data 3 General description 4 Package information 4.1 PowerSO-36 (slug up) package information Revision history
