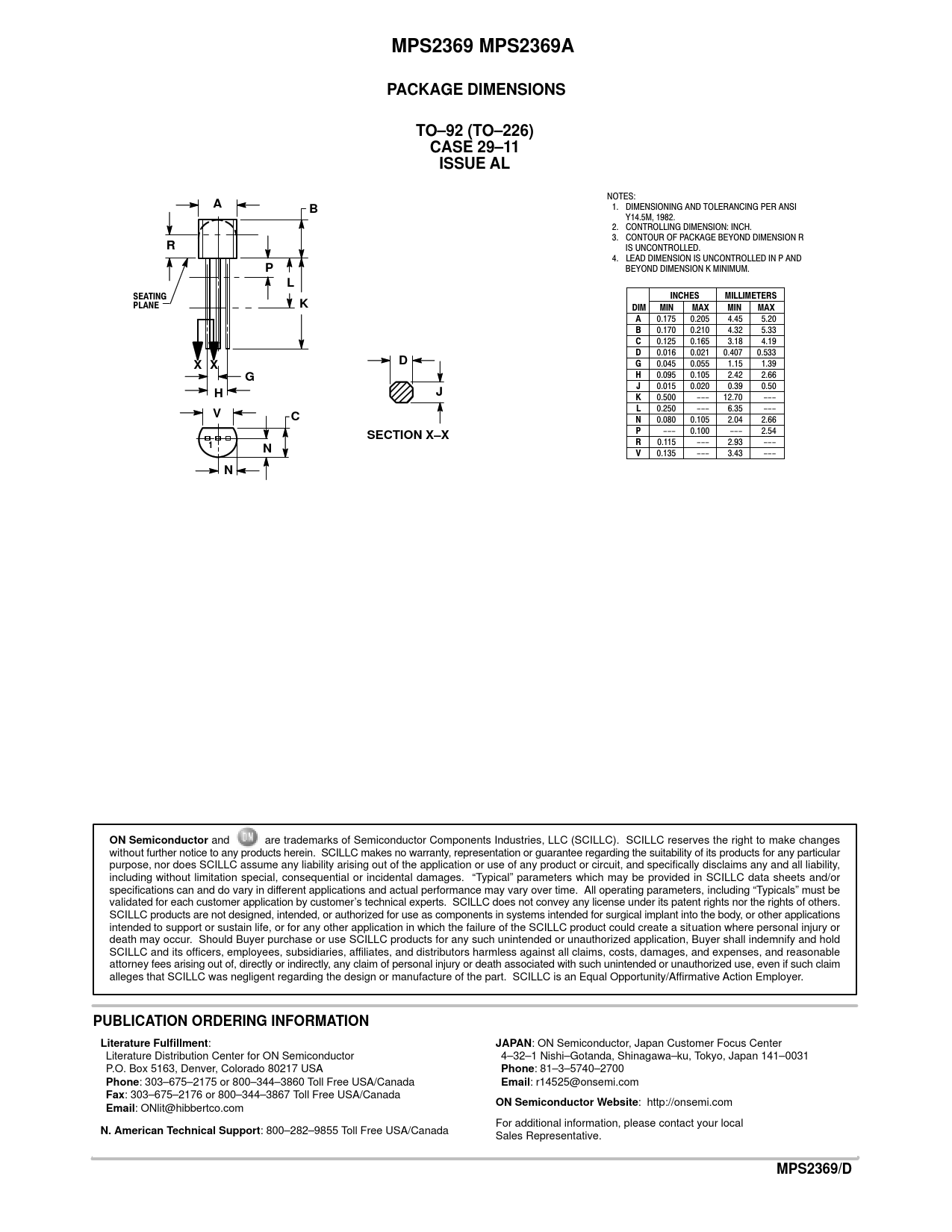

MPS2369 MPS2369A PACKAGE DIMENSIONS TO–92 (TO–226) CASE 29–11 ISSUE AL
NOTES:
A
1. DIMENSIONING AND TOLERANCING PER ANSI
B
Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. 3. CONTOUR OF PACKAGE BEYOND DIMENSION R
R
IS UNCONTROLLED. 4. LEAD DIMENSION IS UNCONTROLLED IN P AND
P
BEYOND DIMENSION K MINIMUM.
L
SEATING INCHES MILLIMETERS PLANE
K
DIM MIN MAX MIN MAX A 0.175 0.205 4.45 5.20 B 0.170 0.210 4.32 5.33 C 0.125 0.165 3.18 4.19 D 0.016 0.021 0.407 0.533
D X X
G 0.045 0.055 1.15 1.39
G
H 0.095 0.105 2.42 2.66 J 0.015 0.020 0.39 0.50
H J
K 0.500 --- 12.70 ---
V
L 0.250 --- 6.35 ---
C
N 0.080 0.105 2.04 2.66
SECTION X–X
P --- 0.100 --- 2.54 R 0.115 --- 2.93 --- 1
N
V 0.135 --- 3.43 ---
