HIERARCHICAL STRUCTURE FOR 1-WIRE PROTOCOL. DS2423. DS2423 SPECIFIC MEMORY. FUNCTION COMMANDS. (SEE FIGURE 7). 64-BIT LASERED ROM
Línea de modelo para esta hoja de datos
Versión de texto del documento
DS2423

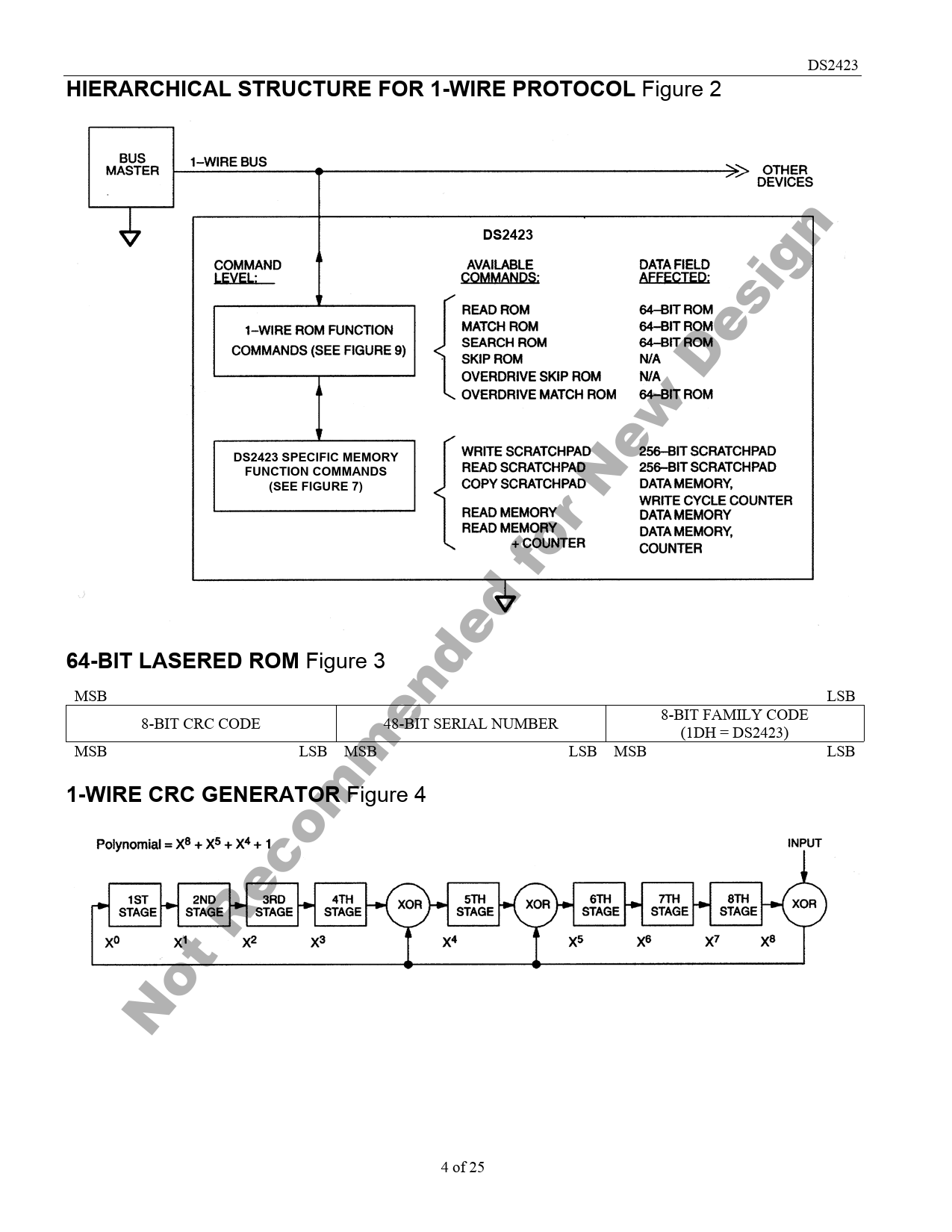

HIERARCHICAL STRUCTURE FOR 1-WIRE PROTOCOL
Figure 2
DS2423 DS2423 SPECIFIC MEMORY FUNCTION COMMANDS (SEE FIGURE 7) 64-BIT LASERED ROM
Figure 3 MSB LSB 8-BIT FAMILY CODE 8-BIT CRC CODE 48-BIT SERIAL NUMBER (1DH = DS2423) MSB LSB MSB LSB MSB LSB
1-WIRE CRC GENERATOR
Figure 4
Not Recommended for New Design
4 of 25
