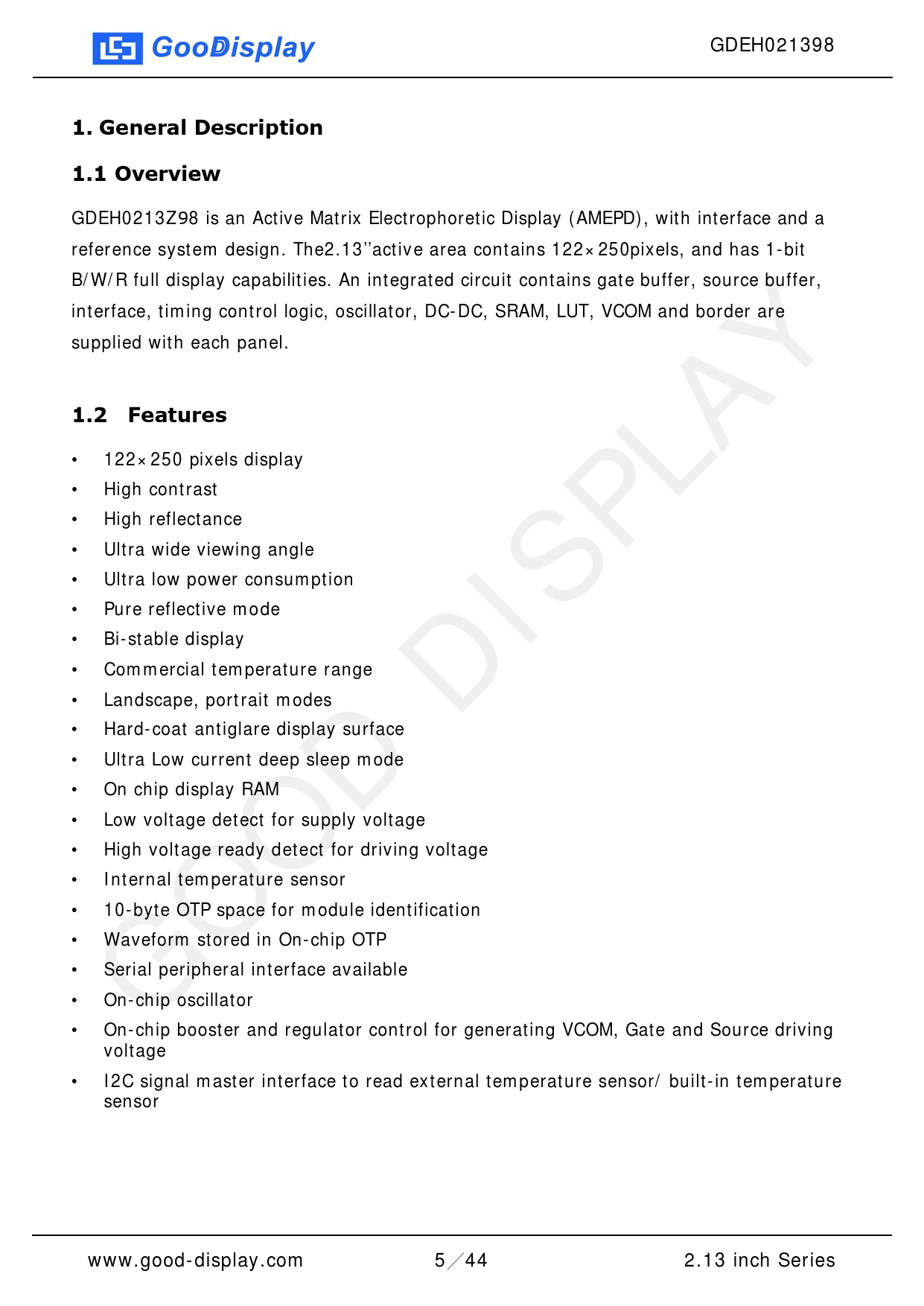

GDEH021398 1. General Description
1.1 Overview
GDEH0213Z98 is an Active Matrix Electrophoretic Display (AMEPD), with interface and a
reference system design. The2.13’’active area contains 122×250pixels, and has 1-bit
B/W/R full display capabilities. An integrated circuit contains gate buffer, source buffer,
interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are LA Y supplied with each panel. 1.2 Features
122×250 pixels display • High contrast • High reflectance • Ultra wide viewing angle • Ultra low power consumption • Pure reflective mode • Bi-stable display • Commercial temperature range • Landscape, portrait modes • Hard-coat antiglare display surface • Ultra Low current deep sleep mode • On chip display RAM • Low voltage detect for supply voltage • High voltage ready detect for driving voltage • Internal temperature sensor D D O 10-byte OTP space for module identification
Waveform stored in On-chip OTP G • O • IS
P • • Serial peripheral interface available • On-chip oscillator • On-chip booster and regulator control for generating VCOM, Gate and Source driving
voltage • I2C signal master interface to read external temperature sensor/ built-in temperature
