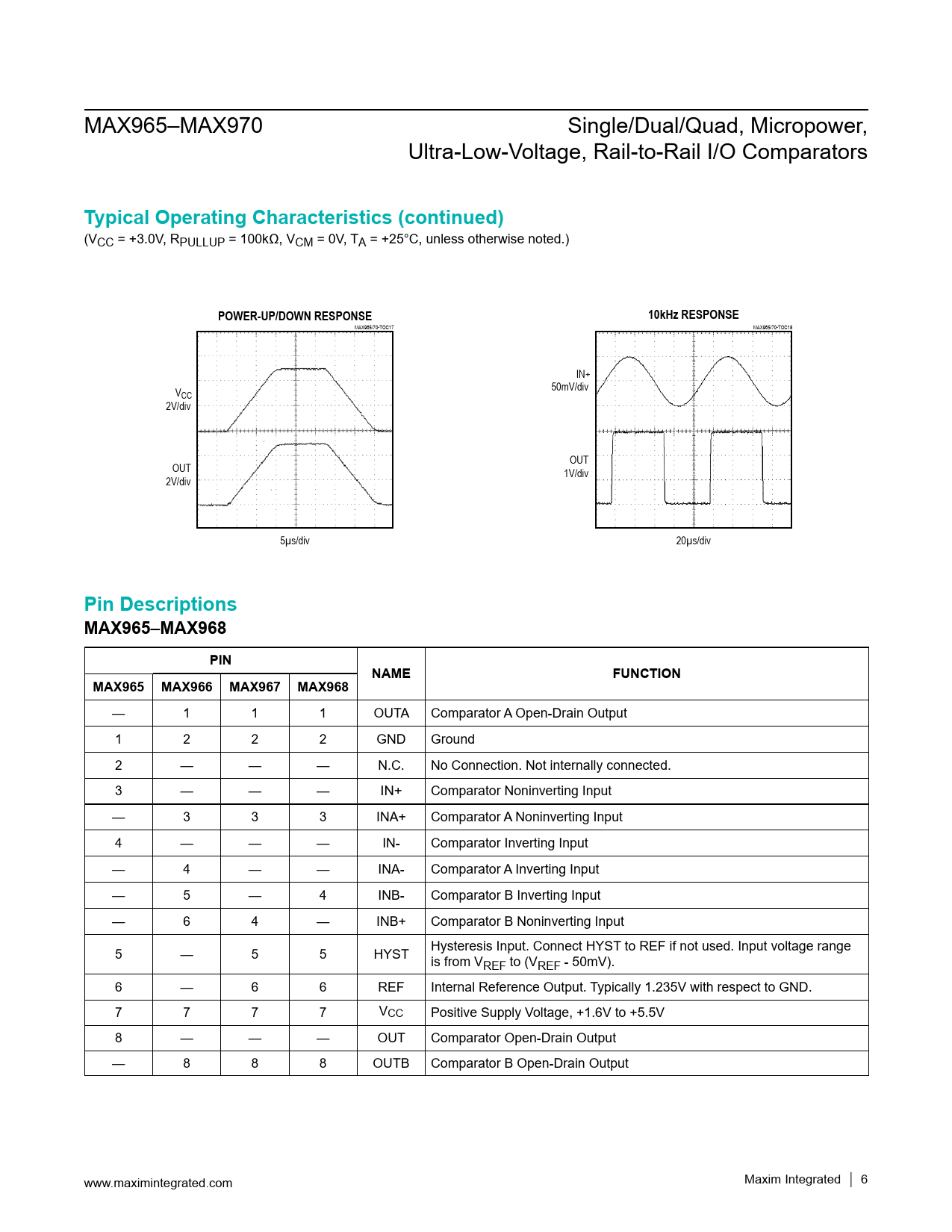

MAX965–MAX970 Single/Dual/Quad, Micropower, Ultra-Low-Voltage, Rail-to-Rail I/O Comparators
Typical Operating Characteristics (continued)
(VCC = +3.0V, RPULLUP = 100kΩ, VCM = 0V, TA = +25°C, unless otherwise noted.)
POWER-UP/DOWN RESPONSE 10kHz RESPONSE
MAX965/70-TOC17 MAX965/70-TOC18 IN+ V 50mV/div CC 2V/div OUT OUT 1V/div 2V/div 5µs/div 20µs/div
Pin Descriptions MAX965–MAX968 PIN NAME FUNCTION MAX965 MAX966 MAX967 MAX968
— 1 1 1 OUTA Comparator A Open-Drain Output 1 2 2 2 GND Ground 2 — — — N.C. No Connection. Not internally connected. 3 — — — IN+ Comparator Noninverting Input — 3 3 3 INA+ Comparator A Noninverting Input 4 — — — IN- Comparator Inverting Input — 4 — — INA- Comparator A Inverting Input — 5 — 4 INB- Comparator B Inverting Input — 6 4 — INB+ Comparator B Noninverting Input 5 — 5 5 HYST Hysteresis Input. Connect HYST to REF if not used. Input voltage range is from VREF to (VREF - 50mV). 6 — 6 6 REF Internal Reference Output. Typically 1.235V with respect to GND. 7 7 7 7 VCC Positive Supply Voltage, +1.6V to +5.5V 8 — — — OUT Comparator Open-Drain Output — 8 8 8 OUTB Comparator B Open-Drain Output www.maximintegrated.com Maxim Integrated │
6
