A Product Line of. ZXLD381. Block Diagram. Fig 1. ZXLD381 Block Diagram. Pin Description. Pin No. Name. Description. www.diodes.com
Línea de modelo para esta hoja de datos
Versión de texto del documento
A Product Line of
Diodes Incorporated
ZXLD381 Block Diagram
VCC
L1
ZXLD381
VOUT
Pulse
Control LED
1.5V
Con Coff Rsense
GND

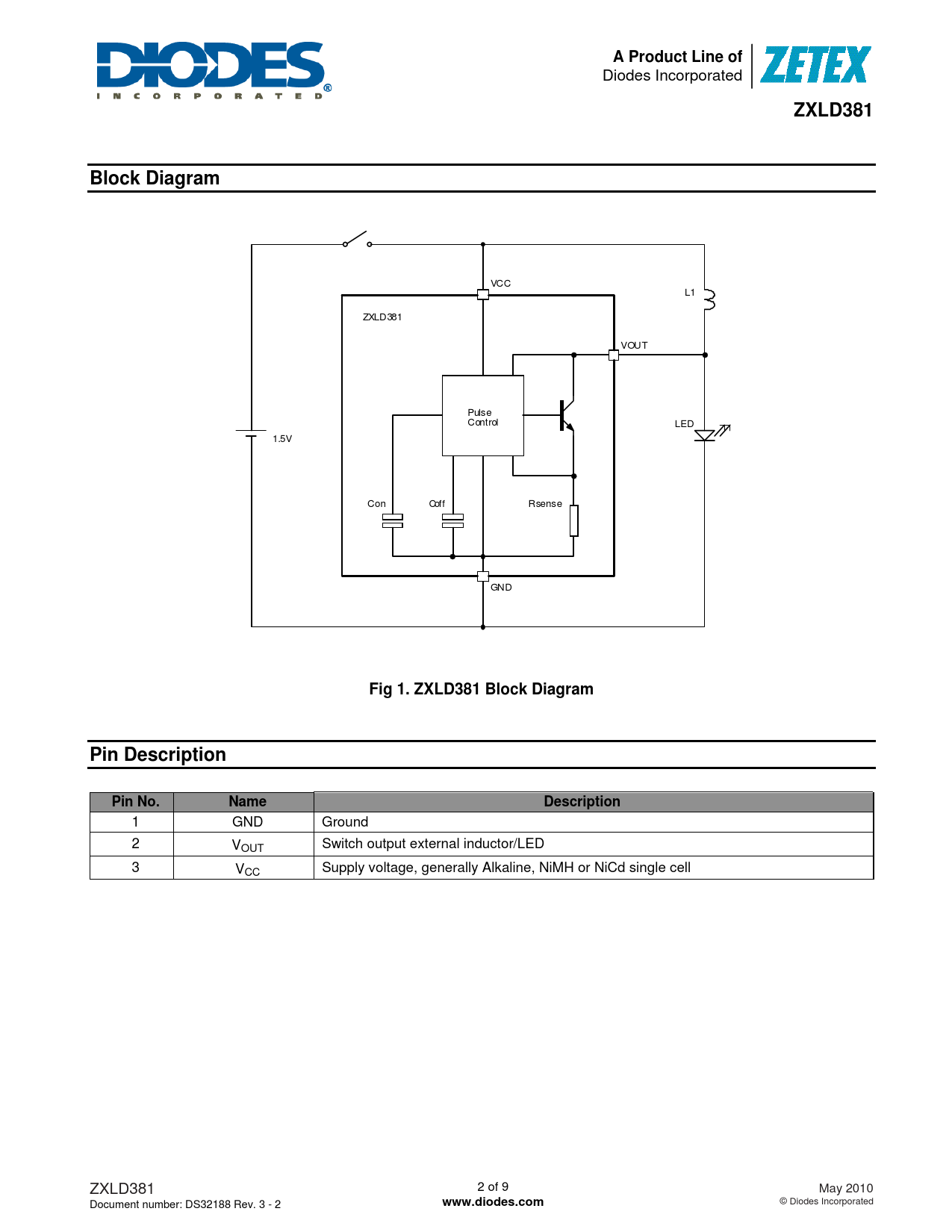

Fig 1. ZXLD381 Block Diagram Pin Description Pin No. Name Description
1 GND Ground 2 VOUT Switch output external inductor/LED 3 VCC Supply voltage, generally Alkaline, NiMH or NiCd single cell
ZXLD381 2 of 9 May 2010 Document number: DS32188 Rev. 3 - 2
www.diodes.com
© Diodes Incorporated
Diodes Incorporated
ZXLD381 Block Diagram
VCC
L1
ZXLD381
VOUT
Pulse
Control LED
1.5V
Con Coff Rsense
GND
Fig 1. ZXLD381 Block Diagram Pin Description Pin No. Name Description
1 GND Ground 2 VOUT Switch output external inductor/LED 3 VCC Supply voltage, generally Alkaline, NiMH or NiCd single cell
ZXLD381 2 of 9 May 2010 Document number: DS32188 Rev. 3 - 2
