Datasheet VS-50SQ060, VS-50SQ080, VS-50SQ100 (Vishay) - 6
| Fabricante | Vishay |
| Descripción | Schottky Rectifier, 5 A |
| Páginas / Página | 7 / 6 — Outline Dimensions. Axial DO-204AR. DIMENSIONS |
| Formato / tamaño de archivo | PDF / 122 Kb |
| Idioma del documento | Inglés |
Outline Dimensions. Axial DO-204AR. DIMENSIONS
Línea de modelo para esta hoja de datos
Versión de texto del documento
Outline Dimensions
www.vishay.com Vishay Semiconductors

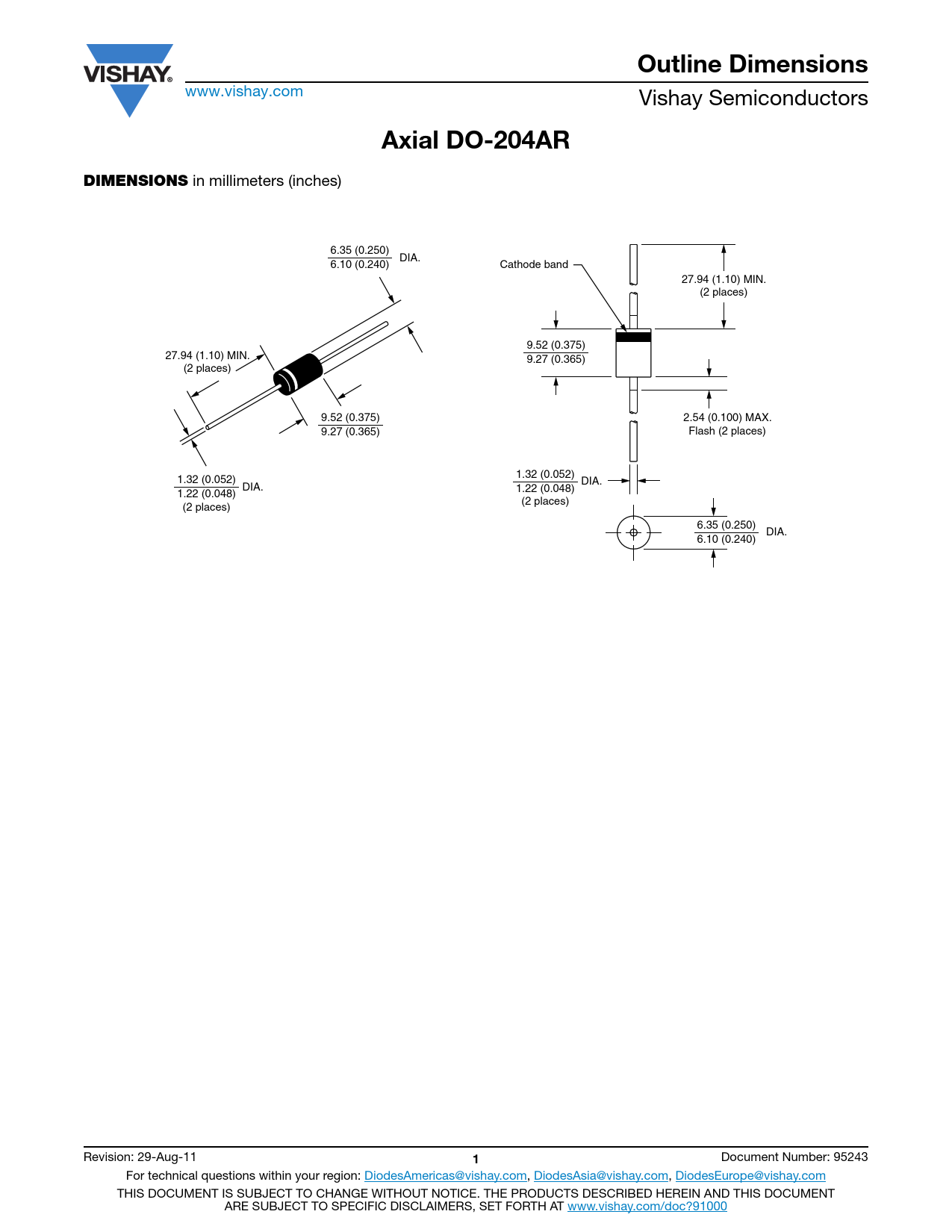

Axial DO-204AR DIMENSIONS
in millimeters (inches) 6.35 (0.250) DIA. 6.10 (0.240) Cathode band 27.94 (1.10) MIN. (2 places) 9.52 (0.375) 27.94 (1.10) MIN. 9.27 (0.365) (2 places) 9.52 (0.375) 2.54 (0.100) MAX. 9.27 (0.365) Flash (2 places) 1.32 (0.052) 1.32 (0.052) DIA. DIA. 1.22 (0.048) 1.22 (0.048) (2 places) (2 places) 6.35 (0.250) DIA. 6.10 (0.240) Revision: 29-Aug-11
