Datasheet TL072, TL072A, TL072B (STMicroelectronics)
| Fabricante | STMicroelectronics |
| Descripción | Low Noise JFET Dual Operational Amplifiers |
| Páginas / Página | 16 / 1 — TL072, TL072A, TL072B. Features. Related products. Description |
| Formato / tamaño de archivo | PDF / 515 Kb |
| Idioma del documento | Inglés |
TL072, TL072A, TL072B. Features. Related products. Description
Línea de modelo para esta hoja de datos
Versión de texto del documento

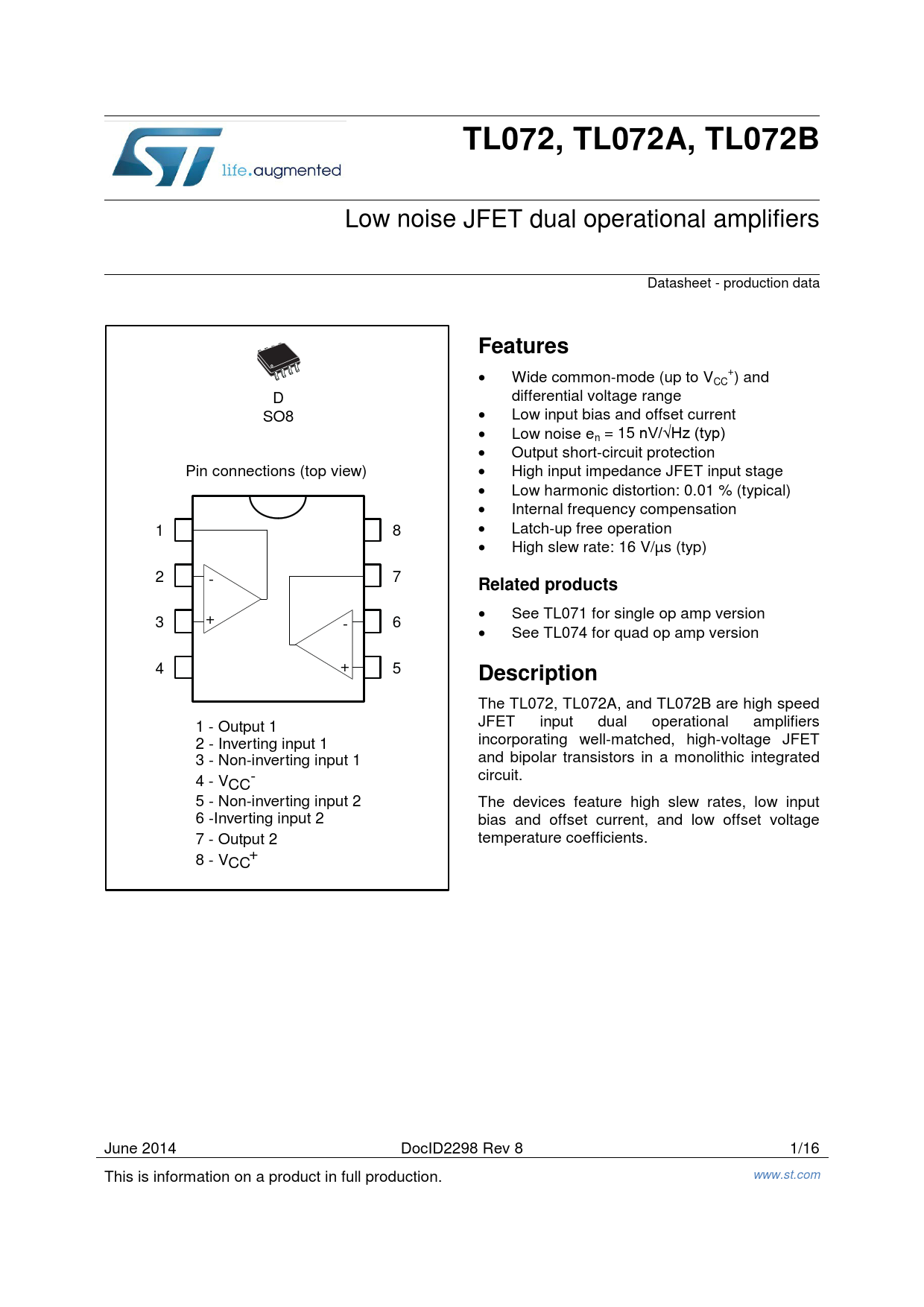

TL072, TL072A, TL072B
Low noise JFET dual operational amplifiers Datasheet - production data
Features
• Wide common-mode (up to V + CC ) and D differential voltage range SO8 • Low input bias and offset current • Low noise en = 15 nV/√Hz (typ) • Output short-circuit protection Pin connections (top view) • High input impedance JFET input stage • Low harmonic distortion: 0.01 % (typical) • Internal frequency compensation 1 8 • Latch-up free operation • High slew rate: 16 V/µs (typ) 2 7 -
Related products
• See TL071 for single op amp version 3 + - 6 • See TL074 for quad op amp version 4 + 5
Description
The TL072, TL072A, and TL072B are high speed JFET input dual operational amplifiers 1 - Output 1 incorporating well-matched, high-voltage JFET 2 - Inverting input 1 and bipolar transistors in a monolithic integrated 3 - Non-inverting input 1 - circuit. 4 - VCC 5 - Non-inverting input 2 The devices feature high slew rates, low input 6 -Inverting input 2 bias and offset current, and low offset voltage 7 - Output 2 temperature coefficients. 8 - V + CC June 2014 DocID2298 Rev 8 1/16 This is information on a product in full production. www.st.com Document Outline 1 Schematic diagram 2 Absolute maximum ratings and operating conditions 3 Electrical characteristics 4 Parameter measurement information 5 Typical application 6 Package information 6.1 SO8 package information 7 Ordering information 8 Revision history
