TPD4164K
Safe Operating Area
) A ( tn 2.0A er r u c 1.3A ing ind w ka e P 0 300V 450V Power supply voltage VBB (V) Figure10.1 SOA at Tj = 135 °C

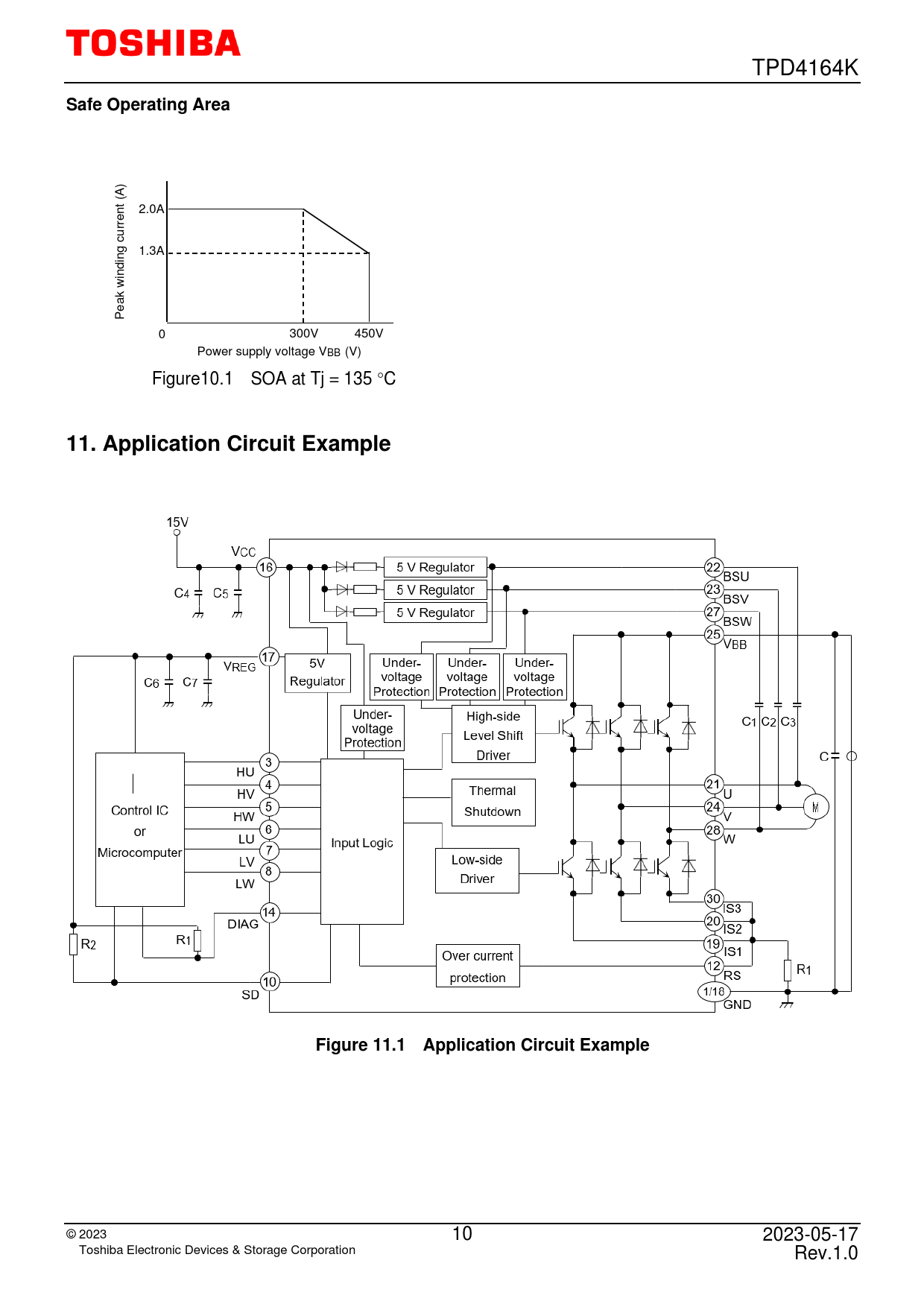

11. Application Circuit Example Figure 11.1 Application Circuit Example
