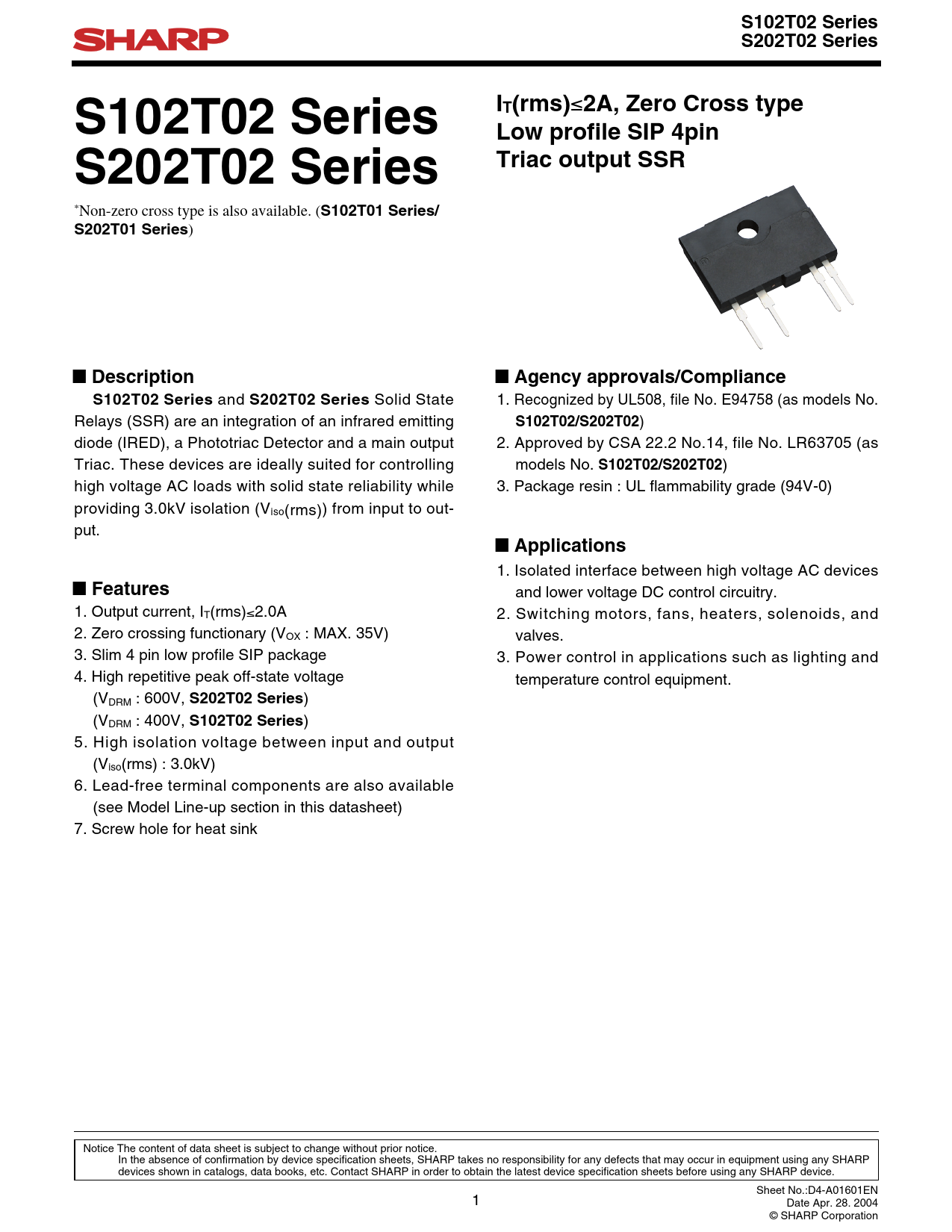

Datasheet S102T02 (Sharp)

S102T02 Series S202T02 Series S102T02 Series IT(rms)
≤
2A, Zero Cross type Low profile SIP 4pin S202T02 Series Triac output SSR
∗Non-zero cross type is also available. (
S102T01 Series/ S202T01 Series
) ■
Description
■
Agency approvals/Compliance S102T02 Series
and
S202T02 Series
Solid State 1. Recognized by UL508, file No. E94758 (as models No. Relays (SSR) are an integration of an infrared emitting
S102T02/S202T02
) diode (IRED), a Phototriac Detector and a main output 2. Approved by CSA 22.2 No.14, file No. LR63705 (as Triac. These devices are ideally suited for controlling models No.
S102T02/S202T02
) high voltage AC loads with solid state reliability while 3. Package resin : UL flammability grade (94V-0) providing 3.0kV isolation (Viso(rms)) from input to out- put. ■
Applications
1. Isolated interface between high voltage AC devices ■
Features
and lower voltage DC control circuitry. 1. Output current, IT(rms)≤2.0A 2. Switching motors, fans, heaters, solenoids, and 2. Zero crossing functionary (VOX : MAX. 35V) valves. 3. Slim 4 pin low profile SIP package 3. Power control in applications such as lighting and 4. High repetitive peak off-state voltage temperature control equipment. (VDRM : 600V,
S202T02 Series
) (VDRM : 400V,
S102T02 Series
) 5. High isolation voltage between input and output (Viso(rms) : 3.0kV) 6. Lead-free terminal components are also available (see Model Line-up section in this datasheet) 7. Screw hole for heat sink Notice The content of data sheet is subject to change without prior notice. In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device. Sheet No.:D4-A01601EN 1 Date Apr. 28. 2004 © SHARP Corporation
