Datasheet 2SAR586J (Rohm)
| Fabricante | Rohm |
| Descripción | PNP -5.0A -80V Power Transistor |
| Páginas / Página | 9 / 1 — Outline. Features. Inner circuit. Application. Packaging specifications. … |
| Formato / tamaño de archivo | PDF / 1.5 Mb |
| Idioma del documento | Inglés |
Outline. Features. Inner circuit. Application. Packaging specifications. 20190423 - Rev.001
Línea de modelo para esta hoja de datos
Versión de texto del documento

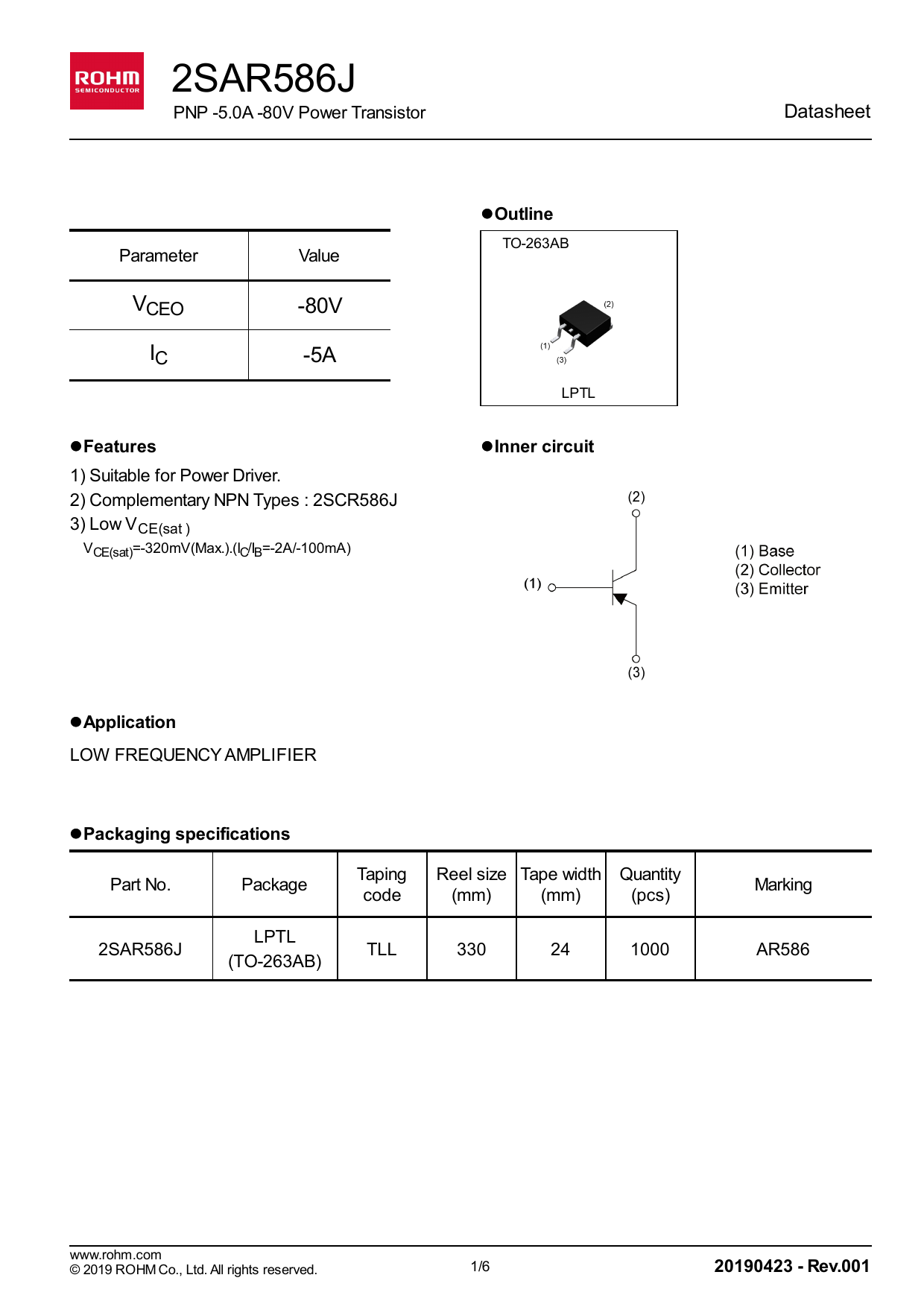

2SAR586J PNP -5.0A -80V Power Transistor Datasheet l
Outline
TO-263AB Parameter Value VCEO -80V IC -5A LPTL l
Features
l
Inner circuit
1) Suitable for Power Driver. 2) Complementary NPN Types : 2SCR586J 3) Low VCE(sat ) VCE(sat)=-320mV(Max.).(IC/IB=-2A/-100mA) l
Application
LOW FREQUENCY AMPLIFIER l
Packaging specifications
Taping Reel size Tape width Quantity Part No. Package Marking code (mm) (mm) (pcs) LPTL 2SAR586J TLL 330 24 1000 AR586 (TO-263AB) www.rohm.com © 2019 ROHM Co., Ltd. All rights reserved. 1/6
20190423 - Rev.001
Outline
TO-263AB Parameter Value VCEO -80V IC -5A LPTL l
Features
l
Inner circuit
1) Suitable for Power Driver. 2) Complementary NPN Types : 2SCR586J 3) Low VCE(sat ) VCE(sat)=-320mV(Max.).(IC/IB=-2A/-100mA) l
Application
LOW FREQUENCY AMPLIFIER l
Packaging specifications
Taping Reel size Tape width Quantity Part No. Package Marking code (mm) (mm) (pcs) LPTL 2SAR586J TLL 330 24 1000 AR586 (TO-263AB) www.rohm.com © 2019 ROHM Co., Ltd. All rights reserved. 1/6
20190423 - Rev.001
