Datasheet X60003C-41 (Renesas) - 3

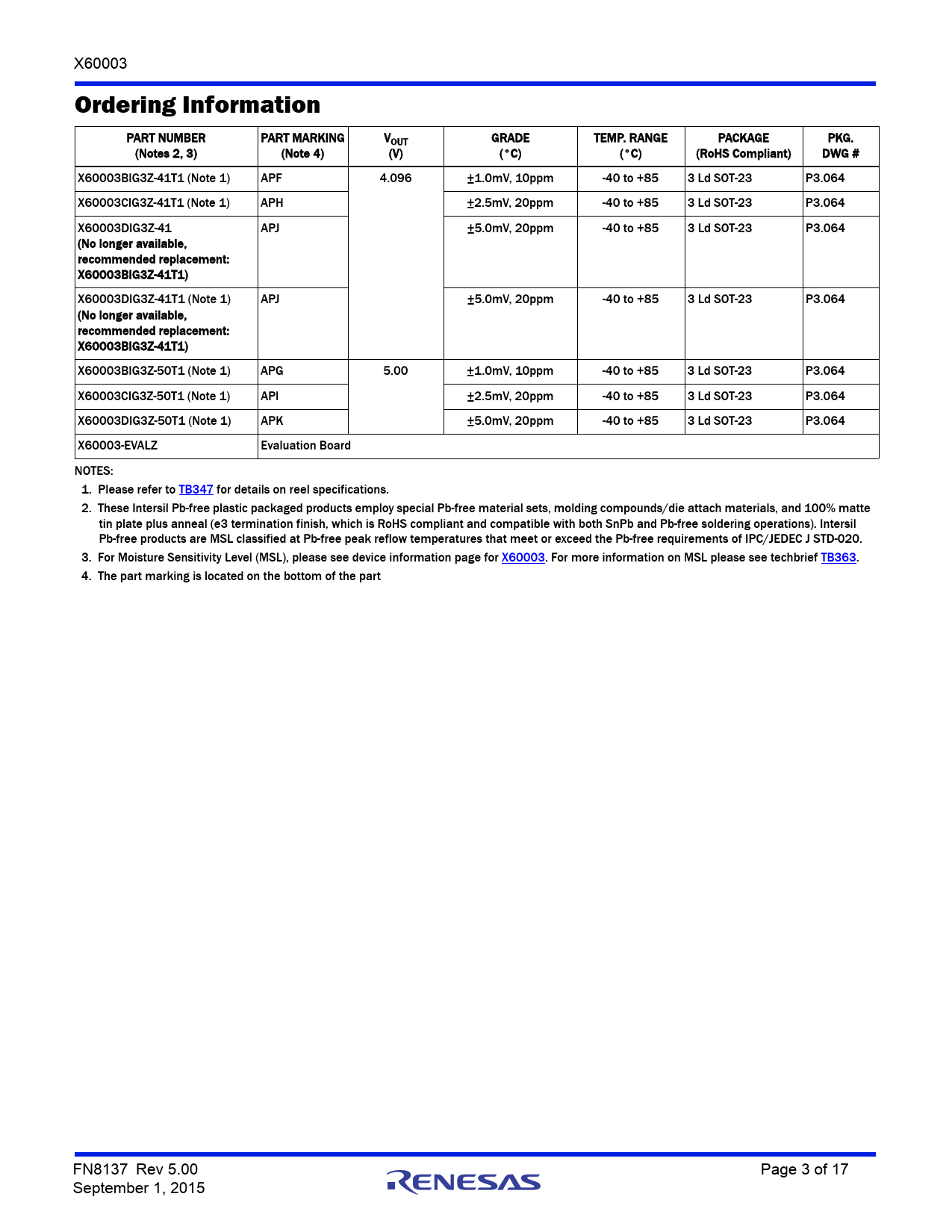

link to page 3 link to page 3 link to page 3 link to page 3 link to page 3 link to page 3 link to page 3 link to page 3 link to page 3 X60003 Ordering Information PART NUMBER PART MARKING VOUT GRADE TEMP. RANGE PACKAGE PKG. (Notes 2, 3) (Note 4) (V) (°C) (°C) (RoHS Compliant) DWG # X60003BIG3Z-41T1 (Note 1) APF 4.096 ±1.0mV, 10ppm -40 to +85 3 Ld SOT-23 P3.064 X60003CIG3Z-41T1 (Note 1) APH ±2.5mV, 20ppm -40 to +85 3 Ld SOT-23 P3.064 X60003DIG3Z-41 APJ ±5.0mV, 20ppm -40 to +85 3 Ld SOT-23 P3.064 (No longer available, recommended replacement: X60003BIG3Z-41T1) X60003DIG3Z-41T1 (Note 1) APJ ±5.0mV, 20ppm -40 to +85 3 Ld SOT-23 P3.064 (No longer available, recommended replacement: X60003BIG3Z-41T1) X60003BIG3Z-50T1 (Note 1) APG 5.00 ±1.0mV, 10ppm -40 to +85 3 Ld SOT-23 P3.064 X60003CIG3Z-50T1 (Note 1) API ±2.5mV, 20ppm -40 to +85 3 Ld SOT-23 P3.064 X60003DIG3Z-50T1 (Note 1) APK ±5.0mV, 20ppm -40 to +85 3 Ld SOT-23 P3.064 X60003-EVALZ Evaluation Board NOTES: 1. Please refer to TB347 for details on reel specifications. 2. These Intersil Pb-free plastic packaged products employ special Pb-free material sets, molding compounds/die attach materials, and 100% matte tin plate plus anneal (e3 termination finish, which is RoHS compliant and compatible with both SnPb and Pb-free soldering operations). Intersil Pb-free products are MSL classified at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020. 3. For Moisture Sensitivity Level (MSL), please see device information page for X60003. For more information on MSL please see techbrief TB363. 4. The part marking is located on the bottom of the part FN8137 Rev 5.00 Page 3 of 17 September 1, 2015
