Datasheet CM2400HCB-34N (Mitsubishi Electric) - 5
| Fabricante | Mitsubishi Electric |
| Descripción | 4th-Version HVIGBT (High Voltage Insulated Gate Bipolar Transistor) Modules |
| Páginas / Página | 7 / 5 — MITSUBISHI HVIGBT MODULES. CM2400HCB-34N. HIGH POWER SWITCHING USE. … |
| Formato / tamaño de archivo | PDF / 97 Kb |
| Idioma del documento | Inglés |

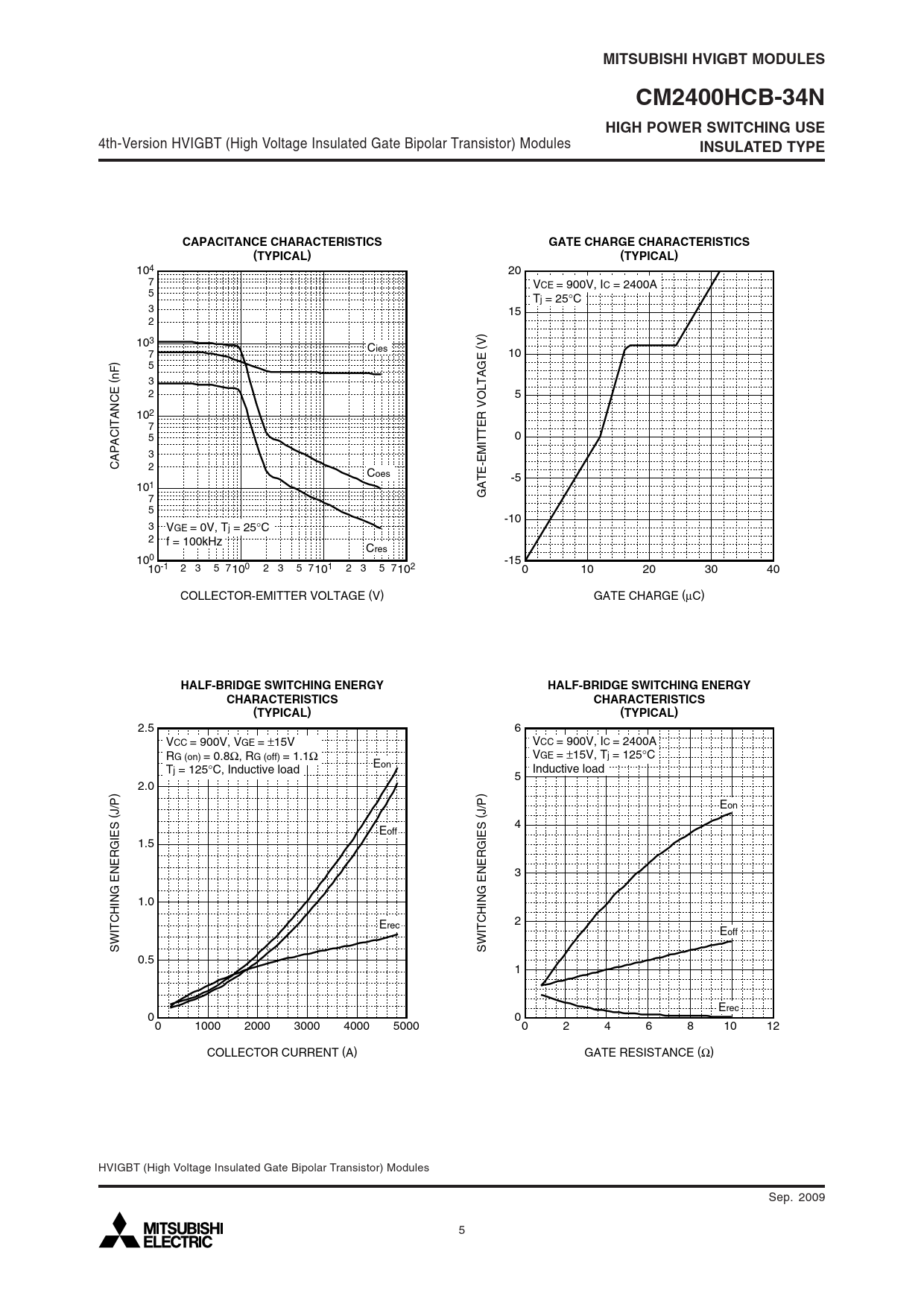

MITSUBISHI HVIGBT MODULES. CM2400HCB-34N. HIGH POWER SWITCHING USE. INSULATED TYPE. CAPACITANCE CHARACTERISTICS
Línea de modelo para esta hoja de datos
Versión de texto del documento
MITSUBISHI HVIGBT MODULES CM2400HCB-34N HIGH POWER SWITCHING USE
4th-Version HVIGBT (High Voltage Insulated Gate Bipolar Transistor) Modules
INSULATED TYPE CAPACITANCE CHARACTERISTICS GATE CHARGE CHARACTERISTICS (TYPICAL) (TYPICAL)
104 20 7 VCE = 900V, IC = 2400A 5 Tj = 25°C 3 15 2 ) 103 ( V Cies 7 10 ) 5 ( nF 3 2 5 102 7 5 0 3 CAPACITANCE 2 Coes -5 101 GATE-EMITTER VOLTAGE 7 5 -10 3 VGE = 0V, Tj = 25°C 2 f = 100kHz Cres 100 -15 100 10-1 2 3 5 7 101 102 2 3 5 7 2 3 5 7 0 10 20 30 40 COLLECTOR-EMITTER VOLTAGE (V) GATE CHARGE (µC)
