NOT RECOMMENDED FOR NEW DESIGN. USE AP431S. AP431i. Performance Characteristics. Pulse Response. www.diodes.com
Línea de modelo para esta hoja de datos
Versión de texto del documento
NOT RECOMMENDED FOR NEW DESIGN USE AP431S AP431i Performance Characteristics
(Cont.)

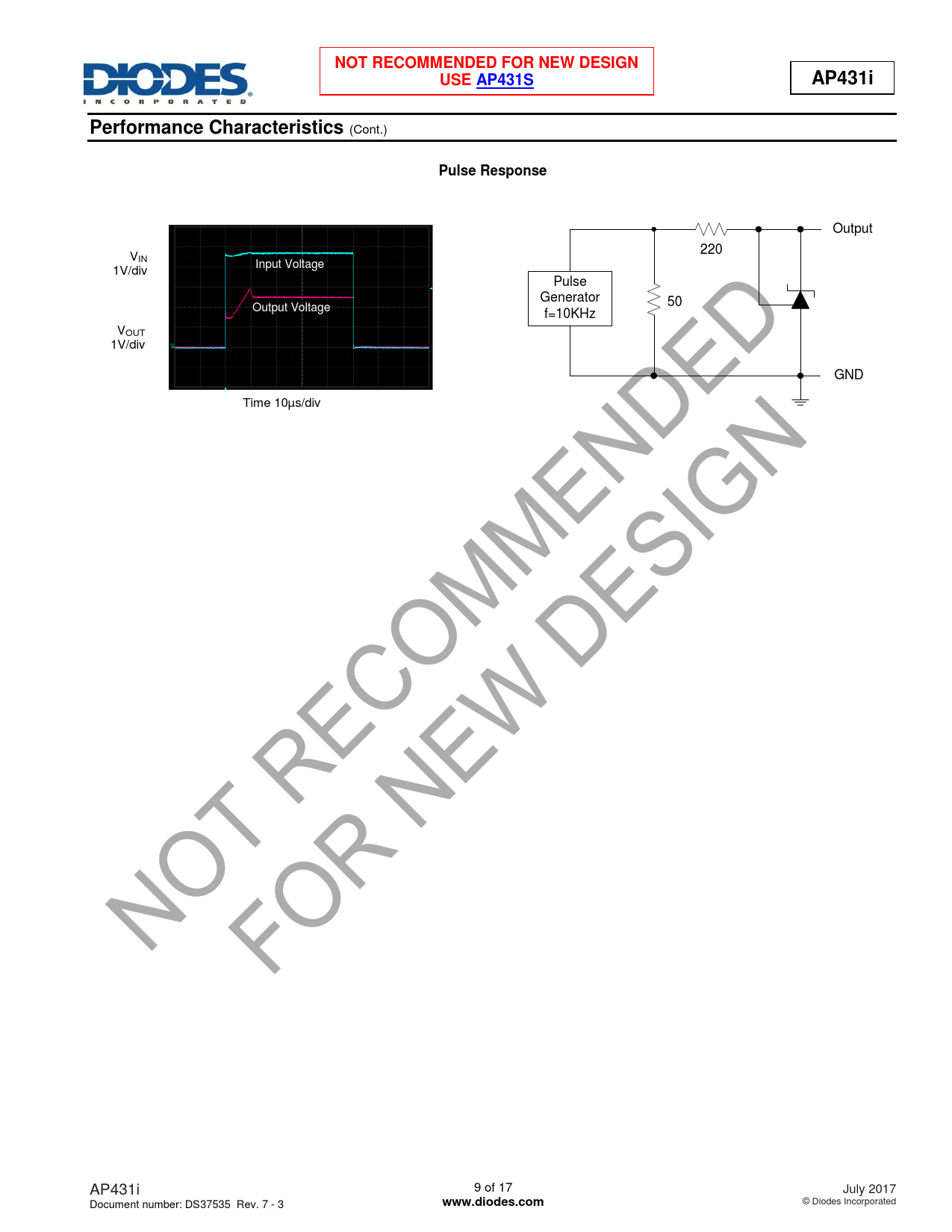

Pulse Response
Output 220 V IN Input Voltage 1V/div Pulse Generator 50 Output Voltage f=10KHz V OUT 1V/div GND Time 10µs/div AP431i 9 of 17 July 2017 Document number: DS37535 Rev. 7 - 3
www.diodes.com
© Diodes Incorporated
