Datasheet AH4930Q (Diodes) - 2
| Fabricante | Diodes |
| Descripción | Automotive 3D Magnetic Linear Hall Sensor with I2C Interface |
| Páginas / Página | 23 / 2 — AH4930Q. Typical Applications Circuit. AH 4. 4 9. 9 3. 3 0. MCU. Pin … |
| Formato / tamaño de archivo | PDF / 1.1 Mb |
| Idioma del documento | Inglés |
AH4930Q. Typical Applications Circuit. AH 4. 4 9. 9 3. 3 0. MCU. Pin Descriptions. Package: SOT26 (Type A1). Pin Number. Pin Name. I/O
Línea de modelo para esta hoja de datos
Versión de texto del documento

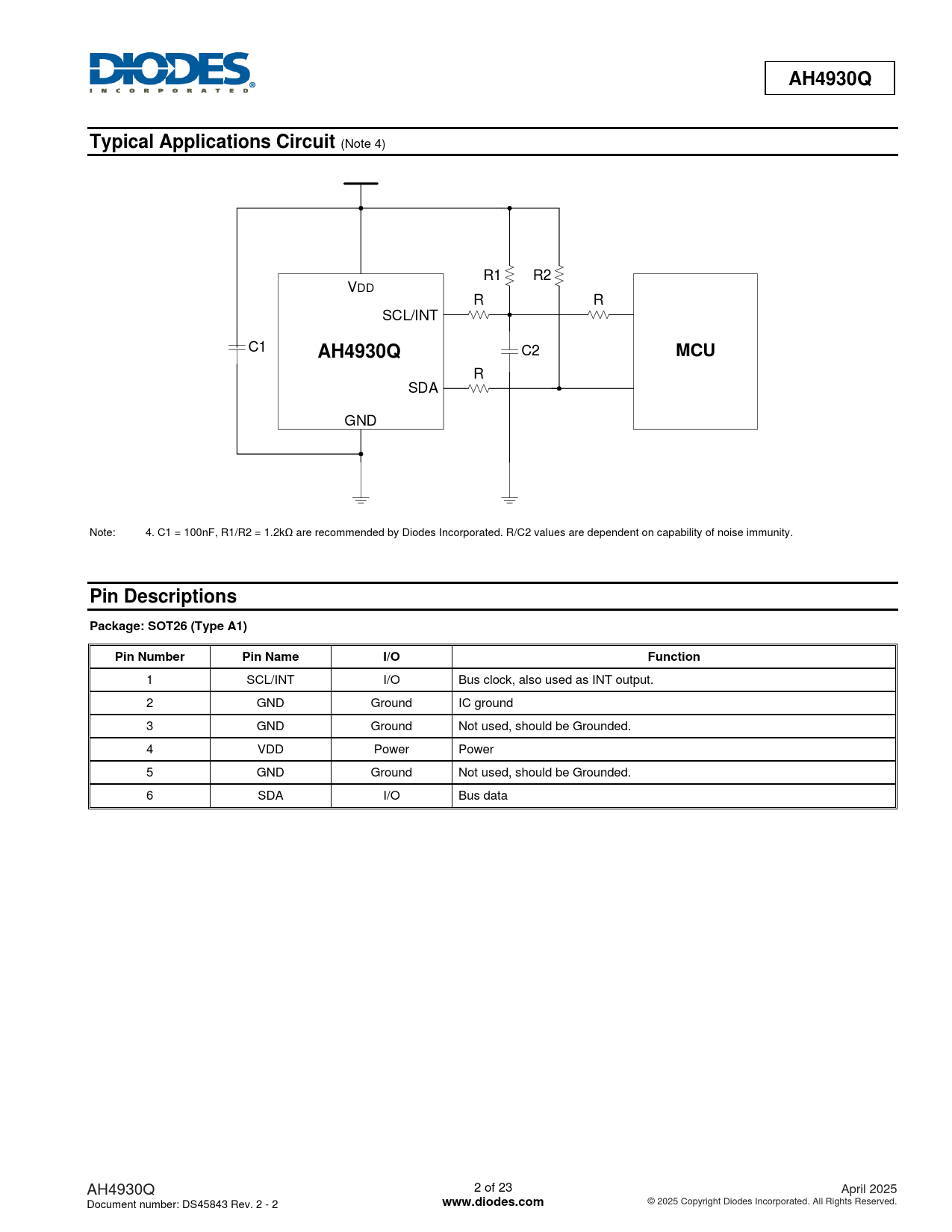

AH4930Q Typical Applications Circuit
(Note 4) R1 R2 VDD R R SCL/INT C1
AH AH 4 4 9 9 3 3 0 0Q
C2
MCU
R SDA GND Note: 4. C1 = 100nF, R1/R2 = 1.2kΩ are recommended by Diodes Incorporated. R/C2 values are dependent on capability of noise immunity.
Pin Descriptions Package: SOT26 (Type A1) Pin Number Pin Name I/O Function
1 SCL/INT I/O Bus clock, also used as INT output. 2 GND Ground IC ground 3 GND Ground Not used, should be Grounded. 4 VDD Power Power 5 GND Ground Not used, should be Grounded. 6 SDA I/O Bus data AH4930Q 2 of 23 April 2025 Document number: DS45843 Rev. 2 - 2
www.diodes.com
© 2025 Copyright Diodes Incorporated. All Rights Reserved.
