Datasheet OPV (TT Electronics) - 6
| Fabricante | TT Electronics |
| Descripción | Vertical Cavity Surface Emitting Laser |
| Páginas / Página | 6 / 6 — Vertical Cavity Surface Emitting Laser. OPV314. OPV314Y. Pin. Connection |
| Formato / tamaño de archivo | PDF / 490 Kb |
| Idioma del documento | Inglés |

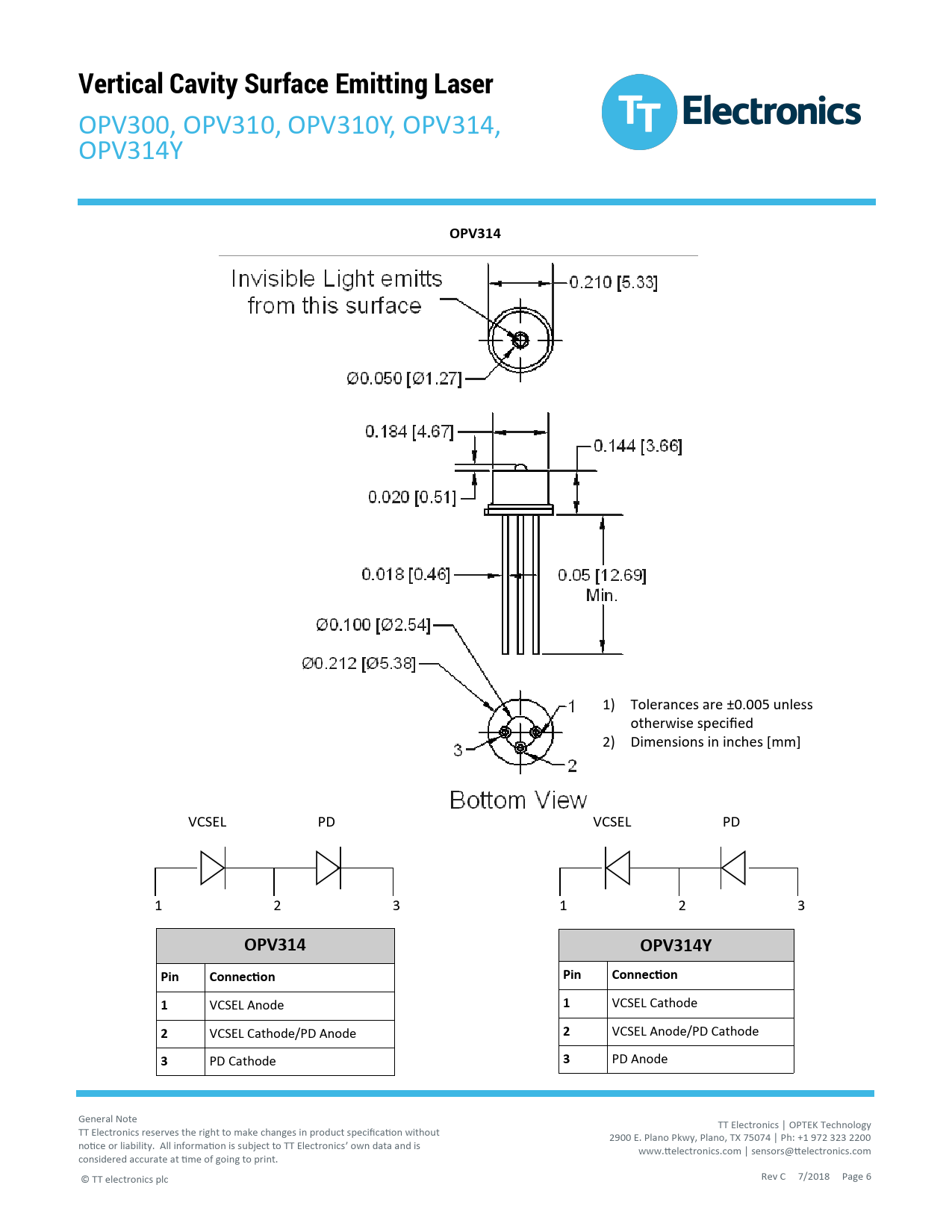

Vertical Cavity Surface Emitting Laser. OPV314. OPV314Y. Pin. Connection
Línea de modelo para esta hoja de datos
Versión de texto del documento
Vertical Cavity Surface Emitting Laser
OPV300, OPV310, OPV310Y, OPV314, OPV314Y
OPV314
1) Tolerances are ±0.005 unless otherwise specified 2) Dimensions in inches [mm] VCSEL PD VCSEL PD 1 2 3 1 2 3
OPV314 OPV314Y Pin Connection Pin Connection 1
VCSEL Anode
1
VCSEL Cathode
2
VCSEL Cathode/PD Anode
2
VCSEL Anode/PD Cathode
3
PD Cathode
3
PD Anode General Note TT Electronics | OPTEK Technology TT Electronics reserves the right to make changes in product specification without 2900 E. Plano Pkwy, Plano, TX 75074 | Ph: +1 972 323 2200 notice or liability. All information is subject to TT Electronics’ own data and is www.ttelectronics.com | sensors@ttelectronics.com considered accurate at time of going to print. © TT electronics plc Rev C 7/2018 Page 6
