PACKAGE OUTLINE. Hermetically sealed glass package; axial leaded; 2 leads. SOD27. DIMENSIONS (mm are the original dimensions)
Línea de modelo para esta hoja de datos
Versión de texto del documento

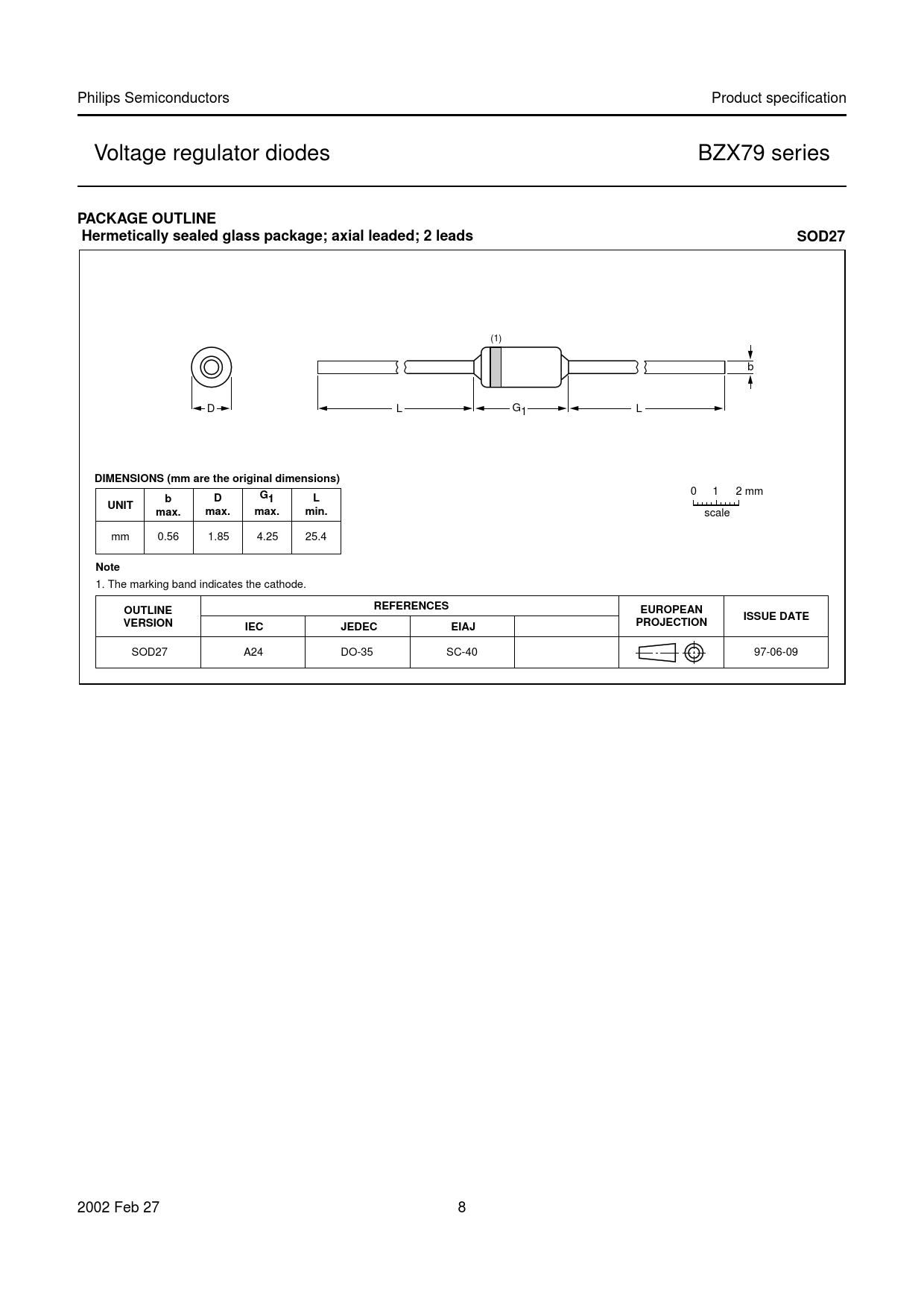

Philips Semiconductors Product specification Voltage regulator diodes BZX79 series
PACKAGE OUTLINE Hermetically sealed glass package; axial leaded; 2 leads SOD27
(1) b D L G1 L
DIMENSIONS (mm are the original dimensions)
0 1 2 mm
b D G1 L UNIT max. max. max. min.
scale mm 0.56 1.85 4.25 25.4
Note
1. The marking band indicates the cathode.
REFERENCES OUTLINE EUROPEAN ISSUE DATE VERSION PROJECTION IEC JEDEC EIAJ
SOD27 A24 DO-35 SC-40 97-06-09 2002 Feb 27 8 Document Outline FEATURES APPLICATIONS DESCRIPTION LIMITING VALUES ELECTRICAL CHARACTERISTICS THERMAL CHARACTERISTICS GRAPHICAL DATA PACKAGE OUTLINE SOD27 DATA SHEET STATUS DEFINITIONS DISCLAIMERS
