Datasheet RV2C010UN (Rohm) - 7
| Fabricante | Rohm |
| Descripción | 20V 1A Nch Power MOSFET |
| Páginas / Página | 13 / 7 — RV2C010UN. Electrical characteristic curves. 20160905 - Rev.004 |
| Formato / tamaño de archivo | PDF / 1.5 Mb |
| Idioma del documento | Inglés |
RV2C010UN. Electrical characteristic curves. 20160905 - Rev.004
Línea de modelo para esta hoja de datos
Versión de texto del documento
RV2C010UN
Datasheet l
Electrical characteristic curves

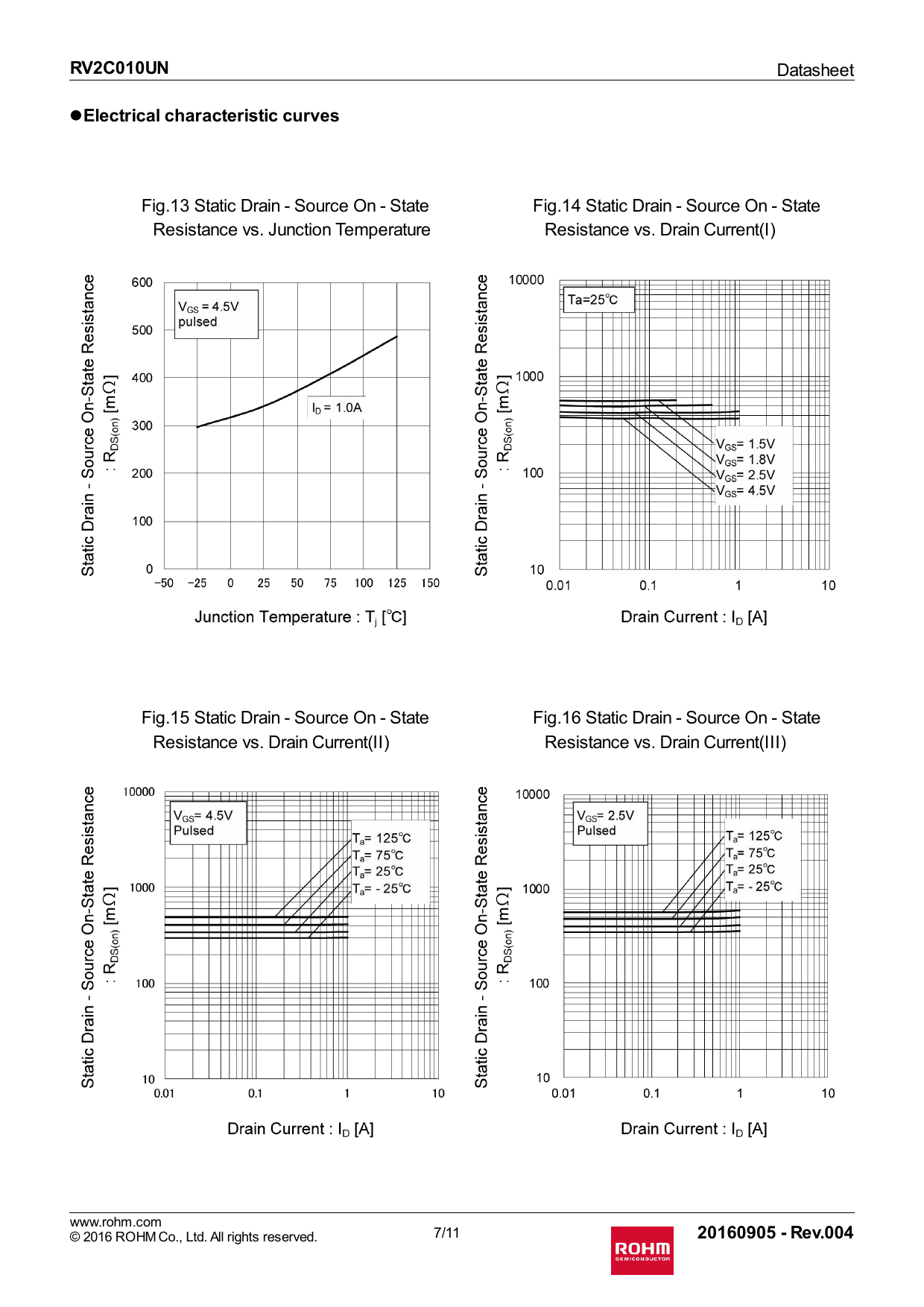

Fig.13 Static Drain - Source On - State Fig.14 Static Drain - Source On - State Resistance vs. Junction Temperature Resistance vs. Drain Current(I) Fig.15 Static Drain - Source On - State Fig.16 Static Drain - Source On - State Resistance vs. Drain Current(II) Resistance vs. Drain Current(III) www.rohm.com © 2016 ROHM Co., Ltd. All rights reserved. 7/11
20160905 - Rev.004
Datasheet l
Electrical characteristic curves
Fig.13 Static Drain - Source On - State Fig.14 Static Drain - Source On - State Resistance vs. Junction Temperature Resistance vs. Drain Current(I) Fig.15 Static Drain - Source On - State Fig.16 Static Drain - Source On - State Resistance vs. Drain Current(II) Resistance vs. Drain Current(III) www.rohm.com © 2016 ROHM Co., Ltd. All rights reserved. 7/11
20160905 - Rev.004
