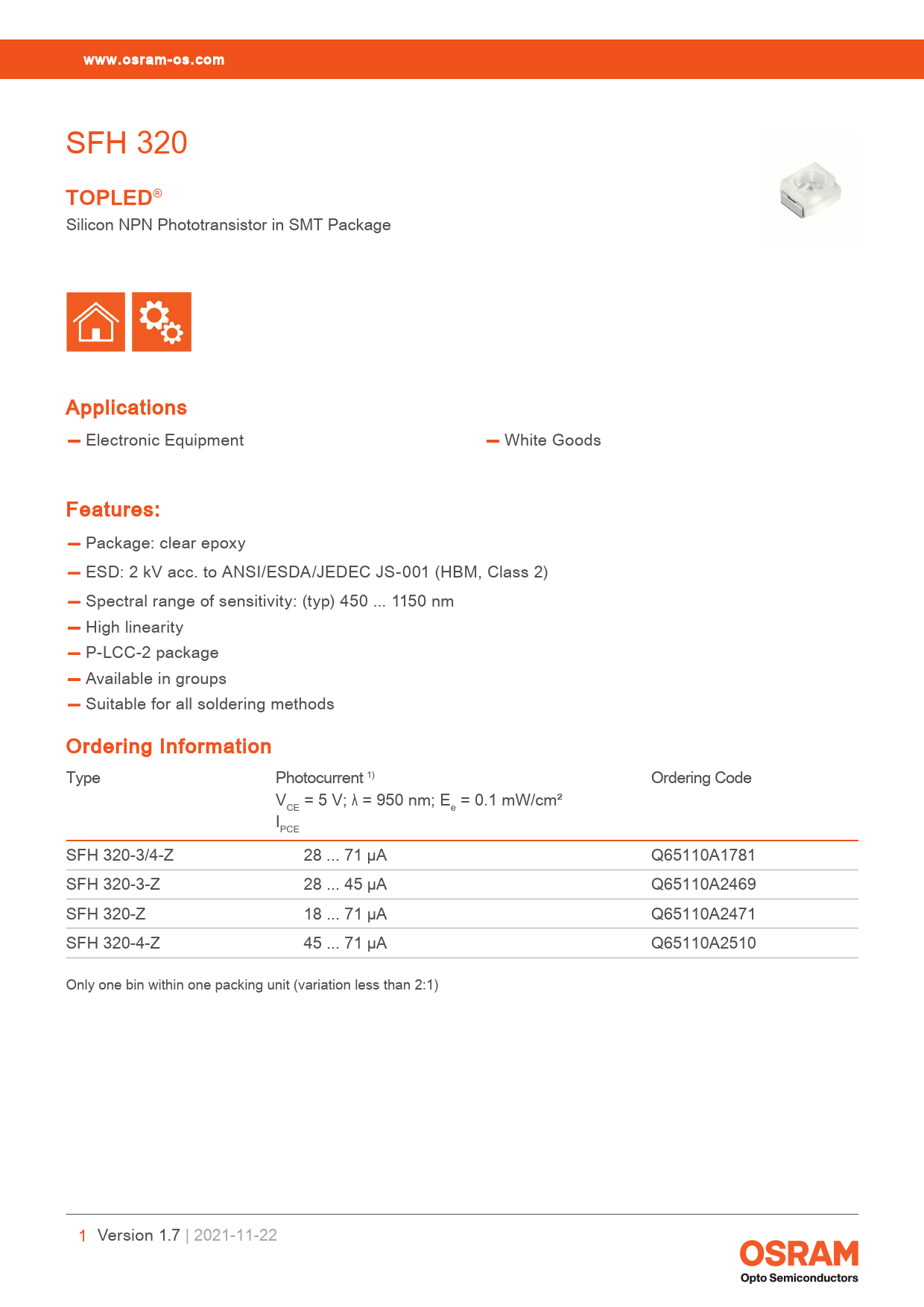

link to page 16 Produktdatenblatt | Version 1.1 www.osram-os.com SFH 320 SFH 320 TOPLED® Silicon NPN Phototransistor in SMT Package Applications Electronic Equipment White Goods Features: Package: clear epoxy ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2) Spectral range of sensitivity: (typ) 450 ... 1150 nm High linearity P-LCC-2 package Available in groups Suitable for al soldering methods Ordering Information Type Photocurrent 1) Ordering Code V = 5 V; λ = 950 nm; E = 0.1 mW/cm² CE e IPCE SFH 320-3/4-Z 28 ... 71 µA Q65110A1781 SFH 320-3-Z 28 ... 45 µA Q65110A2469 SFH 320-Z 18 ... 71 µA Q65110A2471 SFH 320-4-Z 45 ... 71 µA Q65110A2510 Only one bin within one packing unit (variation less than 2:1) 1 Version 1.7 | 2021-11-22
