Datasheet PT334-6C (Everlight) - 3
| Fabricante | Everlight |
| Descripción | 5mm Phototransistor T-1 3/4 |
| Páginas / Página | 7 / 3 — PT334-6C. Electro-Optical Characteristics (Ta=25. Parameter Symbol. … |
| Formato / tamaño de archivo | PDF / 156 Kb |
| Idioma del documento | Inglés |

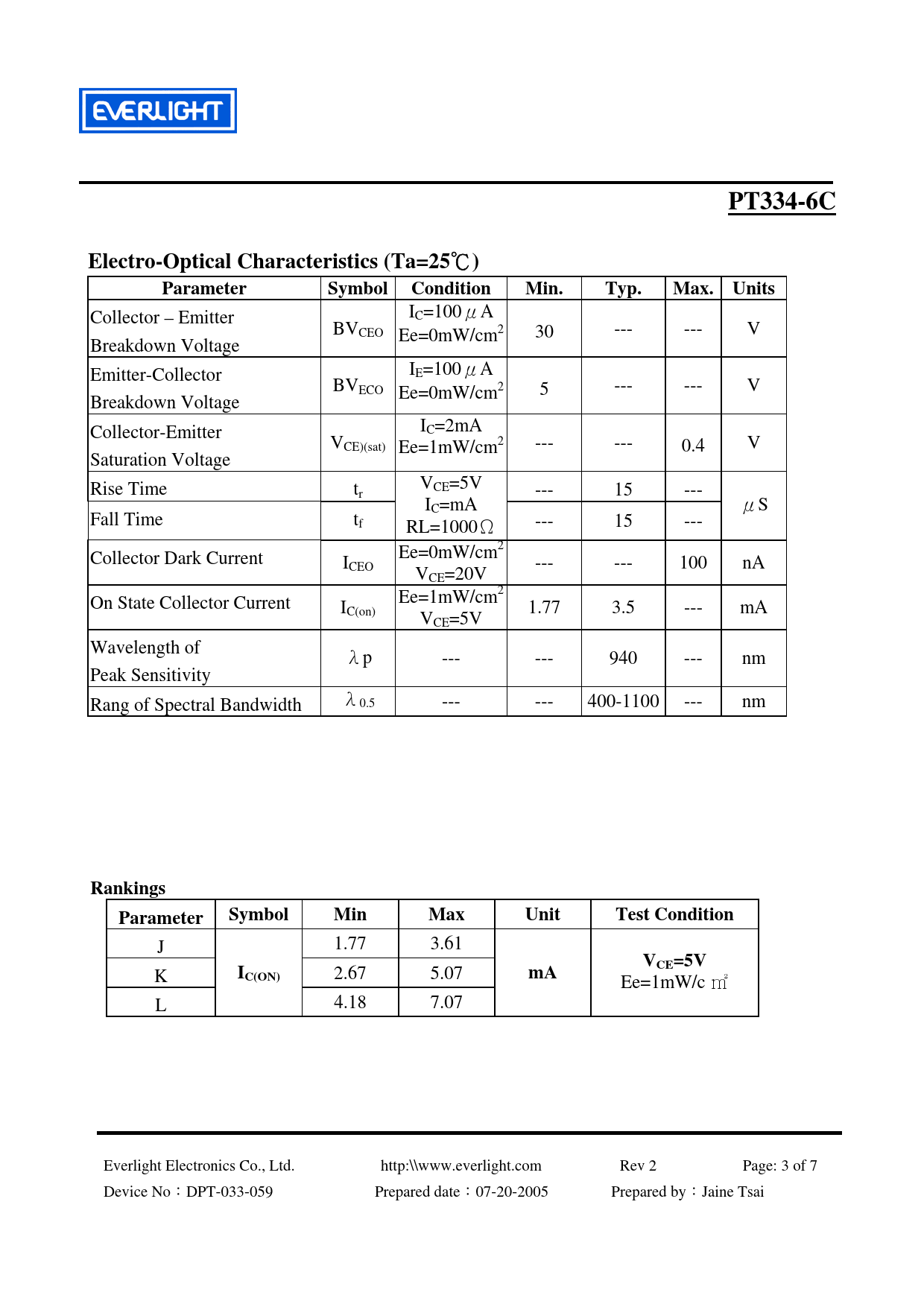

PT334-6C. Electro-Optical Characteristics (Ta=25. Parameter Symbol. Condition. Min. Typ. Max. Units. Rankings. Parameter. Symbol. Min. Max. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
PT334-6C Electro-Optical Characteristics (Ta=25
℃
) Parameter Symbol Condition Min. Typ. Max. Units
Collector – Emitter IC=100μA BVCEO Ee=0mW/cm2 30 --- --- V Breakdown Voltage Emitter-Collector IE=100μA BVECO Ee=0mW/cm2 5 --- --- V Breakdown Voltage Collector-Emitter IC=2mA VCE)(sat) Ee=1mW/cm2 --- --- 0.4 V Saturation Voltage Rise Time t VCE=5V r --- 15 --- IC=mA μS Fall Time tf RL=1000Ω --- 15 --- Collector Dark Current Ee=0mW/cm2 ICEO --- --- 100 nA VCE=20V On State Collector Current Ee=1mW/cm2 IC(on) 1.77 3.5 --- mA VCE=5V Wavelength of λp --- --- 940 --- nm Peak Sensitivity Rang of Spectral Bandwidth λ0.5 --- --- 400-1100 --- nm
Rankings Parameter Symbol Min Max Unit Test Condition
J 1.77 3.61
VCE=5V
K
IC(ON)
2.67 5.07
mA
Ee=1mW/c ㎡ L 4.18 7.07 Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 3 of 7 Device No：DPT-033-059 Prepared date：07-20-2005 Prepared by：Jaine Tsai
℃
