Datasheet BD909 (STMicroelectronics)
| Fabricante | STMicroelectronics |
| Descripción | Complementary Silicon Power Transistors |
| Páginas / Página | 6 / 1 — BD909/911. BD910/912. DESCRIPTION. TO-220. INTERNAL SCHEMATIC DIAGRAM. … |
| Formato / tamaño de archivo | PDF / 1.2 Mb |
| Idioma del documento | Inglés |

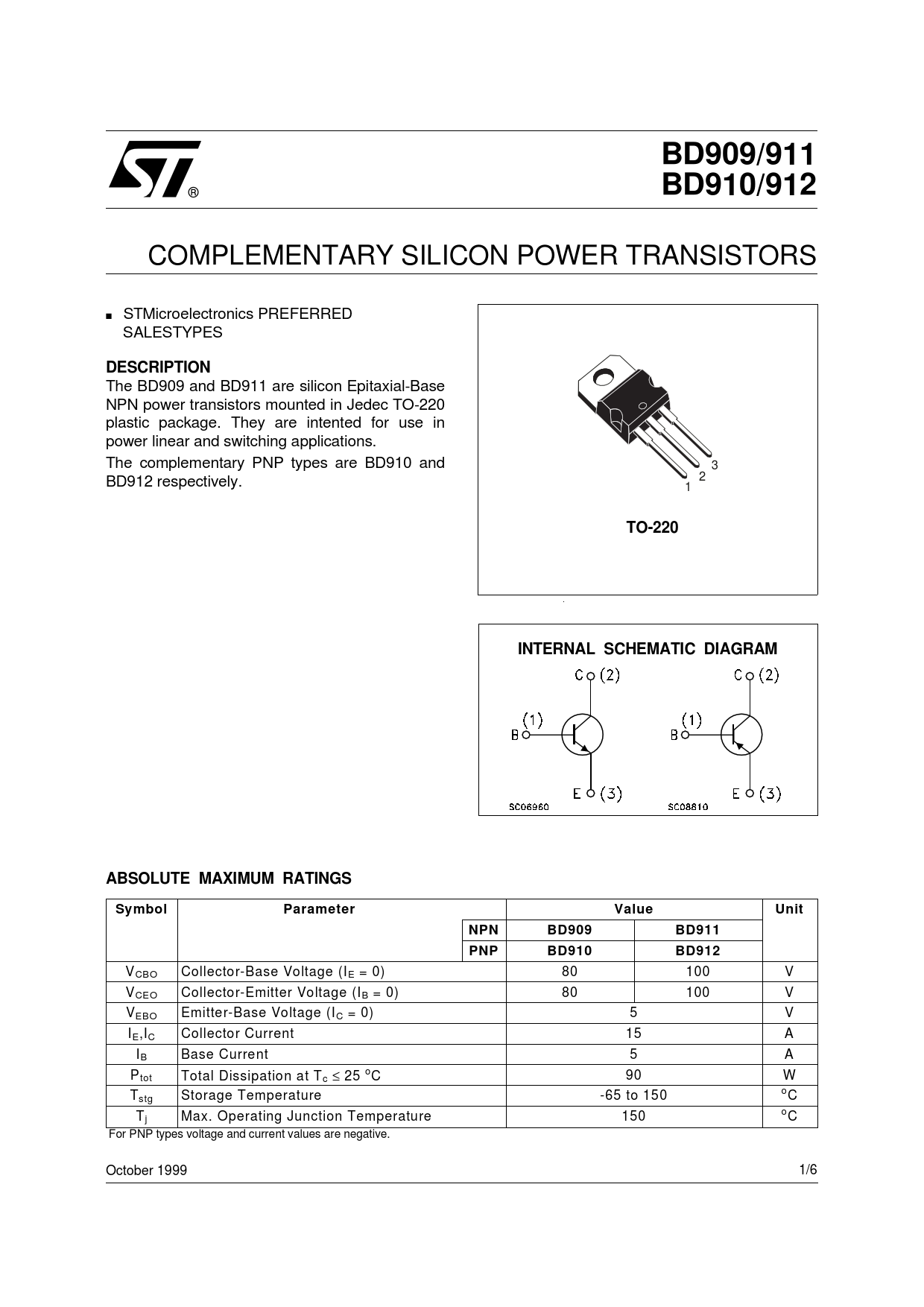

BD909/911. BD910/912. DESCRIPTION. TO-220. INTERNAL SCHEMATIC DIAGRAM. ABSOLUTE MAXIMUM RATINGS. Symbol. Parameter. Value. Unit. NPN. BD909
Línea de modelo para esta hoja de datos
Versión de texto del documento
BD909/911
®
BD910/912
COMPLEMENTARY SILICON POWER TRANSISTORS ■ STMicroelectronics PREFERRED SALESTYPES
DESCRIPTION
The BD909 and BD911 are silicon Epitaxial-Base NPN power transistors mounted in Jedec TO-220 plastic package. They are intented for use in power linear and switching applications. The complementary PNP types are BD910 and 3 BD912 respectively. 2 1
TO-220 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol Parameter Value Unit NPN BD909 BD911 PNP BD910 BD912
VCBO Collector-Base Voltage (IE = 0) 80 100 V VCEO Collector-Emitter Voltage (IB = 0) 80 100 V VEBO Emitter-Base Voltage (IC = 0) 5 V IE,IC Collector Current 15 A IB Base Current 5 A Ptot Total Dissipation at Tc ≤ 25 oC 90 W Tstg Storage Temperature -65 to 150 o C Tj Max. Operating Junction Temperature 150 o C For PNP types voltage and current values are negative. October 1999 1/6
®
