AP6A255Q/AP6A355Q Typical Performance Characteristics
(AP6A255Q/AP6A355Q at TA = +25°C, VIN = 48V, VOUT = 5V, unless otherwise specified.) (continued)

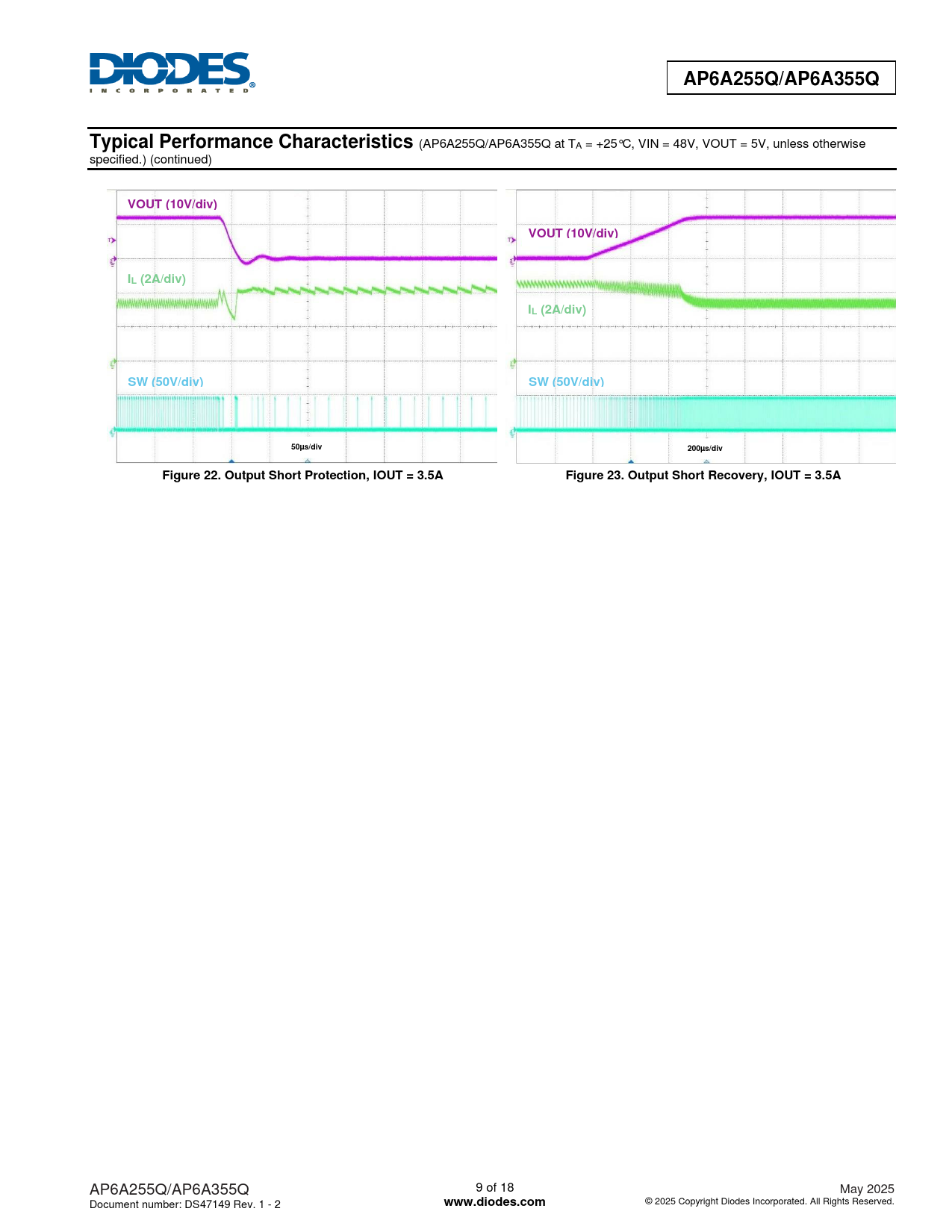

VOUT (10V/div) VOUT (10V/div) IL (2A/div) IL (2A/div) SW (50V/div) SW (50V/div) 50µs/div 200µs/div Figure 22. Output Short Protection, IOUT = 3.5A Figure 23. Output Short Recovery, IOUT = 3.5A
AP6A255Q/AP6A355Q 9 of 18 May 2025 Document number: DS47149 Rev. 1 - 2
