Datasheet HF92F (Hongfa) - 2

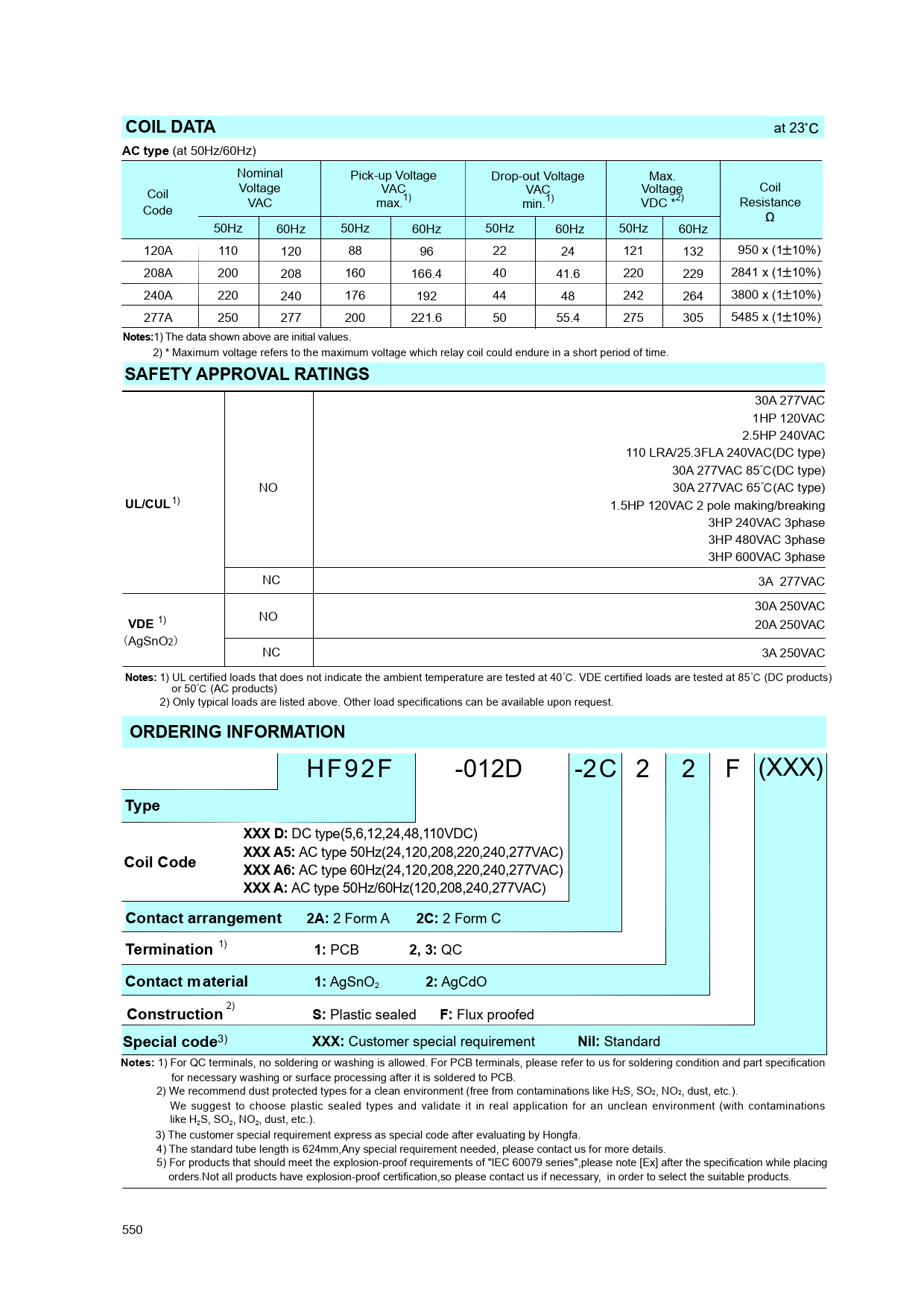

1003063 1003063 1003063 1003063 2025-08-20 2025-08-20 2025-08-20 2025-08-20 1003063 1003063 1003063 1003063 COIL DATA at 23 AC type (at 50Hz/60Hz) 2025-08-20 2025-08-20 2025-08-20 2025-08-20 Nominal Pick-up Voltage Drop-out Voltage Max. Coil Voltage VAC VAC Voltage Coil VAC VDC *2) Resistance Code max.1) min.1) 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 120A 110 120 88 96 22 24 121 132 950 x (1 10%) 208A 200 208 160 166.4 40 41.6 220 229 2841 x (1 10%) 240A 220 240 176 192 44 48 242 264 3800 x (1 10%) 277A 250 277 200 221.6 50 55.4 275 305 5485 x (1 10%) Notes:1) The data shown above are initial values. 2) * Maximum voltage refers to the maximum voltage which relay coil could endure in a short period of time. SAFETY APPROVAL RATINGS 1003063 1003063 1003063 1003063 30A 277VAC 1HP 120VAC 2.5HP 240VAC 110 LRA/25.3FLA 240VAC(DC type) 2025-08-20 2025-08-20 2025-08-20 30A 277VAC 85℃(DC type) 2025-08-20 NO 30A 277VAC 65℃(AC type) UL/CU 1) L 1.5HP 120VAC 2 pole making/breaking 3HP 240VAC 3phase 3HP 480VAC 3phase 3HP 600VAC 3phase NC 3A 277VAC 30A 250VAC NO VDE 1) 20A 250VAC (AgSnO2) NC 3A 250VAC Notes: 1) UL certified loads that does not indicate the ambient temperature are tested at 40℃. VDE certified loads are tested at 85℃ (DC products) or 50℃ (AC products) 2) Only typical loads are listed above. Other load specifications can be available upon request. 1003063 1003063 1003063 1003063 ORDERING INFORMATION HF92F -012D -2C 2 2 F (XXX) 2025-08-20 2025-08-20 2025-08-20 2025-08-20 Type XXX D: DC type(5,6,12,24,48,110VDC) XXX A5: AC type 50Hz(24,120,208,220,240,277VAC) Coil Code XXX A6: AC type 60Hz(24,120,208,220,240,277VAC) XXX A: AC type 50Hz/60Hz(120,208,240,277VAC) Contact arrangement 2A: 2 Form A 2C: 2 Form C Termination 1) 1: PCB 2, 3: QC Contact material 1: AgSnO2 2: AgCdO 2) 1003063 Construction S: P 1003063 lastic sealed F: Flux proofed 1003063 1003063 Special code3) XXX: Customer special requirement Nil: Standard Notes: 1) For QC terminals, no soldering or washing is al owed. For PCB terminals, please refer to us for soldering condition and part specification for necessary washing or surface processing after it is soldered to PCB. 2025-08-20 2) We recommend dust protected types fo 2025-08-20r a clean environment (free from contaminations like H 2025-08-20 2025-08-20 2S, SO2, NO2, dust, etc.). We suggest to choose plastic sealed types and validate it in real application for an unclean environment (with contaminations like H2S, SO2, NO2, dust, etc.). 3) The customer special requirement express as special code after evaluating by Hongfa. 4) The standard tube length is 624mm,Any special requirement needed, please contact us for more details. 5) For products that should meet the explosion-proof requirements of "IEC 60079 series",please note [Ex] after the specification while placing orders.Not all products have explosion-proof certification,so please contact us if necessary, in order to select the suitable products. 550 1003063 1003063 1003063 1003063 2025-08-20 2025-08-20 2025-08-20 2025-08-20
