Datasheet 1N916 (ON Semiconductor)
| Fabricante | ON Semiconductor |
| Descripción | Small Signal Switching Diodes in DO−204AH (DO−35) Package |
| Páginas / Página | 7 / 1 — DATA SHEET. www.onsemi.com. DO−35. Cathode is denoted with a black band. … |
| Formato / tamaño de archivo | PDF / 223 Kb |
| Idioma del documento | Inglés |
DATA SHEET. www.onsemi.com. DO−35. Cathode is denoted with a black band. ORDERING INFORMATION. Part Number. Marking. Package
Línea de modelo para esta hoja de datos
Versión de texto del documento

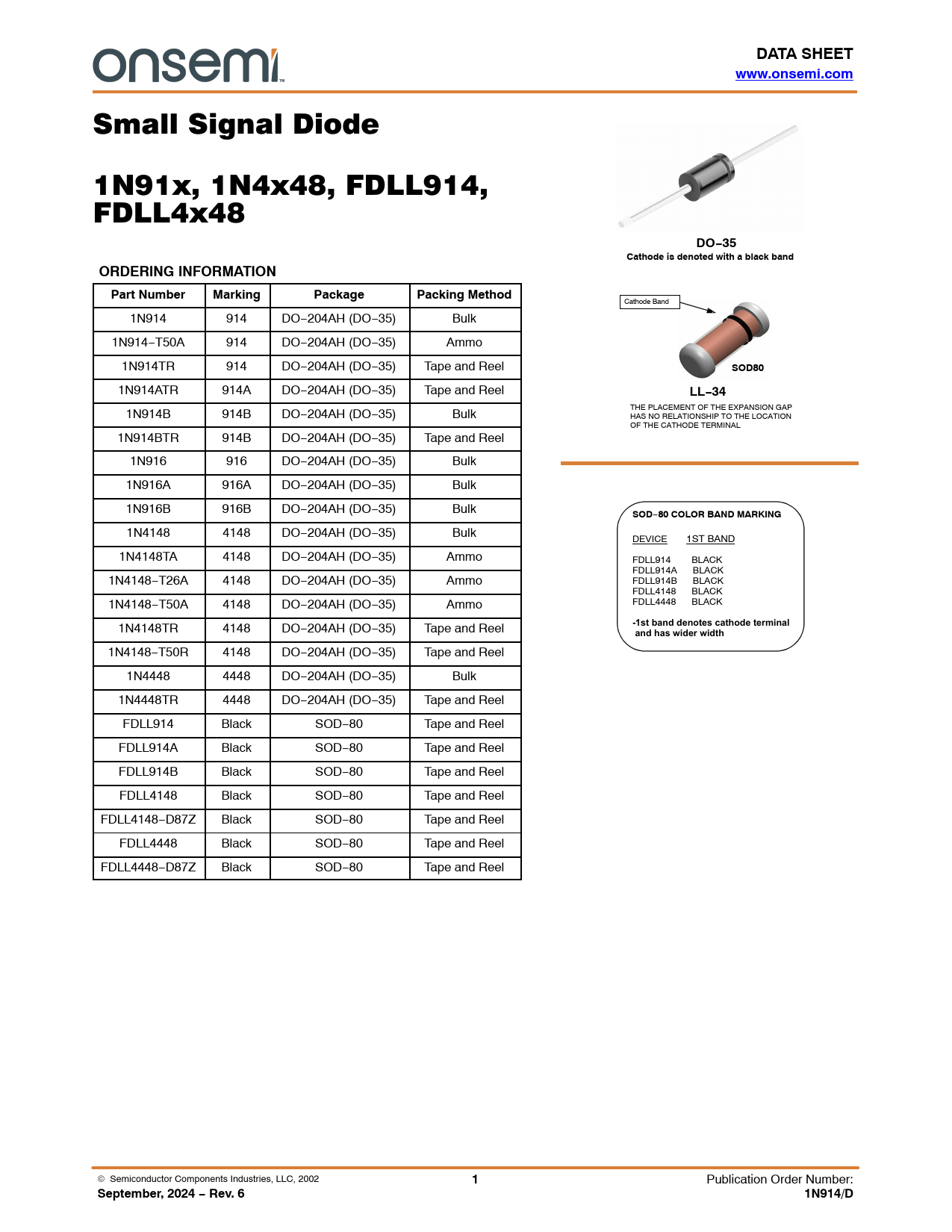

DATA SHEET www.onsemi.com
Small Signal Diode 1N91x, 1N4x48, FDLL914, FDLL4x48
DO−35 Cathode is denoted with a black band ORDERING INFORMATION Part Number Marking Package Packing Method
Cathode Band 1N914 914 DO−204AH (DO−35) Bulk 1N914−T50A 914 DO−204AH (DO−35) Ammo 1N914TR 914 DO−204AH (DO−35) Tape and Reel
SOD80
1N914ATR 914A DO−204AH (DO−35) Tape and Reel
LL−34
1N914B 914B DO−204AH (DO−35) Bulk THE PLACEMENT OF THE EXPANSION GAP HAS NO RELATIONSHIP TO THE LOCATION OF THE CATHODE TERMINAL 1N914BTR 914B DO−204AH (DO−35) Tape and Reel 1N916 916 DO−204AH (DO−35) Bulk 1N916A 916A DO−204AH (DO−35) Bulk 1N916B 916B DO−204AH (DO−35) Bulk
SOD−80 COLOR BAND MARKING
1N4148 4148 DO−204AH (DO−35) Bulk DEVICE 1ST BAND 1N4148TA 4148 DO−204AH (DO−35) Ammo FDLL914 BLACK FDLL914A BLACK 1N4148−T26A 4148 DO−204AH (DO−35) Ammo FDLL914B BLACK FDLL4148 BLACK 1N4148−T50A 4148 DO−204AH (DO−35) Ammo FDLL4448 BLACK 1N4148TR 4148 DO−204AH (DO−35) Tape and Reel
-1st band denotes cathode terminal and has wider width
1N4148−T50R 4148 DO−204AH (DO−35) Tape and Reel 1N4448 4448 DO−204AH (DO−35) Bulk 1N4448TR 4448 DO−204AH (DO−35) Tape and Reel FDLL914 Black SOD−80 Tape and Reel FDLL914A Black SOD−80 Tape and Reel FDLL914B Black SOD−80 Tape and Reel FDLL4148 Black SOD−80 Tape and Reel FDLL4148−D87Z Black SOD−80 Tape and Reel FDLL4448 Black SOD−80 Tape and Reel FDLL4448−D87Z Black SOD−80 Tape and Reel © Semiconductor Components Industries, LLC, 2002
1
Publication Order Number:
September, 2024 − Rev. 6 1N914/D
