BA76220 PIR Controller Retrigger

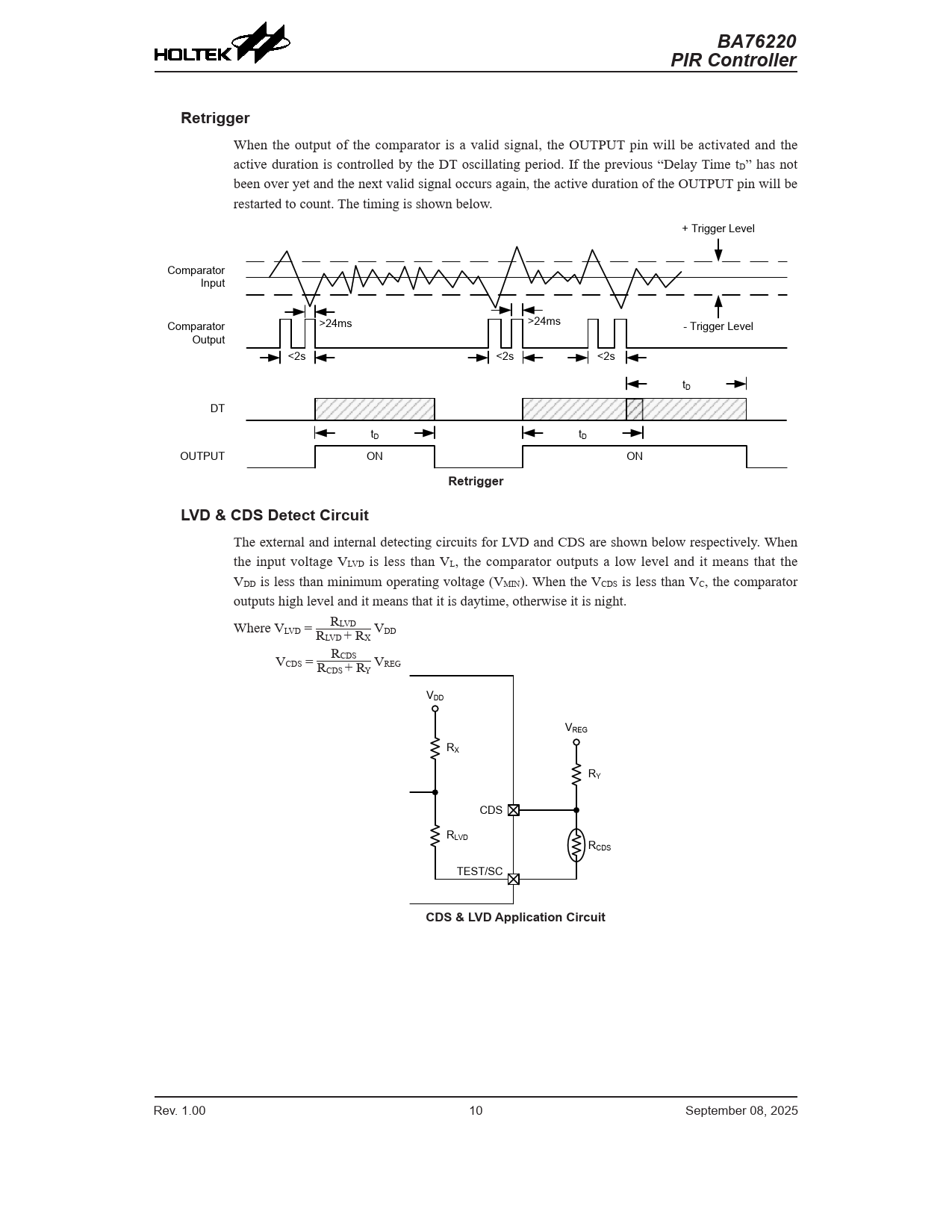

When the output of the comparator is a valid signal, the OUTPUT pin will be activated and the active duration is controlled by the DT oscillating period. If the previous “Delay Time tD” has not been over yet and the next valid signal occurs again, the active duration of the OUTPUT pin will be restarted to count. The timing is shown below. + Trigger Level Comparator Input Comparator >24ms >24ms - Trigger Level Output <2s <2s <2s tD DT tD tD OUTPUT ON ON
Retrigger LVD & CDS Detect Circuit
The external and internal detecting circuits for LVD and CDS are shown below respectively. When the input voltage VLVD is less than VL, the comparator outputs a low level and it means that the VDD is less than minimum operating voltage (VMIN). When the VCDS is less than VC, the comparator outputs high level and it means that it is daytime, otherwise it is night. Where VLVD = RLVD R VDD LVD + RX VCDS = RCDS R VREG CDS + RY VDD VREG RX RY CDS RLVD RCDS TEST/SC
CDS & LVD Application Circuit
