P30L
www.vishay.com Vishay Sfernice

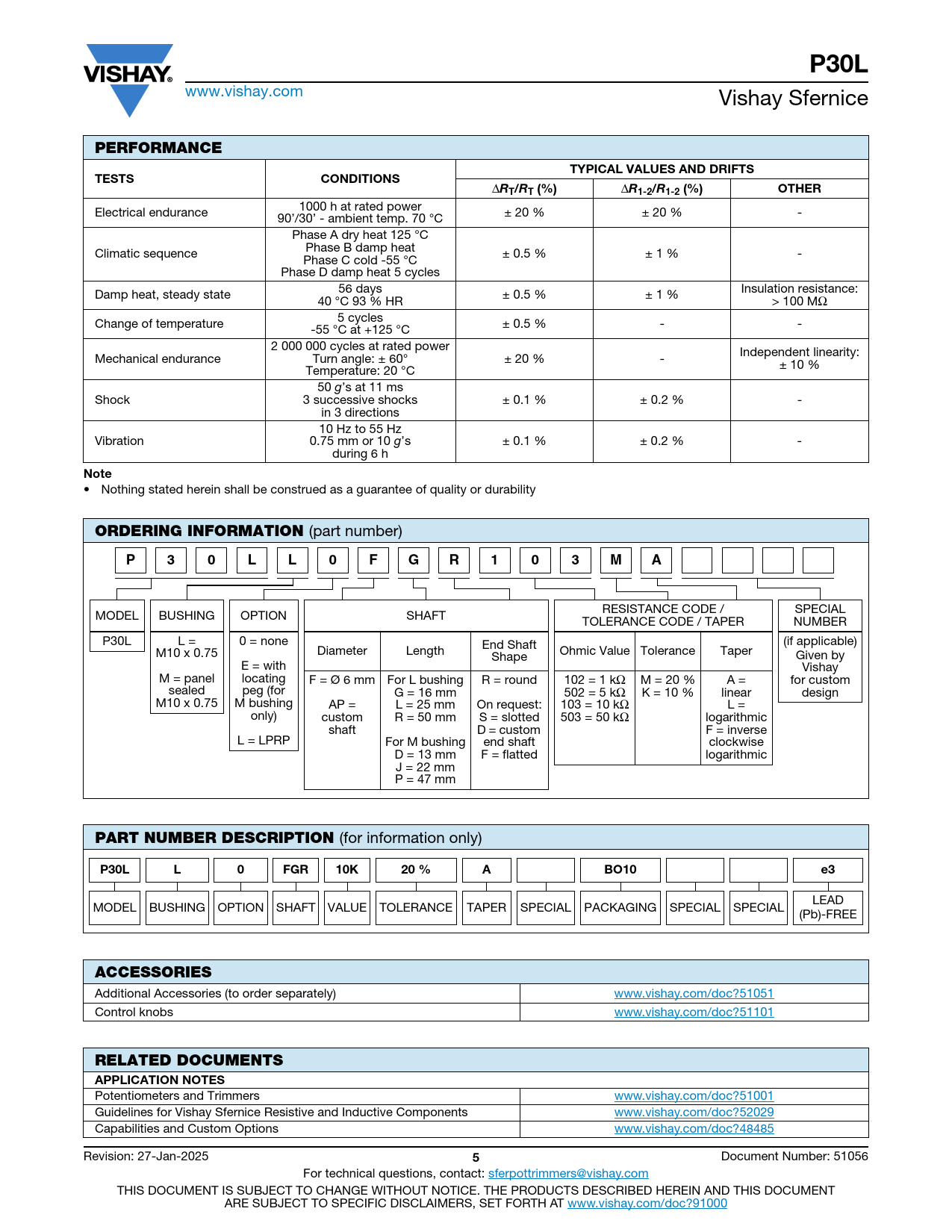

PERFORMANCE TYPICAL VALUES AND DRIFTS TESTS CONDITIONS
Δ
R T/R T (%)
Δ
R 1-2/R 1-2 (%) OTHER
1000 h at rated power Electrical endurance ± 20 % ± 20 % - 90’/30’ - ambient temp. 70 °C Phase A dry heat 125 °C Phase B damp heat Climatic sequence ± 0.5 % ± 1 % - Phase C cold -55 °C Phase D damp heat 5 cycles 56 days Insulation resistance: Damp heat, steady state ± 0.5 % ± 1 % 40 °C 93 % HR > 100 MΩ 5 cycles Change of temperature ± 0.5 % - - -55 °C at +125 °C 2 000 000 cycles at rated power Independent linearity: Mechanical endurance Turn angle: ± 60° ± 20 % - ± 10 % Temperature: 20 °C 50 g’s at 11 ms Shock 3 successive shocks ± 0.1 % ± 0.2 % - in 3 directions 10 Hz to 55 Hz Vibration 0.75 mm or 10 g’s ± 0.1 % ± 0.2 % - during 6 h
Note
• Nothing stated herein shall be construed as a guarantee of quality or durability
ORDERING INFORMATION
(part number)
P 3 0 L L 0 F G R 1 0 3 M A
RESISTANCE CODE / SPECIAL MODEL BUSHING OPTION SHAFT TOLERANCE CODE / TAPER NUMBER P30L L = 0 = none End Shaft (if applicable) M10 x 0.75 Diameter Length Ohmic Value Tolerance Taper Shape Given by E = with Vishay M = panel locating F = Ø 6 mm For L bushing R = round 102 = 1 kΩ M = 20 % A = for custom sealed peg (for G = 16 mm 502 = 5 kΩ K = 10 % linear design M10 x 0.75 M bushing AP = L = 25 mm On request: 103 = 10 kΩ L = only) custom R = 50 mm S = slotted 503 = 50 kΩ logarithmic shaft D = custom F = inverse L = LPRP For M bushing end shaft clockwise D = 13 mm F = flatted logarithmic J = 22 mm P = 47 mm
PART NUMBER DESCRIPTION
(for information only)
P30L L 0 FGR 10K 20 % A BO10 e3
LEAD MODEL BUSHING OPTION SHAFT VALUE TOLERANCE TAPER SPECIAL PACKAGING SPECIAL SPECIAL (Pb)-FREE
ACCESSORIES
Additional Accessories (to order separately) www.vishay.com/doc?51051 Control knobs www.vishay.com/doc?51101
RELATED DOCUMENTS APPLICATION NOTES
Potentiometers and Trimmers www.vishay.com/doc?51001 Guidelines for Vishay Sfernice Resistive and Inductive Components www.vishay.com/doc?52029 Capabilities and Custom Options www.vishay.com/doc?48485 Revision: 27-Jan-2025
