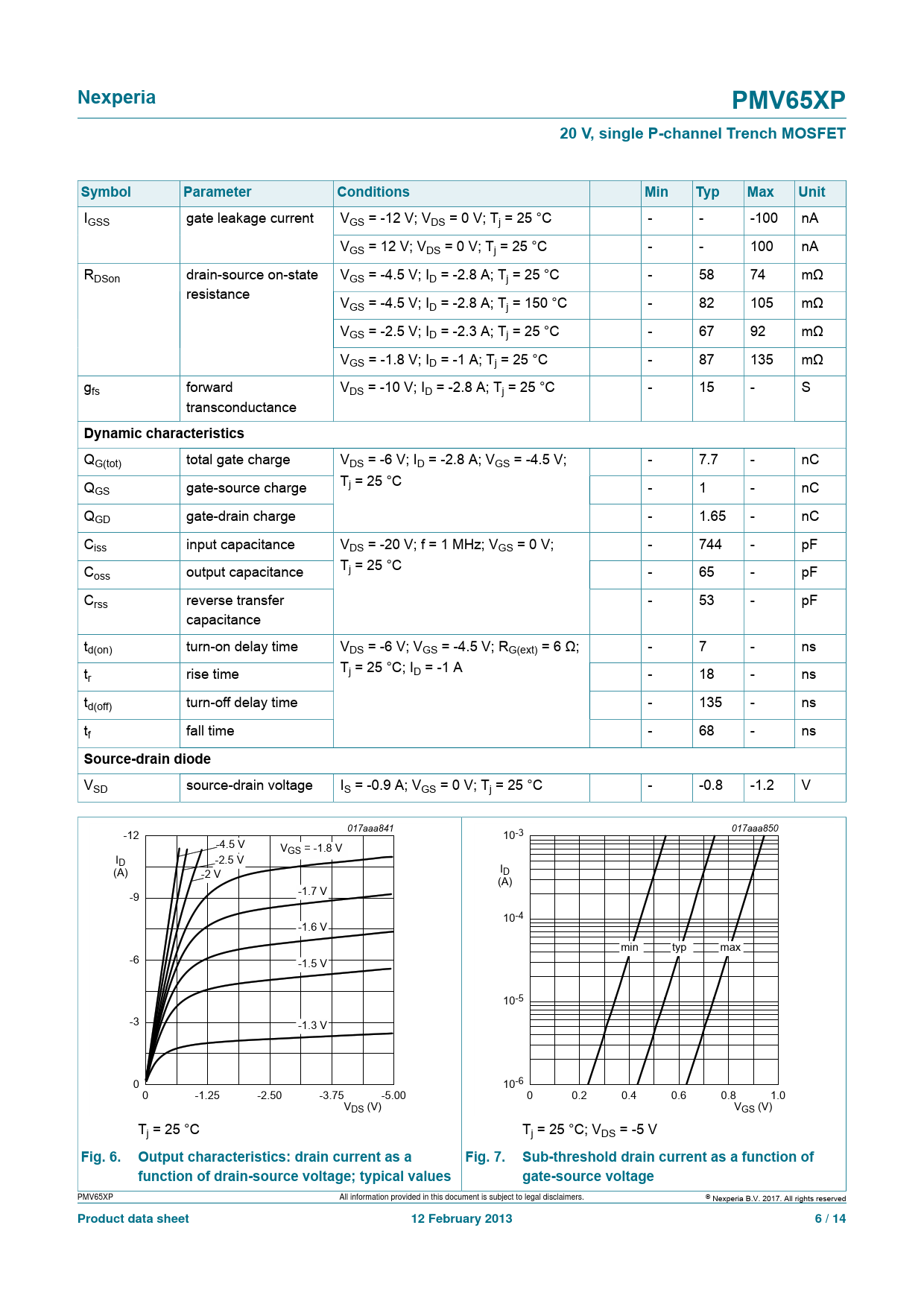

Nexperia PMV65XP 20 V, single P-channel Trench MOSFET Symbol Parameter Conditions Min Typ Max Unit
IGSS gate leakage current VGS = -12 V; VDS = 0 V; Tj = 25 °C - - -100 nA VGS = 12 V; VDS = 0 V; Tj = 25 °C - - 100 nA RDSon drain-source on-state VGS = -4.5 V; ID = -2.8 A; Tj = 25 °C - 58 74 mΩ resistance VGS = -4.5 V; ID = -2.8 A; Tj = 150 °C - 82 105 mΩ VGS = -2.5 V; ID = -2.3 A; Tj = 25 °C - 67 92 mΩ VGS = -1.8 V; ID = -1 A; Tj = 25 °C - 87 135 mΩ gfs forward VDS = -10 V; ID = -2.8 A; Tj = 25 °C - 15 - S transconductance
Dynamic characteristics
QG(tot) total gate charge VDS = -6 V; ID = -2.8 A; VGS = -4.5 V; - 7.7 - nC Q T GS gate-source charge j = 25 °C - 1 - nC QGD gate-drain charge - 1.65 - nC Ciss input capacitance VDS = -20 V; f = 1 MHz; VGS = 0 V; - 744 - pF C T oss output capacitance j = 25 °C - 65 - pF Crss reverse transfer - 53 - pF capacitance td(on) turn-on delay time VDS = -6 V; VGS = -4.5 V; RG(ext) = 6 Ω; - 7 - ns t T r rise time j = 25 °C; ID = -1 A - 18 - ns td(off) turn-off delay time - 135 - ns tf fall time - 68 - ns
Source-drain diode
VSD source-drain voltage IS = -0.9 A; VGS = 0 V; Tj = 25 °C - -0.8 -1.2 V 017aaa841 -12 017aaa850 10-3 -4.5 V VGS = -1.8 V ID -2.5 V (A) -2 V ID (A) -9 -1.7 V 10-4 -1.6 V min typ max -6 -1.5 V 10-5 -3 -1.3 V 0 10-6 0 -1.25 -2.50 -3.75 -5.00 0 0.2 0.4 0.6 0.8 1.0 VDS (V) VGS (V) Tj = 25 °C Tj = 25 °C; VDS = -5 V
Fig. 6. Output characteristics: drain current as a Fig. 7. Sub-threshold drain current as a function of function of drain-source voltage; typical values gate-source voltage
PMV65XP All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2017. All rights reserved
Product data sheet 12 February 2013 6 / 14
