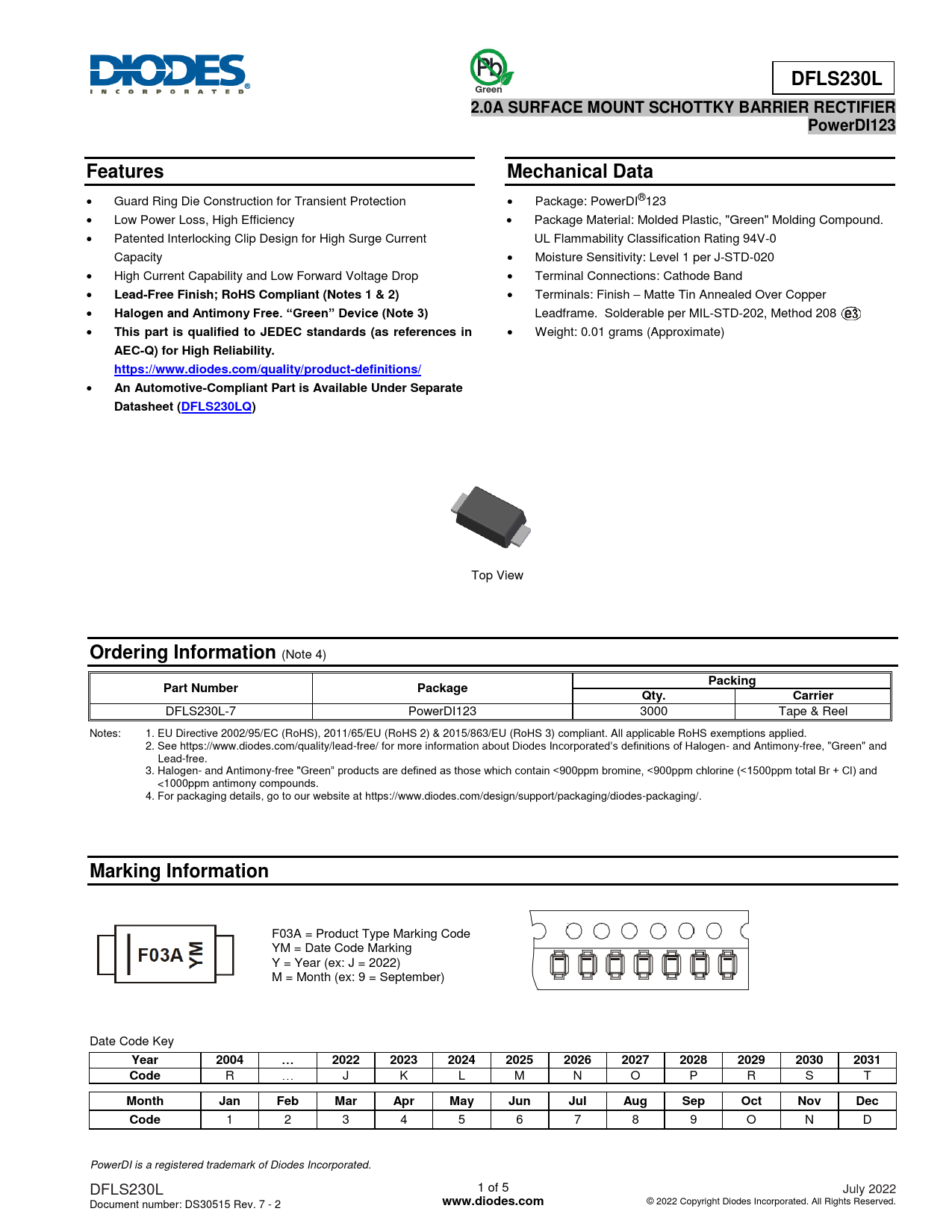

DFLS230L. Green. 2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER. PowerDI123. Features. Mechanical Data
Línea de modelo para esta hoja de datos
Versión de texto del documento
DFLS230L Green 2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER PowerDI123 Features Mechanical Data
Guard Ring Die Construction for Transient Protection Package: PowerDI®123 Low Power Loss, High Efficiency Package Material: Molded Plastic, "Green" Molding Compound. Patented Interlocking Clip Design for High Surge Current UL Flammability Classification Rating 94V-0 Capacity Moisture Sensitivity: Level 1 per J-STD-020 High Current Capability and Low Forward Voltage Drop Terminal Connections: Cathode Band
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Terminals: Finish – Matte Tin Annealed Over Copper
Halogen and Antimony Free. “Green” Device (Note 3)
Leadframe. Solderable per MIL-STD-202, Method 208
This part is qualified to JEDEC standards (as references in
Weight: 0.01 grams (Approximate)
AEC-Q) for High Reliability. https://www.diodes.com/quality/product-definitions/ An Automotive-Compliant Part is Available Under Separate Datasheet (DFLS230LQ)
Top View
Ordering Information
(Note 4)
Packing Part Number Package Qty. Carrier
DFLS230L-7 PowerDI123 3000 Tape & Reel Notes: 1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
F03A = Product Type Marking Code YM = Date Code Marking Y = Year (ex: J = 2022) M = Month (ex: 9 = September) Date Code Key
Year 2004 … 2022 2023 2024 2025 2026 2027 2028 2029 2030 2031 Code
R … J K L M N O P R S T
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Code
1 2 3 4 5 6 7 8 9 O N D PowerDI is a registered trademark of Diodes Incorporated. DFLS230L 1 of 5 July 2022 Document number: DS30515 Rev. 7 - 2
