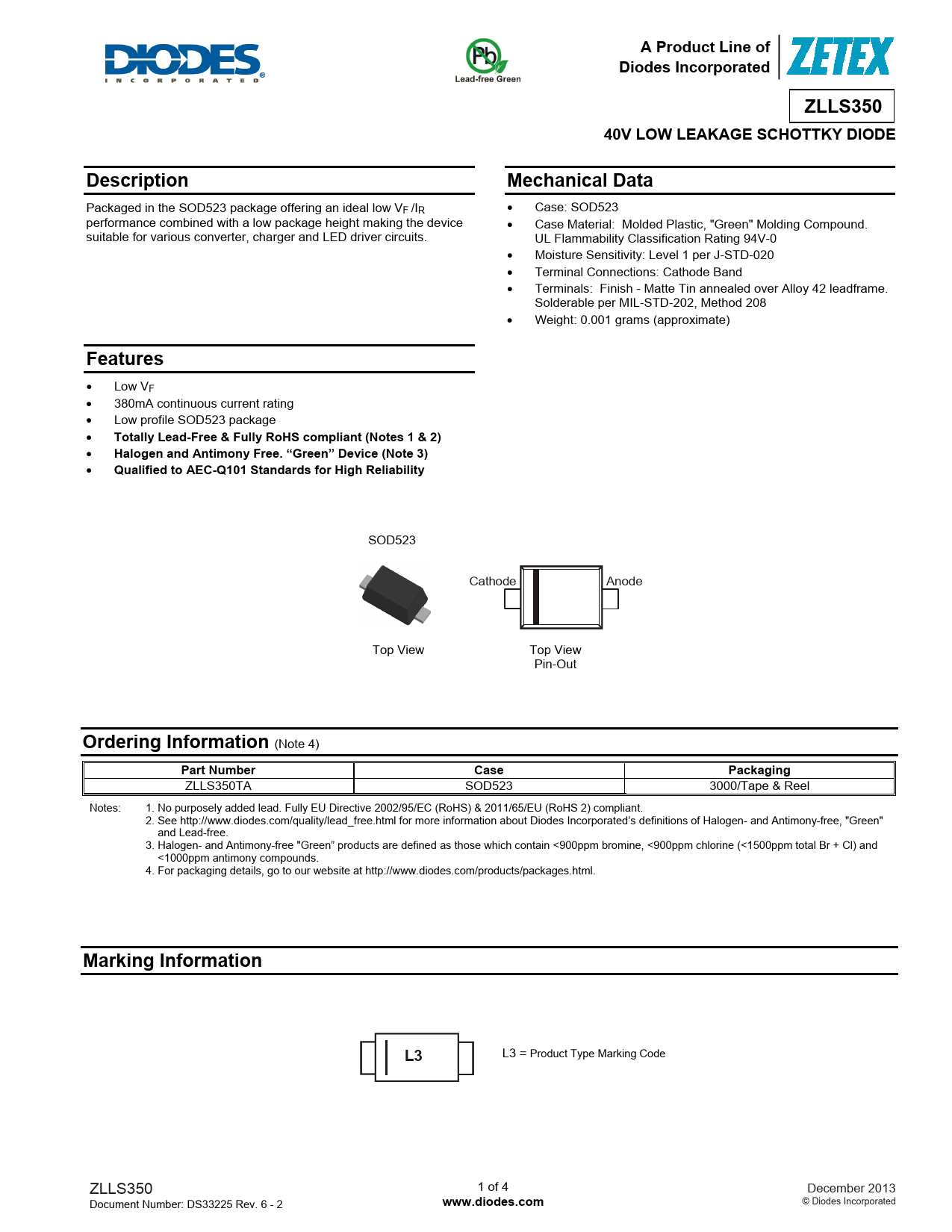

A Product Line of. Diodes Incorporated. ZLLS350. 40V LOW LEAKAGE SCHOTTKY DIODE. Description. Mechanical Data. Features
Línea de modelo para esta hoja de datos
Versión de texto del documento
A Product Line of Diodes Incorporated ZLLS350 40V LOW LEAKAGE SCHOTTKY DIODE Description Mechanical Data
Packaged in the SOD523 package offering an ideal low VF /IR Case: SOD523 performance combined with a low package height making the device Case Material: Molded Plastic, "Green" Molding Compound. suitable for various converter, charger and LED driver circuits. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminal Connections: Cathode Band Terminals: Finish - Matte Tin annealed over Alloy 42 leadframe. Solderable per MIL-STD-202, Method 208 Weight: 0.001 grams (approximate)
Features
Low VF 380mA continuous current rating Low profile SOD523 package
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability
SOD523 Cathode Anode Top View Top View Pin-Out
Ordering Information
(Note 4)
Part Number Case Packaging
ZLLS350TA SOD523 3000/Tape & Reel Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
L3 = Product Type Marking Code
L3
ZLLS350 1 of 4 December 2013 Document Number: DS33225 Rev. 6 - 2
