Datasheet RTL2832U (Realtek) - 7

RTL2832U

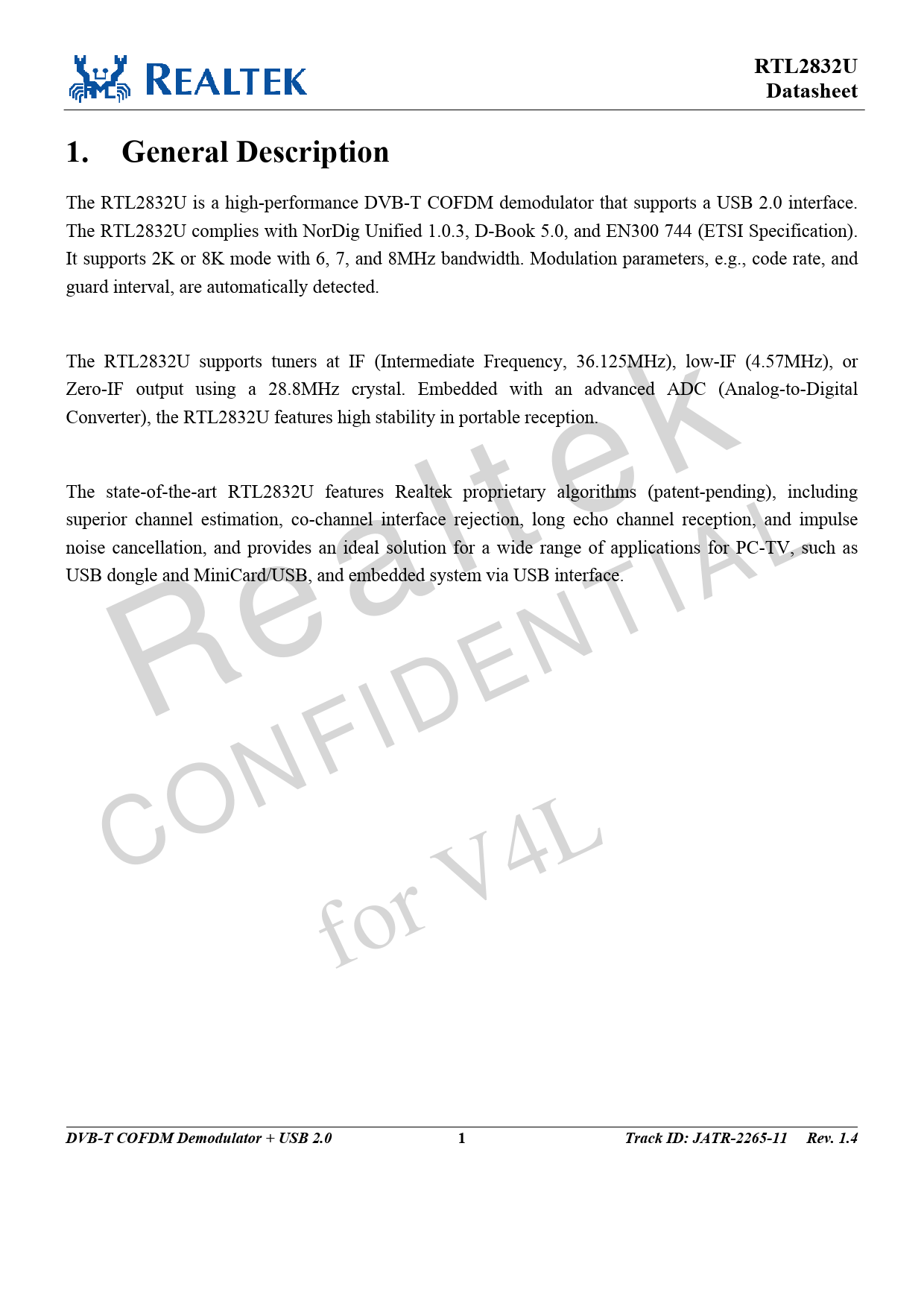

Datasheet 1. General Description The RTL2832U is a high-performance DVB-T COFDM demodulator that supports a USB 2.0 interface.
The RTL2832U complies with NorDig Unified 1.0.3, D-Book 5.0, and EN300 744 (ETSI Specification).
It supports 2K or 8K mode with 6, 7, and 8MHz bandwidth. Modulation parameters, e.g., code rate, and
guard interval, are automatically detected. k
e
t The RTL2832U supports tuners at IF (Intermediate Frequency, 36.125MHz), low-IF (4.57MHz), or
Zero-IF output using a 28.8MHz crystal. Embedded with an advanced ADC (Analog-to-Digital
Converter), the RTL2832U features high stability in portable reception. l
a L
IA The state-of-the-art RTL2832U features Realtek proprietary algorithms (patent-pending), including
superior channel estimation, co-channel interface rejection, long echo channel reception, and impulse
noise cancellation, and provides an ideal solution for a wide range of applications for PC-TV, such as
USB dongle and MiniCard/USB, and embedded system via USB interface. e
R E
ID F
N O
C DVB-T COFDM Demodulator + USB 2.0 T
N r
fo L
4
V
1 Track ID: JATR-2265-11 Rev. 1.4
