MLX75305
Datasheet

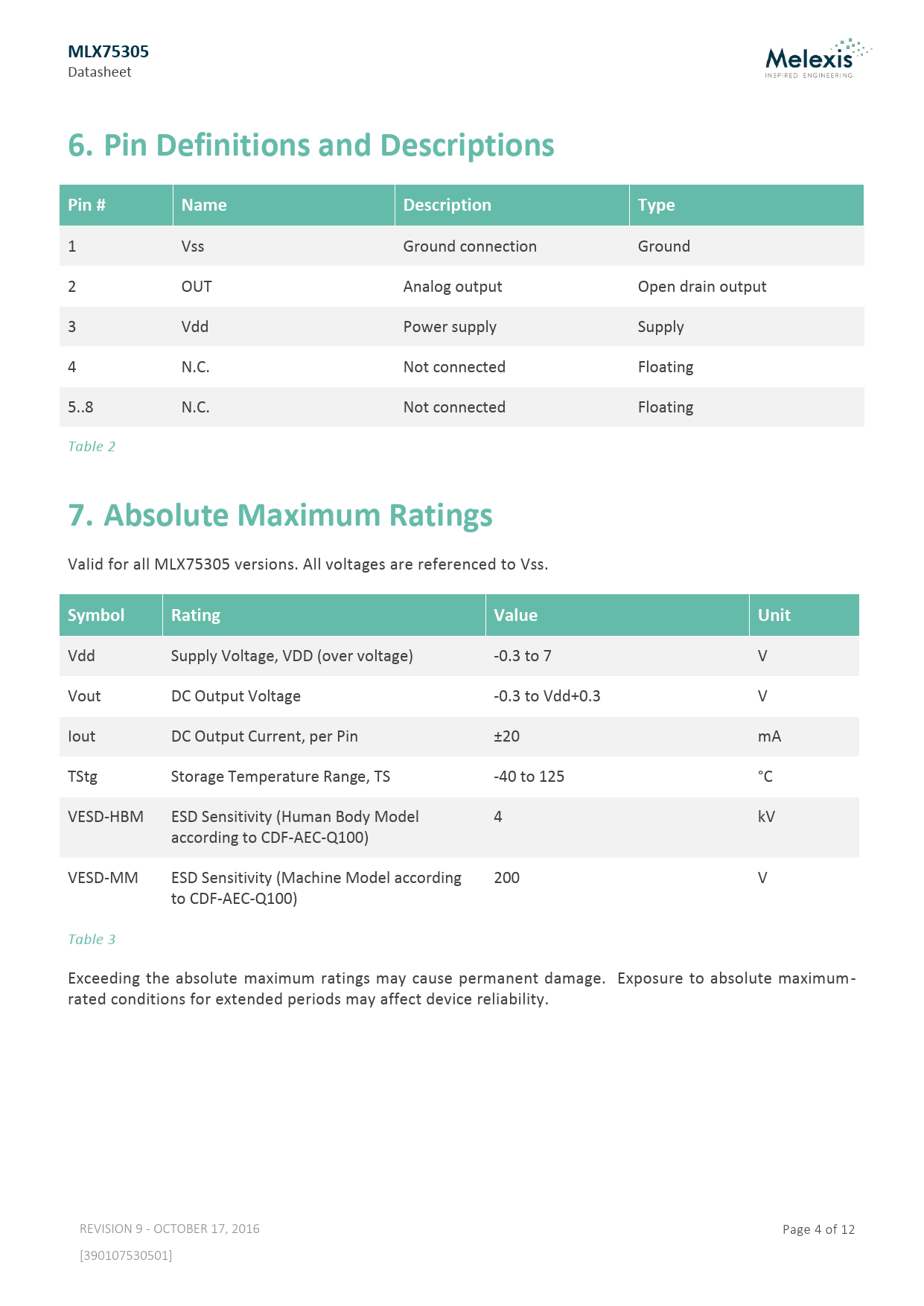

6. Pin Definitions and Descriptions Pin # Name Description Type
1 Vss Ground connection Ground 2 OUT Analog output Open drain output 3 Vdd Power supply Supply 4 N.C. Not connected Floating 5..8 N.C. Not connected Floating Table 2
7. Absolute Maximum Ratings
Valid for all MLX75305 versions. All voltages are referenced to Vss.
Symbol Rating Value Unit
Vdd Supply Voltage, VDD (over voltage) -0.3 to 7 V Vout DC Output Voltage -0.3 to Vdd+0.3 V Iout DC Output Current, per Pin ±20 mA TStg Storage Temperature Range, TS -40 to 125 °C VESD-HBM ESD Sensitivity (Human Body Model 4 kV according to CDF-AEC-Q100) VESD-MM ESD Sensitivity (Machine Model according 200 V to CDF-AEC-Q100) Table 3 Exceeding the absolute maximum ratings may cause permanent damage. Exposure to absolute maximum- rated conditions for extended periods may affect device reliability. REVISION 9 - OCTOBER 17, 2016 Page 4 of 12 [390107530501]
