MLX75305
Línea de modelo para esta hoja de datos
Versión de texto del documento
MLX75305

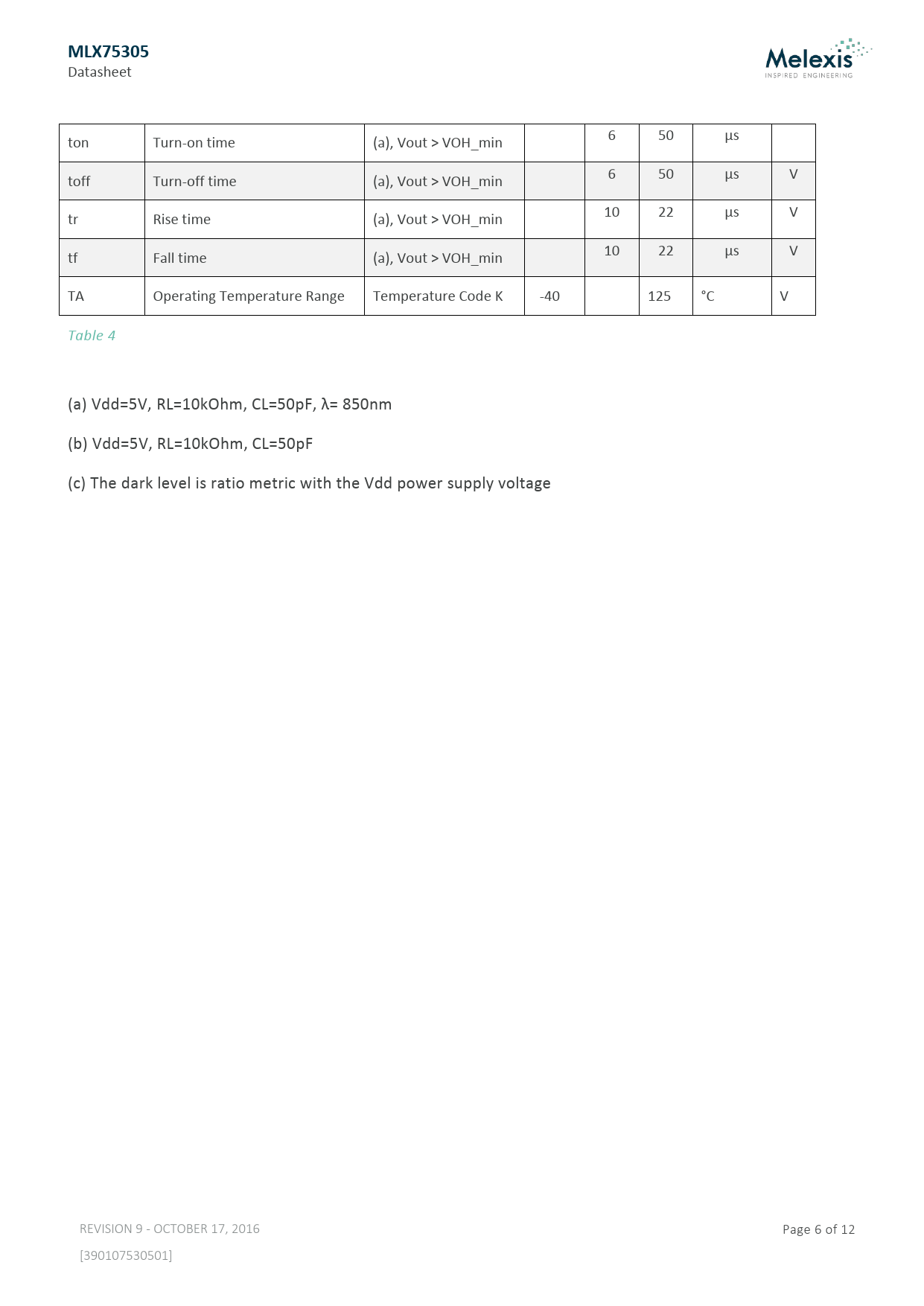

Datasheet ton Turn-on time (a), Vout > VOH_min 6 50 µs toff Turn-off time (a), Vout > VOH_min 6 50 µs V tr Rise time (a), Vout > VOH_min 10 22 µs V tf Fall time (a), Vout > VOH_min 10 22 µs V TA Operating Temperature Range Temperature Code K -40 125 °C V Table 4 (a) Vdd=5V, RL=10kOhm, CL=50pF, λ= 850nm (b) Vdd=5V, RL=10kOhm, CL=50pF (c) The dark level is ratio metric with the Vdd power supply voltage REVISION 9 - OCTOBER 17, 2016 Page 6 of 12 [390107530501]
