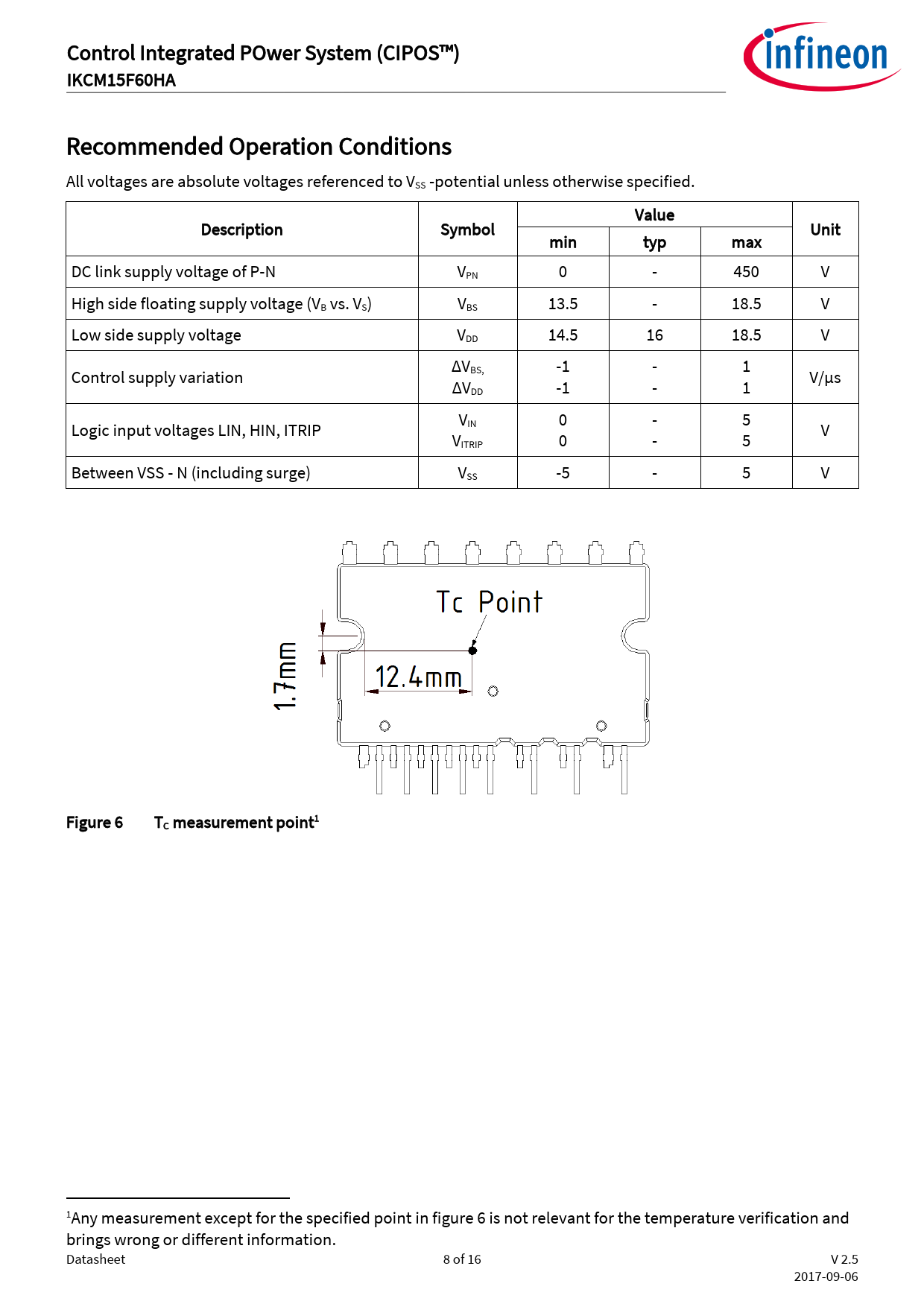

Control Integrated POwer System (CIPOS™) IKCM15F60HA Recommended Operation Conditions All voltages are absolute voltages referenced to VSS -potential unless otherwise specified. Value Description Symbol Unit min typ max DC link supply voltage of P-N VPN 0 - 450 V High side floating supply voltage (VB vs. VS) VBS 13.5 - 18.5 V Low side supply voltage VDD 14.5 16 18.5 V ΔV -1 - 1 Control supply variation BS, V/µs ΔVDD -1 - 1 V 0 - 5 Logic input voltages LIN, HIN, ITRIP IN V VITRIP 0 - 5 Between VSS - N (including surge) VSS -5 - 5 V Figure 6 TC measurement point1 1Any measurement except for the specified point in figure 6 is not relevant for the temperature verification and brings wrong or different information. Datasheet 8 of 16 V 2.5 2017-09-06 Document Outline Table of contents CIPOS™ Control Integrated POwer System Features Target Applications Description System Configuration Pin Configuration Internal Electrical Schematic Pin Assignment Pin Description HIN(U, V, W) and LIN(U, V, W) (Low side and high side control pins, Pin 7 - 12) VFO (Fault-output, Pin 14) ITRIP (Over current detection function, Pin 15) VDD, VSS (Low side control supply and reference, Pin 13, 16) VB(U, V, W) and VS(U, V, W) (High side supplies, Pin 1 - 6) NW, NV, NU (Low side emitter, Pin 17 - 19) W, V, U (High side emitter and low side collector, Pin 20 - 22) P (Positive bus input voltage, Pin 23) Absolute Maximum Ratings Module Section Inverter Section Control Section Recommended Operation Conditions Static Parameters Dynamic Parameters Bootstrap Parameters Mechanical Characteristics and Ratings Switching Times Definition Circuit of a Typical Application Electrical characteristic Package Outline Revision history
