Datasheet G20S63CDW (Diodes)
| Fabricante | Diodes |
| Descripción | 20A HIGH VOLTAGE TRENCH SCHOTTKY BARRIER RECTIFIER |
| Páginas / Página | 5 / 1 — Green. G20S63CDW. SURFACE MOUNT. REV. RSE. OLTAGE – 63 Volts. TRENCH … |
| Formato / tamaño de archivo | PDF / 760 Kb |
| Idioma del documento | Inglés |

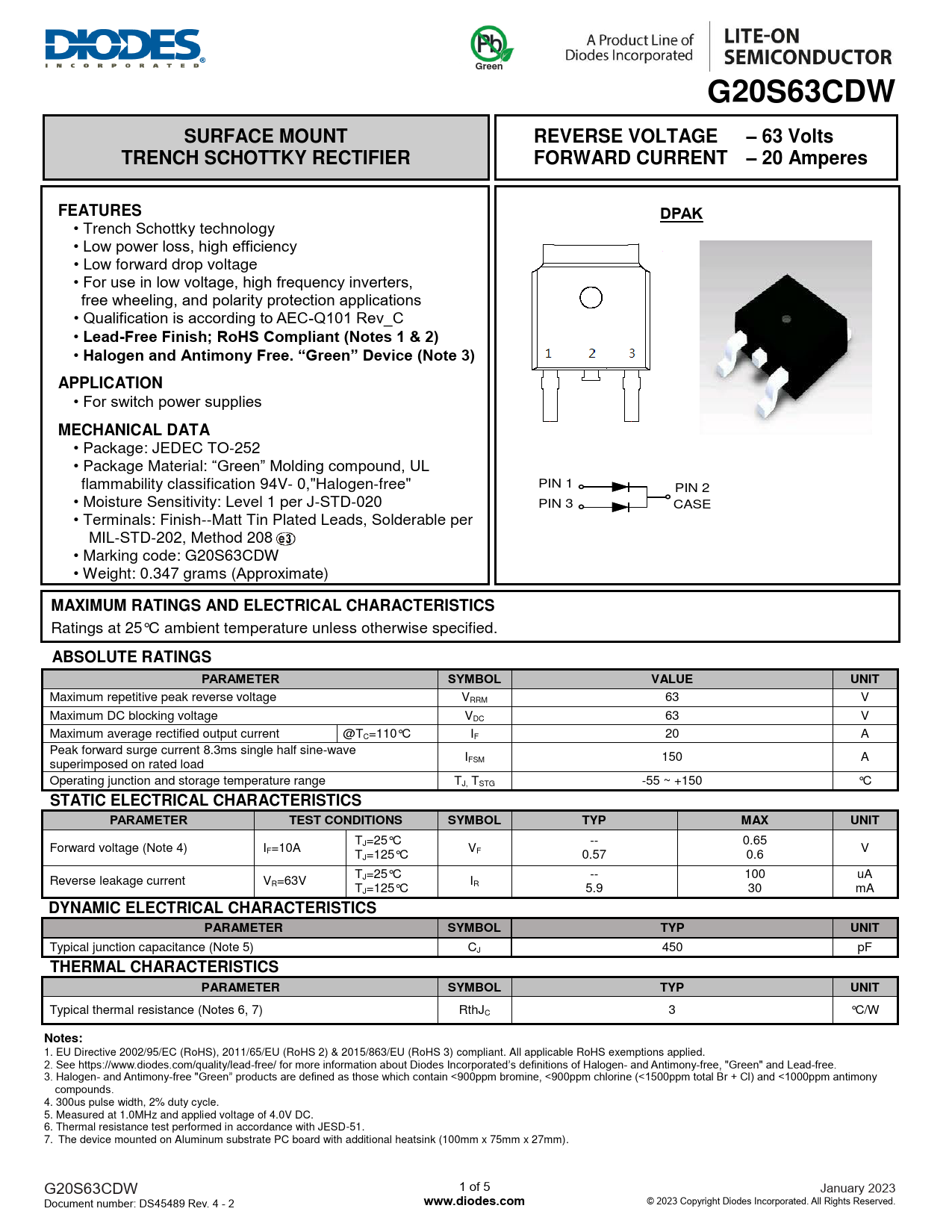

Green. G20S63CDW. SURFACE MOUNT. REV. RSE. OLTAGE – 63 Volts. TRENCH SCHOTTKY RECTIFIER. FORWARD CURRENT –. 20 Amperes. FEATURES. DPAK
Línea de modelo para esta hoja de datos
Versión de texto del documento
Green G20S63CDW SURFACE MOUNT REV E RSE V OLTAGE – 63 Volts TRENCH SCHOTTKY RECTIFIER FORWARD CURRENT – 20 Amperes FEATURES DPAK
• Trench Schottky technology • Low power loss, high efficiency • Low forward drop voltage • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications • Qualification is according to AEC-Q101 Rev_C •
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3) APPLICATION
• For switch power supplies
MECHANICAL DATA
• Package: JEDEC TO-252 • Package Material: “Green” Molding compound, UL flammability classification 94V- 0,"Halogen-free" PIN 1 PIN 2 • Moisture Sensitivity: Level 1 per J-STD-020 PIN 3 CASE • Terminals: Finish--Matt Tin Plated Leads, Solderable per MIL-STD-202, Method 208 • Marking code: G20S63CDW • Weight: 0.347 grams (Approximate)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
ABSOLUTE RATINGS PARAMETER SYMBOL VALUE UNIT
Maximum repetitive peak reverse voltage VRRM 63 V Maximum DC blocking voltage VDC 63 V Maximum average rectified output current @TC=110°C IF 20 A Peak forward surge current 8.3ms single half sine-wave I superimposed on rated load FSM 150 A Operating junction and storage temperature range TJ, TSTG -55 ~ +150 °C
STATIC ELECTRICAL CHARACTERISTICS PARAMETER TEST CONDITIONS SYMBOL TYP MAX UNIT
T -- 0.65 Forward voltage (Note 4) I J=25° C F=10A V V T F J=125° C 0.57 0.6 T -- 100 uA Reverse leakage current V J=25° C R=63V I T R J=125° C 5.9 30 mA
DYNAMIC ELECTRICAL CHARACTERISTICS PARAMETER SYMBOL TYP UNIT
Typical junction capacitance (Note 5) CJ 450 pF
THERMAL CHARACTERISTICS PARAMETER SYMBOL TYP UNIT
Typical thermal resistance (Notes 6, 7) RthJC 3 °C/W
Notes:
1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 4. 300us pulse width, 2% duty cycle. 5. Measured at 1.0MHz and applied voltage of 4.0V DC. 6. Thermal resistance test performed in accordance with JESD-51. 7. The device mounted on Aluminum substrate PC board with additional heatsink (100mm x 75mm x 27mm). G20S63CDW 1 of 5 January 2023 Document number: DS45489 Rev. 4 - 2
www.diodes.com
© 2023 Copyright Diodes Incorporated. All Rights Reserved.
