Datasheet TS2940 (Taiwan Semiconductor) - 3
| Fabricante | Taiwan Semiconductor |
| Descripción | 1A Ultra Low Dropout Voltage Regulator |
| Páginas / Página | 10 / 3 — TS2940. Note: |
| Formato / tamaño de archivo | PDF / 402 Kb |
| Idioma del documento | Inglés |
TS2940. Note:
Línea de modelo para esta hoja de datos
Versión de texto del documento
TS2940

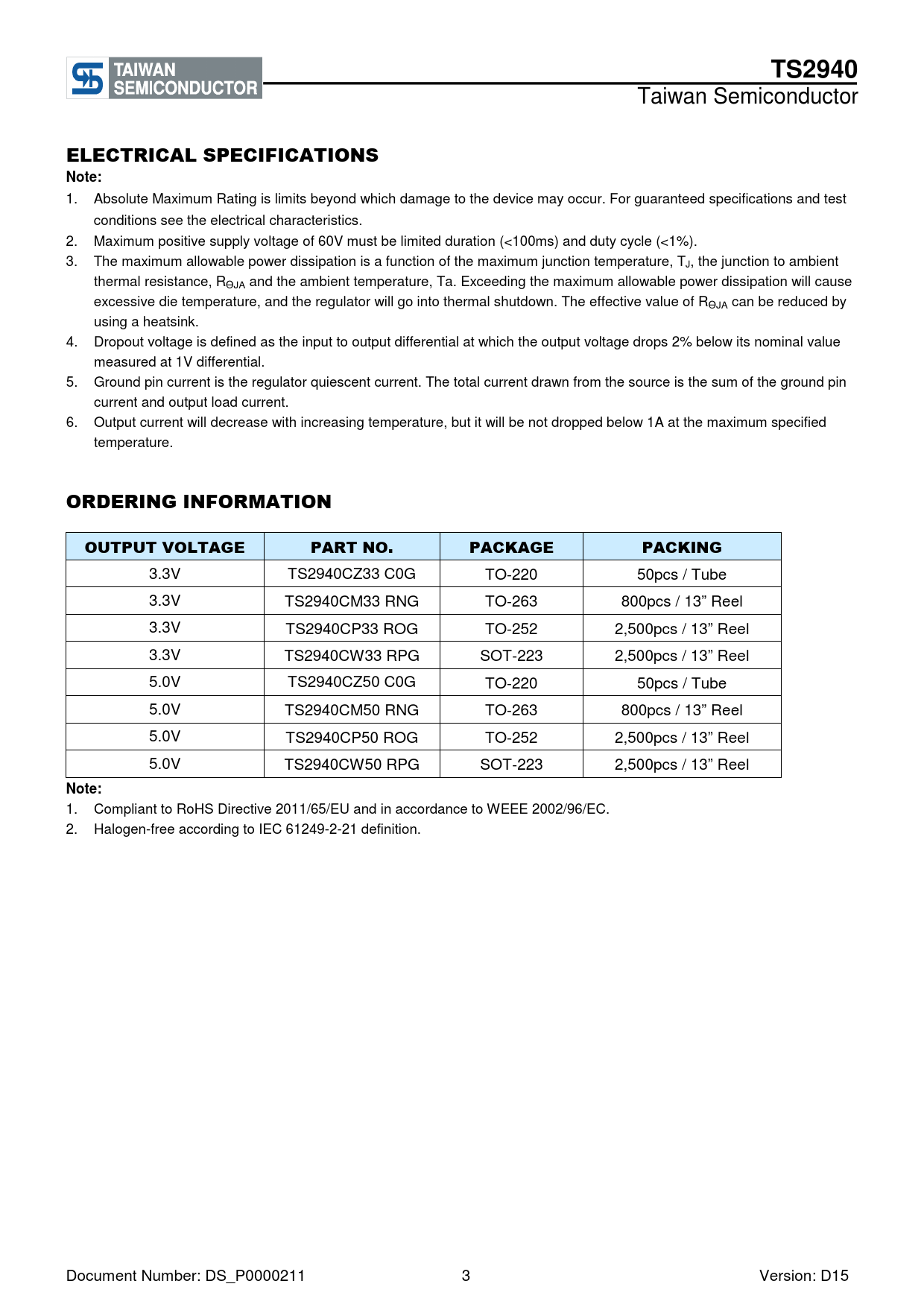

Taiwan Semiconductor ELECTRICAL SPECIFICATIONS
Note:
1. Absolute Maximum Rating is limits beyond which damage to the device may occur. For guaranteed specifications and test conditions see the electrical characteristics. 2. Maximum positive supply voltage of 60V must be limited duration (<100ms) and duty cycle (<1%). 3. The maximum allowable power dissipation is a function of the maximum junction temperature, TJ, the junction to ambient thermal resistance, RӨJA and the ambient temperature, Ta. Exceeding the maximum allowable power dissipation will cause excessive die temperature, and the regulator will go into thermal shutdown. The effective value of RӨJA can be reduced by using a heatsink. 4. Dropout voltage is defined as the input to output differential at which the output voltage drops 2% below its nominal value measured at 1V differential. 5. Ground pin current is the regulator quiescent current. The total current drawn from the source is the sum of the ground pin current and output load current. 6. Output current will decrease with increasing temperature, but it will be not dropped below 1A at the maximum specified temperature. ORDERING INFORMATION OUTPUT VOLTAGE PART NO. PACKAGE PACKING 3.3V TS2940CZ33 C0G TO-220 50pcs / Tube 3.3V TS2940CM33 RNG TO-263 800pcs / 13” Reel 3.3V TS2940CP33 ROG TO-252 2,500pcs / 13” Reel 3.3V TS2940CW33 RPG SOT-223 2,500pcs / 13” Reel 5.0V TS2940CZ50 C0G TO-220 50pcs / Tube 5.0V TS2940CM50 RNG TO-263 800pcs / 13” Reel 5.0V TS2940CP50 ROG TO-252 2,500pcs / 13” Reel 5.0V TS2940CW50 RPG SOT-223 2,500pcs / 13” Reel
Note:
1. Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC. 2. Halogen-free according to IEC 61249-2-21 definition. Document Number: DS_P0000211 3 Version: D15
Taiwan Semiconductor ELECTRICAL SPECIFICATIONS
Note:
1. Absolute Maximum Rating is limits beyond which damage to the device may occur. For guaranteed specifications and test conditions see the electrical characteristics. 2. Maximum positive supply voltage of 60V must be limited duration (<100ms) and duty cycle (<1%). 3. The maximum allowable power dissipation is a function of the maximum junction temperature, TJ, the junction to ambient thermal resistance, RӨJA and the ambient temperature, Ta. Exceeding the maximum allowable power dissipation will cause excessive die temperature, and the regulator will go into thermal shutdown. The effective value of RӨJA can be reduced by using a heatsink. 4. Dropout voltage is defined as the input to output differential at which the output voltage drops 2% below its nominal value measured at 1V differential. 5. Ground pin current is the regulator quiescent current. The total current drawn from the source is the sum of the ground pin current and output load current. 6. Output current will decrease with increasing temperature, but it will be not dropped below 1A at the maximum specified temperature. ORDERING INFORMATION OUTPUT VOLTAGE PART NO. PACKAGE PACKING 3.3V TS2940CZ33 C0G TO-220 50pcs / Tube 3.3V TS2940CM33 RNG TO-263 800pcs / 13” Reel 3.3V TS2940CP33 ROG TO-252 2,500pcs / 13” Reel 3.3V TS2940CW33 RPG SOT-223 2,500pcs / 13” Reel 5.0V TS2940CZ50 C0G TO-220 50pcs / Tube 5.0V TS2940CM50 RNG TO-263 800pcs / 13” Reel 5.0V TS2940CP50 ROG TO-252 2,500pcs / 13” Reel 5.0V TS2940CW50 RPG SOT-223 2,500pcs / 13” Reel
Note:
1. Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC. 2. Halogen-free according to IEC 61249-2-21 definition. Document Number: DS_P0000211 3 Version: D15
