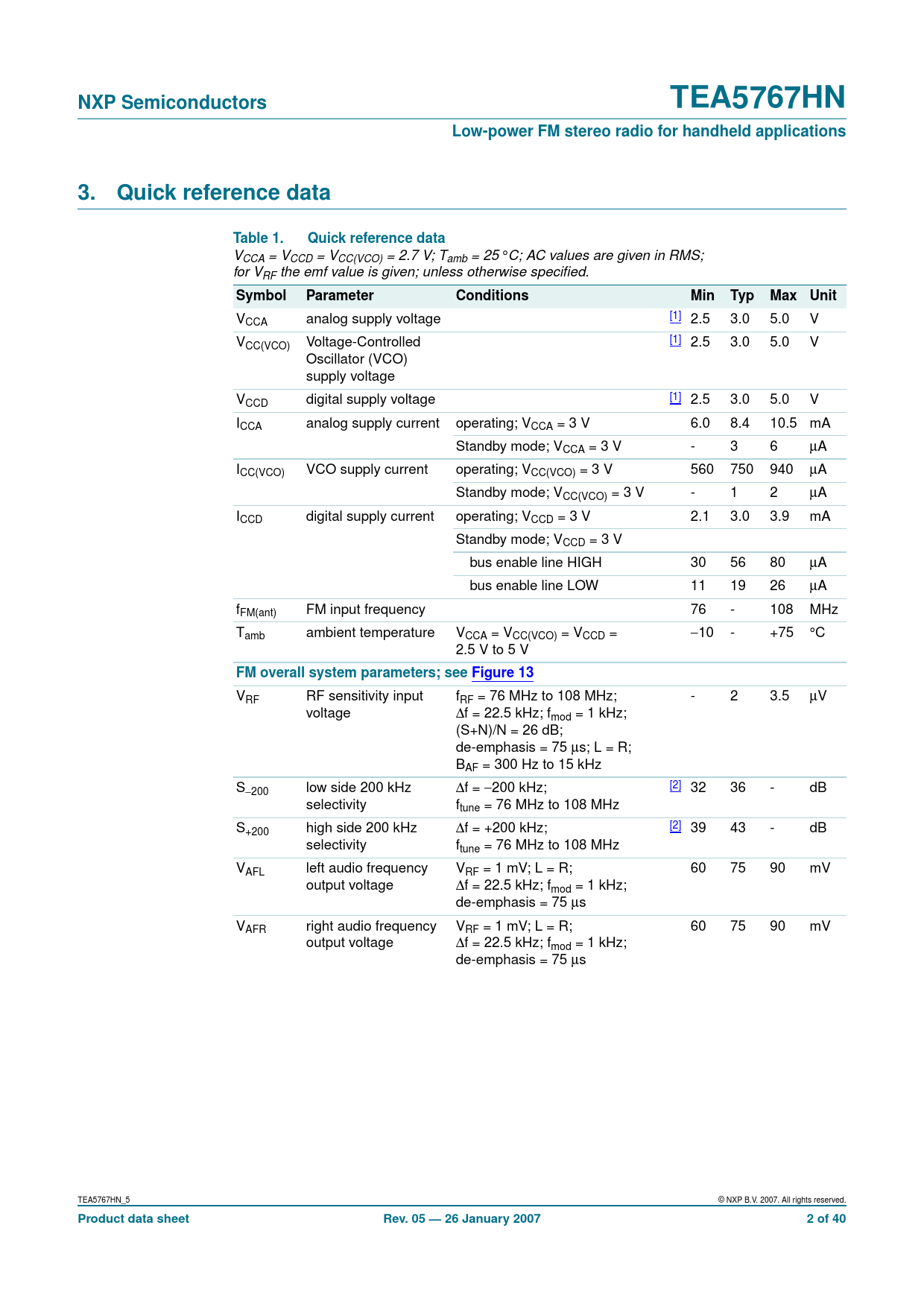

NXP Semiconductors TEA5767HN Low-power FM stereo radio for handheld applications 3. Quick reference data Table 1. Quick reference data
VCCA = VCCD = VCC(VCO) = 2.7 V; Tamb = 25 °C; AC values are given in RMS; for VRF the emf value is given; unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit
VCCA analog supply voltage [1] 2.5 3.0 5.0 V V [1] CC(VCO) Voltage-Controlled 2.5 3.0 5.0 V Oscillator (VCO) supply voltage VCCD digital supply voltage [1] 2.5 3.0 5.0 V ICCA analog supply current operating; VCCA = 3 V 6.0 8.4 10.5 mA Standby mode; VCCA = 3 V - 3 6 µA ICC(VCO) VCO supply current operating; VCC(VCO) = 3 V 560 750 940 µA Standby mode; VCC(VCO) = 3 V - 1 2 µA ICCD digital supply current operating; VCCD = 3 V 2.1 3.0 3.9 mA Standby mode; VCCD = 3 V bus enable line HIGH 30 56 80 µA bus enable line LOW 11 19 26 µA fFM(ant) FM input frequency 76 - 108 MHz Tamb ambient temperature VCCA = VCC(VCO) = VCCD = −10 - +75 °C 2.5 V to 5 V
FM overall system parameters; see Figure 13
VRF RF sensitivity input fRF = 76 MHz to 108 MHz; - 2 3.5 µV voltage ∆f = 22.5 kHz; fmod = 1 kHz; (S+N)/N = 26 dB; de-emphasis = 75 µs; L = R; BAF = 300 Hz to 15 kHz S− [2] 200 low side 200 kHz ∆f = −200 kHz; 32 36 - dB selectivity ftune = 76 MHz to 108 MHz S [2] +200 high side 200 kHz ∆f = +200 kHz; 39 43 - dB selectivity ftune = 76 MHz to 108 MHz VAFL left audio frequency VRF = 1 mV; L = R; 60 75 90 mV output voltage ∆f = 22.5 kHz; fmod = 1 kHz; de-emphasis = 75 µs VAFR right audio frequency VRF = 1 mV; L = R; 60 75 90 mV output voltage ∆f = 22.5 kHz; fmod = 1 kHz; de-emphasis = 75 µs TEA5767HN_5 © NXP B.V. 2007. All rights reserved.
