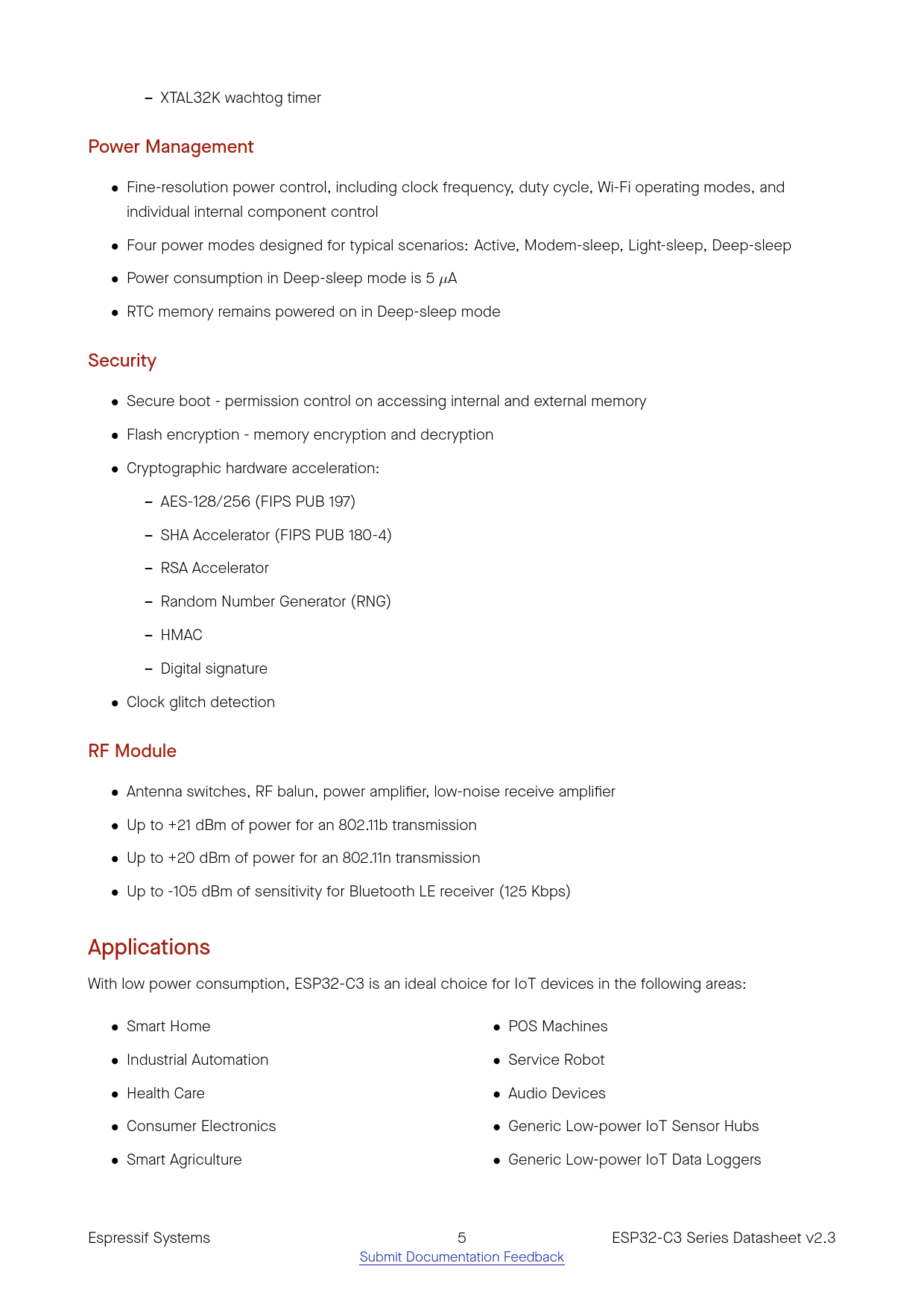

Datasheet ESP32-C3 (Espressif) - 5

– XTAL32K wachtog timer Power Management • Fine-resolution power control, including clock frequency, duty cycle, Wi-Fi operating modes, and individual internal component control • Four power modes designed for typical scenarios: Active, Modem-sleep, Light-sleep, Deep-sleep • Power consumption in Deep-sleep mode is 5 µA • RTC memory remains powered on in Deep-sleep mode Security • Secure boot - permission control on accessing internal and external memory • Flash encryption - memory encryption and decryption • Cryptographic hardware acceleration: – AES-128/256 (FIPS PUB 197) – SHA Accelerator (FIPS PUB 180-4) – RSA Accelerator – Random Number Generator (RNG) – HMAC – Digital signature • Clock glitch detection RF Module • Antenna switches, RF balun, power amplifier, low-noise receive amplifier • Up to +21 dBm of power for an 802.11b transmission • Up to +20 dBm of power for an 802.11n transmission • Up to -105 dBm of sensitivity for Bluetooth LE receiver (125 Kbps) Applications With low power consumption, ESP32-C3 is an ideal choice for IoT devices in the following areas: • Smart Home • POS Machines • Industrial Automation • Service Robot • Health Care • Audio Devices • Consumer Electronics • Generic Low-power IoT Sensor Hubs • Smart Agriculture • Generic Low-power IoT Data Loggers Espressif Systems 5 ESP32-C3 Series Datasheet v2.3 Submit Documentation Feedback Document Outline Product Overview Features Applications 1 ESP32-C3 Series Comparison 1.1 Nomenclature 1.2 Comparison 1.3 Chip Revision 2 Pins 2.1 Pin Layout 2.2 Pin Overview 2.3 IO Pins 2.3.1 IO MUX Functions 2.3.2 Analog Functions 2.3.3 Restrictions for GPIOs 2.3.4 Peripheral Pin Assignment 2.4 Analog Pins 2.5 Power Supply 2.5.1 Power Pins 2.5.2 Power Scheme 2.5.3 Chip Power-up and Reset 2.6 Pin Mapping Between Chip and Flash 3 Boot Configurations 3.1 Chip Boot Mode Control 3.2 ROM Messages Printing Control 4 Functional Description 4.1 System 4.1.1 Microprocessor and Master 4.1.1.1 High-Performance CPU 4.1.1.2 GDMA Controller 4.1.2 Memory Organization 4.1.2.1 Internal Memory 4.1.2.2 External Memory 4.1.2.3 Cache 4.1.2.4 eFuse Controller 4.1.3 System Components 4.1.3.1 IO MUX and GPIO Matrix 4.1.3.2 Reset 4.1.3.3 Clock 4.1.3.4 Interrupt Matrix 4.1.3.5 System Timer 4.1.3.6 Power Management Unit 4.1.3.7 Timer Group 4.1.3.8 Watchdog Timers 4.1.3.9 XTAL32K Watchdog Timers (XTWDT) 4.1.3.10 Permission Control 4.1.3.11 World Controller (WCL) 4.1.3.12 System Registers 4.1.3.13 Debug Assistant 4.1.4 Cryptography and Security Component 4.1.4.1 AES Accelerator 4.1.4.2 HMAC Accelerator 4.1.4.3 RSA Accelerator 4.1.4.4 SHA Accelerator 4.1.4.5 Digital Signature 4.1.4.6 External Memory Encryption and Decryption 4.1.4.7 Random Number Generator 4.1.4.8 Clock Glitch Detection 4.2 Peripherals 4.2.1 Connectivity Interface 4.2.1.1 UART Controller 4.2.1.2 SPI Controller 4.2.1.3 I2C Controller 4.2.1.4 I2S Controller 4.2.1.5 USB Serial/JTAG Controller 4.2.1.6 Two-wire Automotive Interface 4.2.1.7 LED PWM Controller 4.2.1.8 Remote Control Peripheral 4.2.2 Analog Signal Processing 4.2.2.1 SAR ADC 4.2.2.2 Temperature Sensor 4.3 Wireless Communication 4.3.1 Radio 4.3.1.1 2.4 GHz Receiver 4.3.1.2 2.4 GHz Transmitter 4.3.1.3 Clock Generator 4.3.2 Wi-Fi 4.3.2.1 Wi-Fi Radio and Baseband 4.3.2.2 Wi-Fi MAC 4.3.2.3 Networking Features 4.3.3 Bluetooth LE 4.3.3.1 Bluetooth LE PHY 4.3.3.2 Bluetooth LE Link Controller 5 Electrical Characteristics 5.1 Absolute Maximum Ratings 5.2 Recommended Operating Conditions 5.3 VDD_SPI Output Characteristics 5.4 DC Characteristics (3.3 V, 25 °C) 5.5 ADC Characteristics 5.6 Current Consumption 5.6.1 RF Current Consumption in Active Mode 5.6.2 Current Consumption in Other Modes 5.7 Memory Specifications 5.8 Reliability 6 RF Characteristics 6.1 Wi-Fi Radio 6.1.1 Wi-Fi RF Transmitter (TX) Characteristics 6.1.2 Wi-Fi RF Receiver (RX) Characteristics 6.2 Bluetooth 5 (LE) Radio 6.2.1 Bluetooth LE RF Transmitter (TX) Characteristics 6.2.2 Bluetooth LE RF Receiver (RX) Characteristics 7 Packaging ESP32-C3 Consolidated Pin Overview ESP32-C3 Chip Series Group Overview Datasheet Versioning Glossary Related Documentation and Resources Revision History
