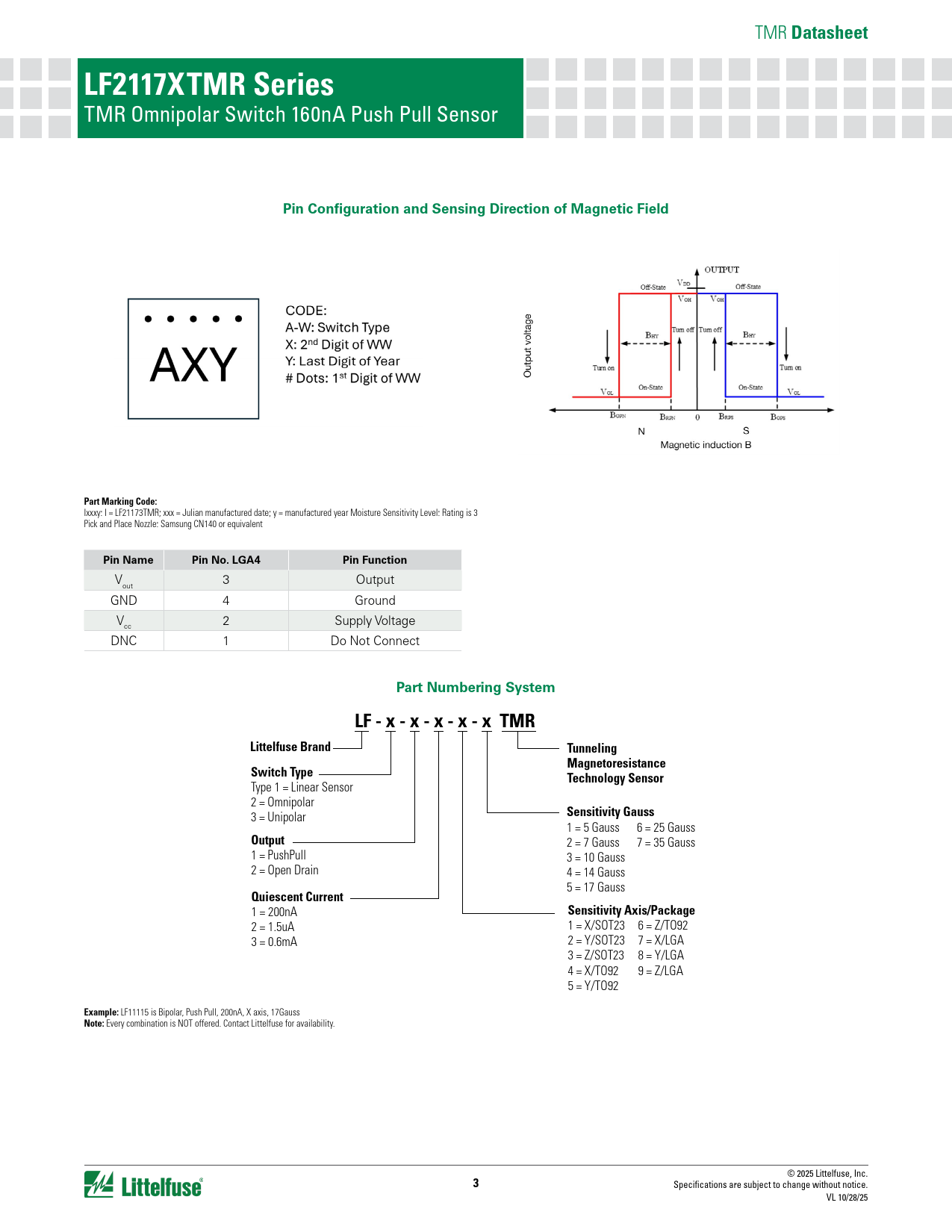

Datasheet. LF2117XTMR Series. Pin Configuration and Sensing Direction of Magnetic Field. Part Marking Code:. Pin Name
Línea de modelo para esta hoja de datos
Versión de texto del documento
TMR
Datasheet LF2117XTMR Series
TMR Omnipolar Switch 160nA Push Pull Sensor
Pin Configuration and Sensing Direction of Magnetic Field Part Marking Code:
Ixxxy: I = LF21173TMR; xxx = Julian manufactured date; y = manufactured year Moisture Sensitivity Level: Rating is 3 Pick and Place Nozzle: Samsung CN140 or equivalent
Pin Name Pin No. LGA4 Pin Function
V 3 Output out GND 4 Ground V 2 Supply Voltage cc DNC 1 Do Not Connect
Part Numbering System LF - x - x - x - x - x TMR Littelfuse Brand Tunneling Magnetoresistance Switch Type Technology Sensor
Type 1 = Linear Sensor 2 = Omnipolar 3 = Unipolar
Sensitivity Gauss
1 = 5 Gauss 6 = 25 Gauss
Output
2 = 7 Gauss 7 = 35 Gauss 1 = PushPull 3 = 10 Gauss 2 = Open Drain 4 = 14 Gauss 5 = 17 Gauss
Quiescent Current
1 = 200nA
Sensitivity Axis/Package
2 = 1.5uA 1 = X/SOT23 6 = Z/TO92 3 = 0.6mA 2 = Y/SOT23 7 = X/LGA 3 = Z/SOT23 8 = Y/LGA 4 = X/TO92 9 = Z/LGA 5 = Y/TO92
Example:
LF11115 is Bipolar, Push Pull, 200nA, X axis, 17Gauss
Note:
Every combination is NOT offered. Contact Littelfuse for availability. © 2025 Littelfuse, Inc.
3
Specifications are subject to change without notice. VL 10/28/25
