Datasheet DB3, DB4, SMDB3 (STMicroelectronics) - 6
| Fabricante | STMicroelectronics |
| Descripción | DIAC |
| Páginas / Página | 11 / 6 — DB3, DB4, SMDB3. Package information. 2.1. SOT23 package information. … |
| Formato / tamaño de archivo | PDF / 220 Kb |
| Idioma del documento | Inglés |

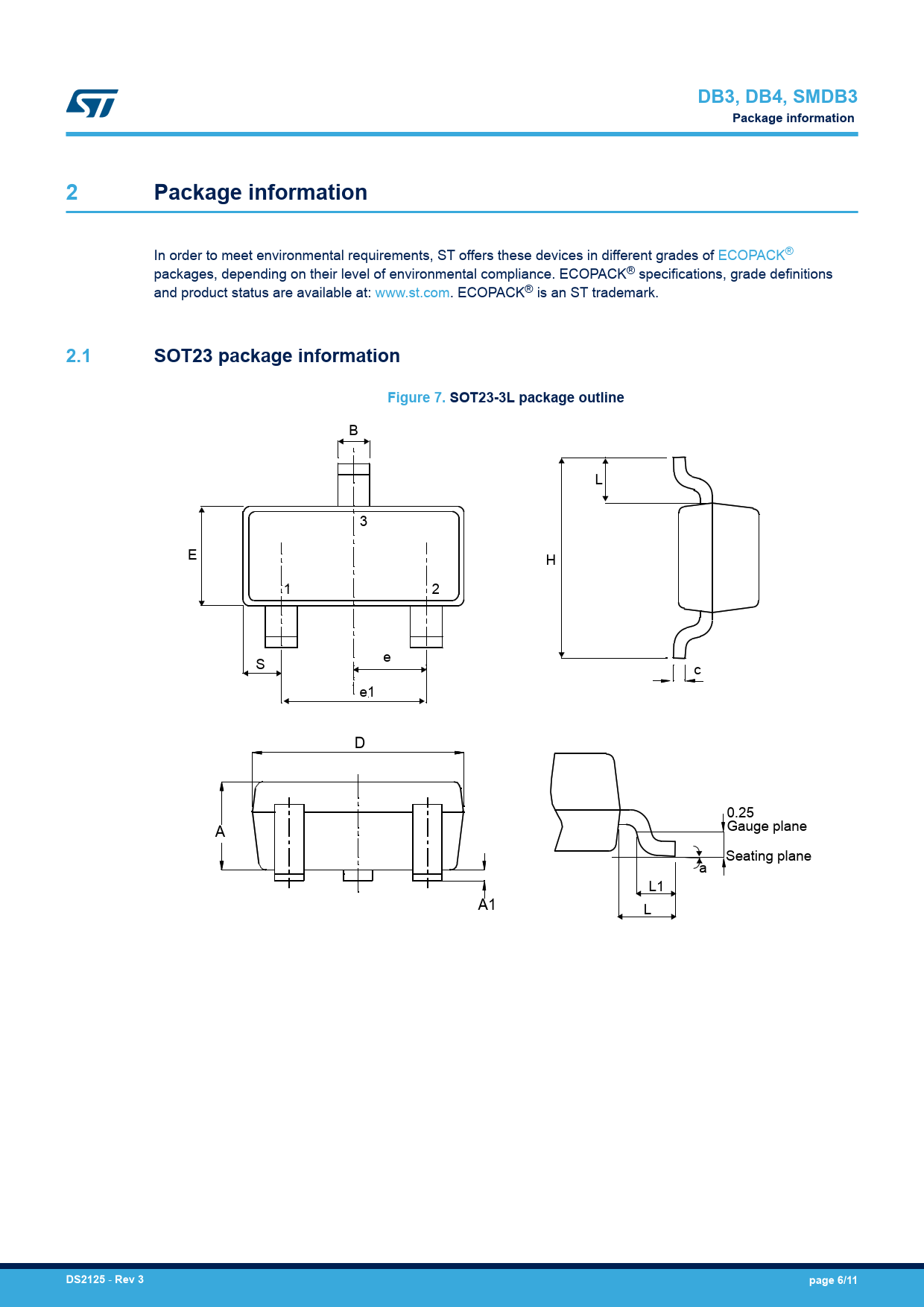

DB3, DB4, SMDB3. Package information. 2.1. SOT23 package information. Figure 7. SOT23-3L package outline. DS2125. Rev 3. page 6/11
Línea de modelo para esta hoja de datos
Versión de texto del documento
DB3, DB4, SMDB3 Package information 2 Package information
In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of environmental compliance. ECOPACK® specifications, grade definitions and product status are available at: www.st.com. ECOPACK® is an ST trademark.
2.1 SOT23 package information Figure 7. SOT23-3L package outline
B L 3 E H 1 2 e S c e1 D 0.25 Gauge plane A Seating plane a L1 A1 L
DS2125
-
Rev 3 page 6/11
