4N25, 4N26, 4N27, 4N28
Optocoupler, Phototransistor Output, Vishay Semiconductors with Base Connection

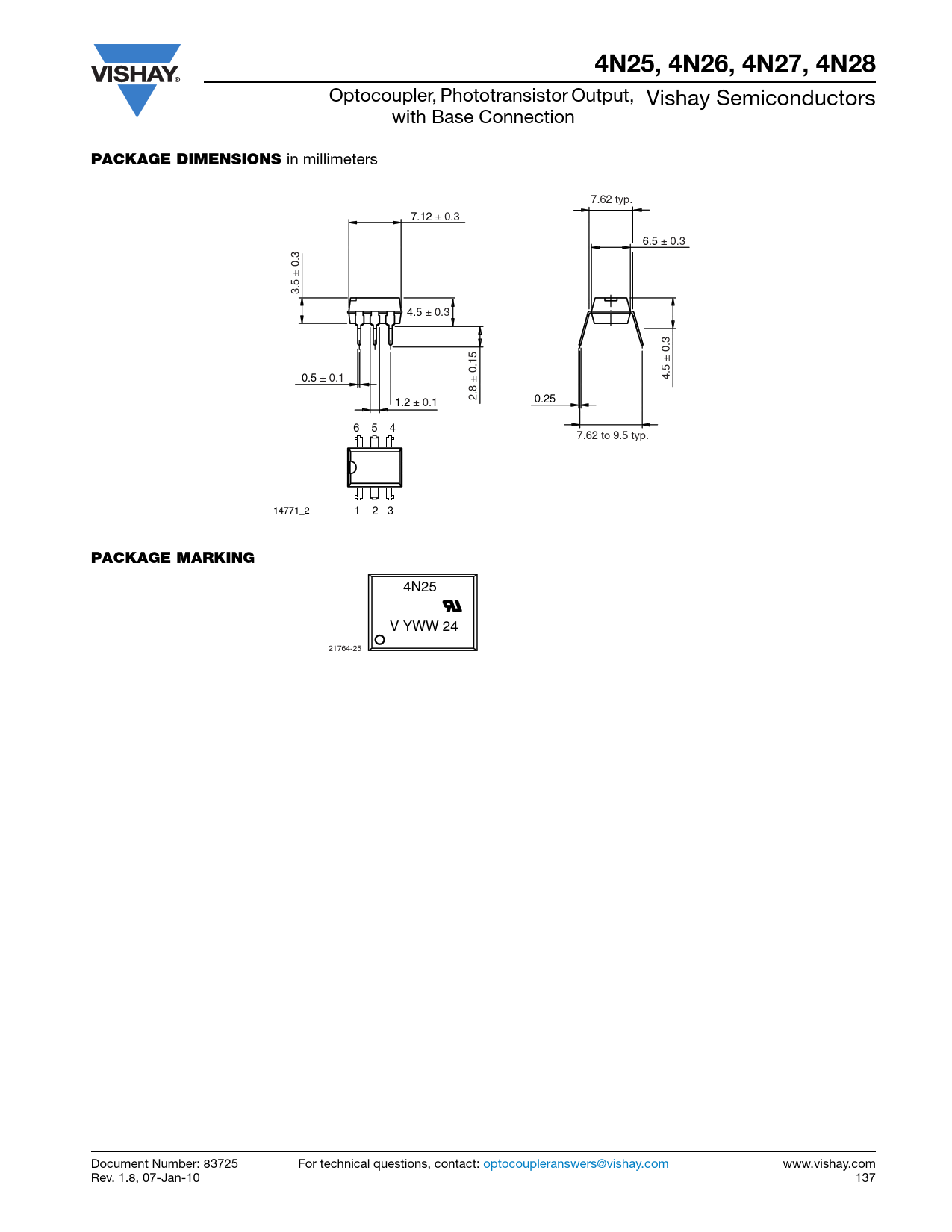

PACKAGE DIMENSIONS
in millimeters 7.62 typ. 7.12 ± 0.3 6.5 ± 0.3 3.5 ± 0.3 4.5 ± 0.3 0.5 ± 0.1 4.5 ± 0.3 2.8 ± 0.15 0.25 1.2 ± 0.1 6 5 4 7.62 to 9.5 typ. 14771_2 1 2 3
PACKAGE MARKING
4N25 V YWW 24 21764-25 Document Number: 83725 For technical questions, contact: optocoupleranswers@vishay.com www.vishay.com Rev. 1.8, 07-Jan-10 137
