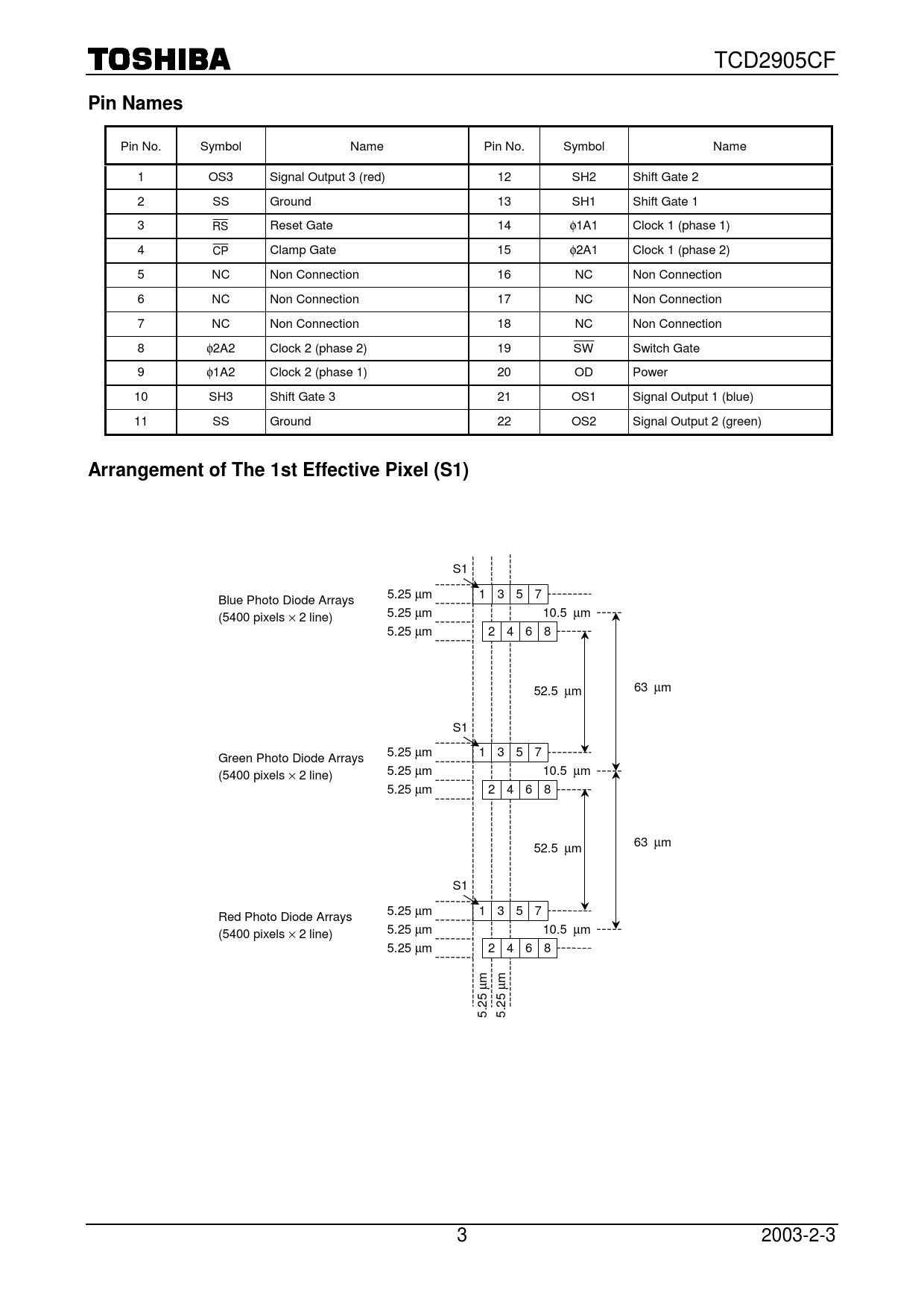

Pin Names. Arrangement of The 1st Effective Pixel (S1)

Pin Names Arrangement of The 1st Effective Pixel (S1)

Línea de modelo para esta hoja de datos

Versión de texto del documento

TCD2905CF
Pin Names
Pin No. Symbol Name Pin No. Symbol Name 1 OS3 Signal Output 3 (red) 12 SH2 Shift Gate 2 2 SS Ground 13 SH1 Shift Gate 1 3 RS Reset Gate 14 φ1A1 Clock 1 (phase 1) 4 CP Clamp Gate 15 φ2A1 Clock 1 (phase 2) 5 NC Non Connection 16 NC Non Connection 6 NC Non Connection 17 NC Non Connection 7 NC Non Connection 18 NC Non Connection 8 φ2A2 Clock 2 (phase 2) 19 SW Switch Gate 9 φ1A2 Clock 2 (phase 1) 20 OD Power 10 SH3 Shift Gate 3 21 OS1 Signal Output 1 (blue) 11 SS Ground 22 OS2 Signal Output 2 (green)
Arrangement of The 1st Effective Pixel (S1)
S1 5.25 µm 1 3 5 7 Blue Photo Diode Arrays (5400 pixels × 2 line) 5.25 µm 10.5 µm 5.25 µm 2 4 6 8 63 µm 52.5 µm S1 5.25 µm 1 3 5 7 Green Photo Diode Arrays (5400 pixels × 2 line) 5.25 µm 10.5 µm 5.25 µm 2 4 6 8 63 µm 52.5 µm S1 5.25 µm 1 3 5 7 Red Photo Diode Arrays (5400 pixels × 2 line) 5.25 µm 10.5 µm 5.25 µm 2 4 6 8 µm µm 25 25 5. 5. 3 2003-2-3
