User Manual WIZ-IP55 (WIZnet) - 8
| Fabricante | WIZnet |
| Descripción | Compact Ethernet network offload module based on W5500, a hardwired TCP/IP chip that integrates the TCP/IP stack plus 10/100 Ethernet MAC & PHY |
| Páginas / Página | 11 / 8 — WIZ-IP55 User Manual. Pin number. Pin name. Function. P10. P11. P12. P13. … |
| Formato / tamaño de archivo | PDF / 745 Kb |
| Idioma del documento | Inglés |
WIZ-IP55 User Manual. Pin number. Pin name. Function. P10. P11. P12. P13. 7 / 10
Línea de modelo para esta hoja de datos
Versión de texto del documento

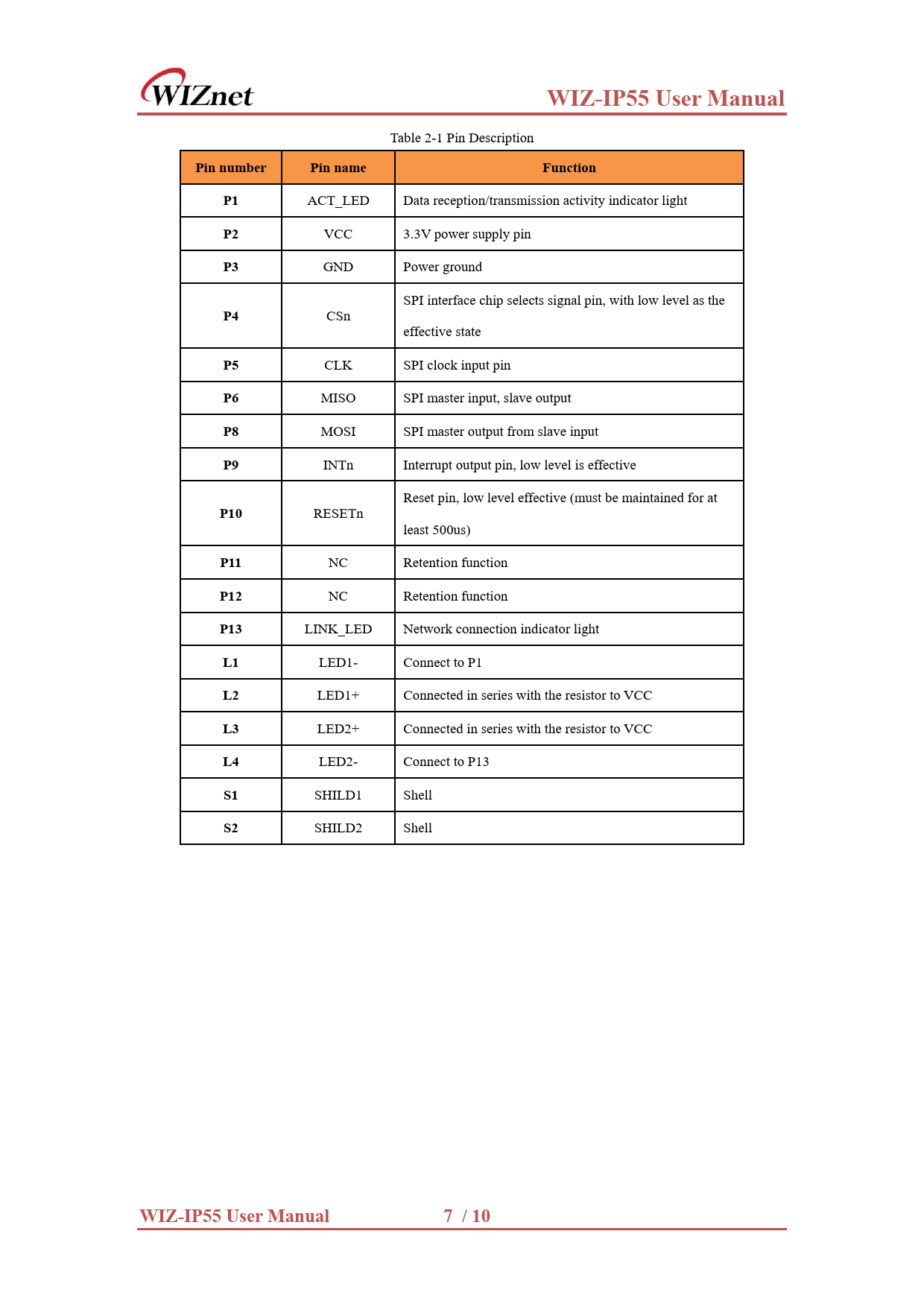

WIZ-IP55 User Manual
Table 2-1 Pin Description
Pin number Pin name Function P1
ACT_LED Data reception/transmission activity indicator light
P2
VCC 3.3V power supply pin
P3
GND Power ground SPI interface chip selects signal pin, with low level as the
P4
CSn effective state
P5
CLK SPI clock input pin
P6
MISO SPI master input, slave output
P8
MOSI SPI master output from slave input
P9
INTn Interrupt output pin, low level is effective Reset pin, low level effective (must be maintained for at
P10
RESETn least 500us)
P11
NC Retention function
P12
NC Retention function
P13
LINK_LED Network connection indicator light
L1
LED1- Connect to P1
L2
LED1+ Connected in series with the resistor to VCC
L3
LED2+ Connected in series with the resistor to VCC
L4
LED2- Connect to P13
S1
SHILD1 Shell
S2
SHILD2 Shell
WIZ-IP55 User Manual 7 / 10
Table 2-1 Pin Description
Pin number Pin name Function P1
ACT_LED Data reception/transmission activity indicator light
P2
VCC 3.3V power supply pin
P3
GND Power ground SPI interface chip selects signal pin, with low level as the
P4
CSn effective state
P5
CLK SPI clock input pin
P6
MISO SPI master input, slave output
P8
MOSI SPI master output from slave input
P9
INTn Interrupt output pin, low level is effective Reset pin, low level effective (must be maintained for at
P10
RESETn least 500us)
P11
NC Retention function
P12
NC Retention function
P13
LINK_LED Network connection indicator light
L1
LED1- Connect to P1
L2
LED1+ Connected in series with the resistor to VCC
L3
LED2+ Connected in series with the resistor to VCC
L4
LED2- Connect to P13
S1
SHILD1 Shell
S2
SHILD2 Shell
WIZ-IP55 User Manual 7 / 10
