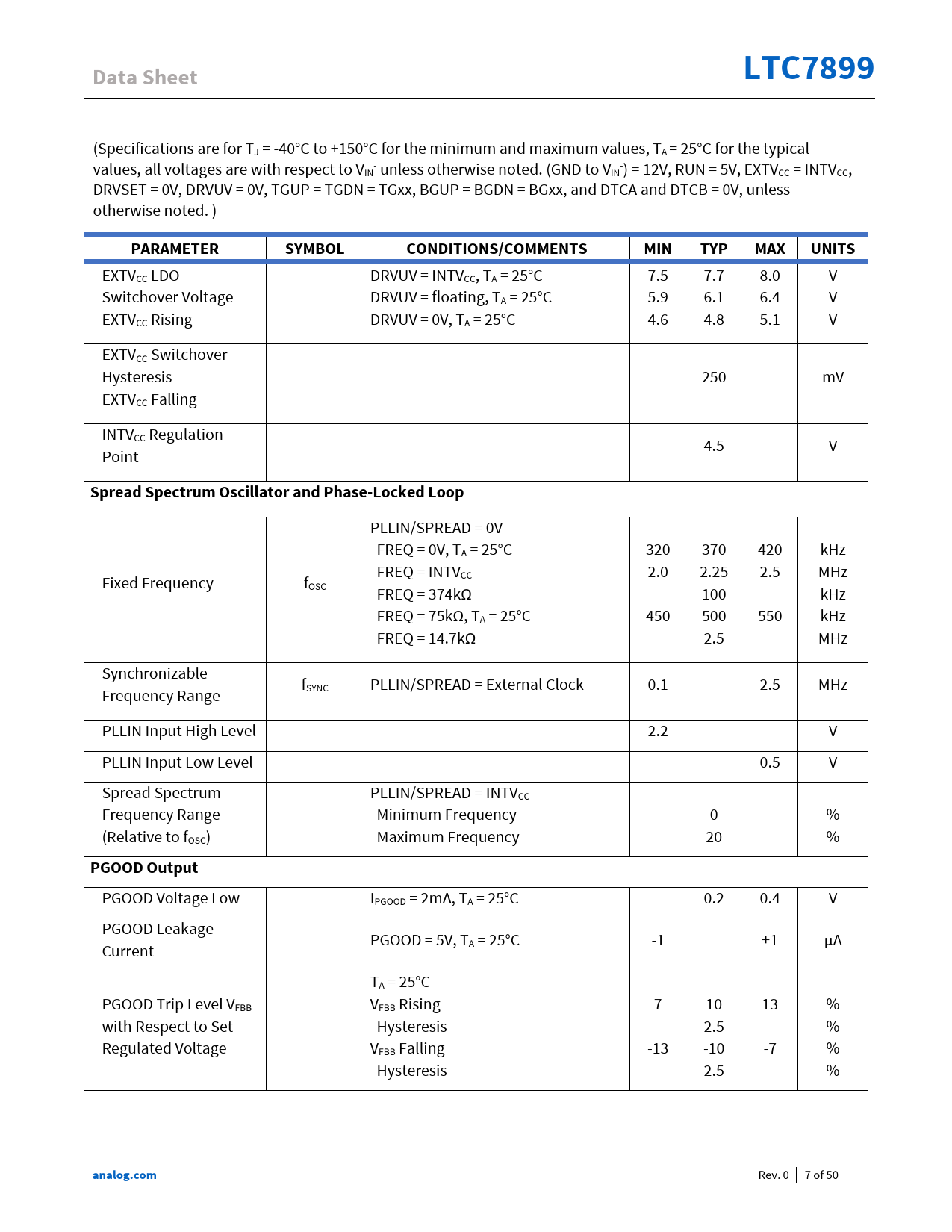

Data Sheet LTC7899
(Specifications are for TJ = -40°C to +150°C for the minimum and maximum values, TA = 25°C for the typical values, all voltages are with respect to V - - IN unless otherwise noted. (GND to VIN ) = 12V, RUN = 5V, EXTVCC = INTVCC, DRVSET = 0V, DRVUV = 0V, TGUP = TGDN = TGxx, BGUP = BGDN = BGxx, and DTCA and DTCB = 0V, unless otherwise noted. )
PARAMETER SYMBOL CONDITIONS/COMMENTS MIN TYP MAX UNITS
EXTVCC LDO DRVUV = INTVCC, TA = 25°C 7.5 7.7 8.0 V Switchover Voltage DRVUV = floating, TA = 25°C 5.9 6.1 6.4 V EXTVCC Rising DRVUV = 0V, TA = 25°C 4.6 4.8 5.1 V EXTVCC Switchover Hysteresis 250 mV EXTVCC Falling INTVCC Regulation 4.5 V Point
Spread Spectrum Oscillator and Phase-Locked Loop
PLLIN/SPREAD = 0V FREQ = 0V, TA = 25°C 320 370 420 kHz FREQ = INTV 2.0 2.25 2.5 MHz Fixed Frequency f CC OSC FREQ = 374kΩ 100 kHz FREQ = 75kΩ, TA = 25°C 450 500 550 kHz FREQ = 14.7kΩ 2.5 MHz Synchronizable f Frequency Range SYNC PLLIN/SPREAD = External Clock 0.1 2.5 MHz PLLIN Input High Level 2.2 V PLLIN Input Low Level 0.5 V Spread Spectrum PLLIN/SPREAD = INTVCC Frequency Range Minimum Frequency 0 % (Relative to fOSC) Maximum Frequency 20 %
PGOOD Output
PGOOD Voltage Low IPGOOD = 2mA, TA = 25°C 0.2 0.4 V PGOOD Leakage PGOOD = 5V, T Current A = 25°C -1 +1 μA TA = 25°C PGOOD Trip Level VFBB VFBB Rising 7 10 13 % with Respect to Set Hysteresis 2.5 % Regulated Voltage VFBB Falling -13 -10 -7 % Hysteresis 2.5 %
analog.com
