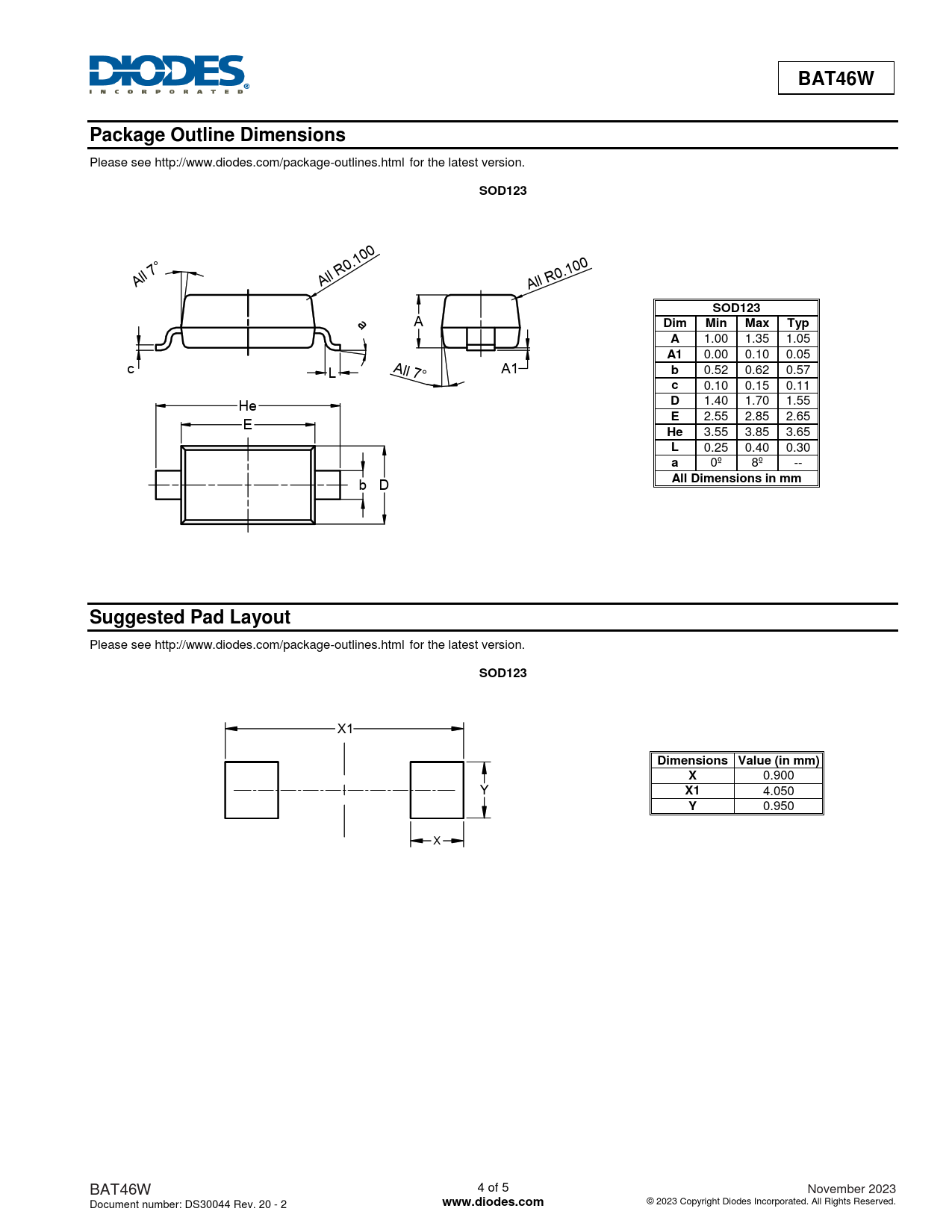

BAT46W Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOD123
0 0 All 7° All R0.10 All R0.10
SOD123
a A
Dim Min Max Typ A
1.00 1.35 1.05
A1
0.00 0.10 0.05 c L All 7° A1
b
0.52 0.62 0.57
c
0.10 0.15 0.11 He
D
1.40 1.70 1.55 E
E
2.55 2.85 2.65
He
3.55 3.85 3.65
L
0.25 0.40 0.30
a
0º 8º -- b D
All Dimensions in mm Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOD123
X1
Dimensions Value (in mm) X
0.900 Y
X1
4.050
Y
0.950 X BAT46W 4 of 5 November 2023 Document number: DS30044 Rev. 20 - 2
www.diodes.com
© 2023 Copyright Diodes Incorporated. All Rights Reserved.
