Datasheet MC33039, NCV33039 (ON Semiconductor) - 2
| Fabricante | ON Semiconductor |
| Descripción | High performance closed-loop speed control adapter for use in brushless DC motor control systems |
| Páginas / Página | 11 / 2 — MC33039, NCV33039. MAXIMUM RATINGS. Rating. Symbol. Value. Unit. … |
| Formato / tamaño de archivo | PDF / 362 Kb |
| Idioma del documento | Inglés |

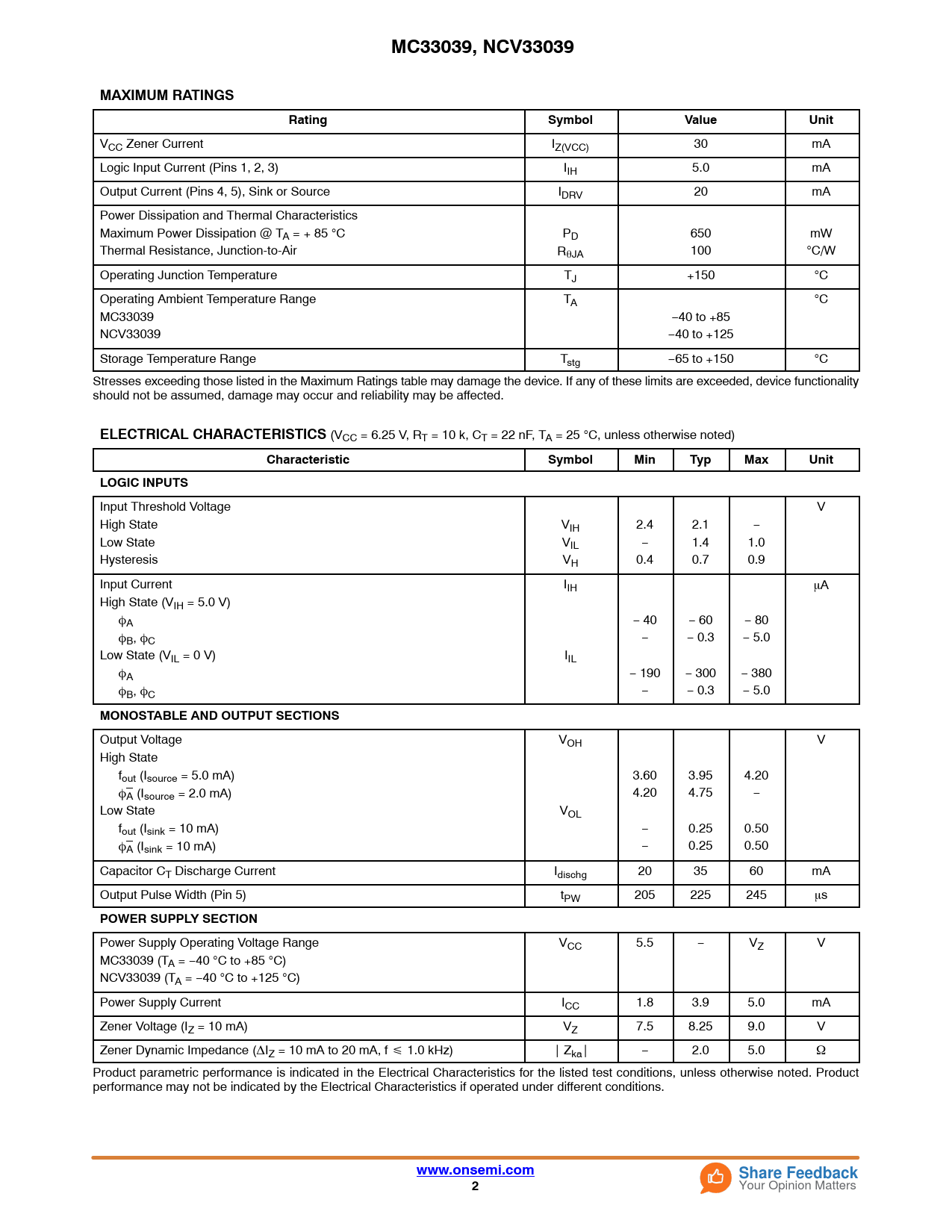

MC33039, NCV33039. MAXIMUM RATINGS. Rating. Symbol. Value. Unit. ELECTRICAL CHARACTERISTICS. Characteristic. Min. Typ. Max. LOGIC INPUTS
Línea de modelo para esta hoja de datos
Versión de texto del documento
MC33039, NCV33039 MAXIMUM RATINGS Rating Symbol Value Unit
VCC Zener Current IZ(VCC) 30 mA Logic Input Current (Pins 1, 2, 3) IIH 5.0 mA Output Current (Pins 4, 5), Sink or Source IDRV 20 mA Power Dissipation and Thermal Characteristics Maximum Power Dissipation @ TA = + 85 C PD 650 mW Thermal Resistance, Junction-to-Air RqJA 100 C/W Operating Junction Temperature TJ +150 C Operating Ambient Temperature Range TA C MC33039 −40 to +85 NCV33039 −40 to +125 Storage Temperature Range Tstg −65 to +150 C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.
ELECTRICAL CHARACTERISTICS
(VCC = 6.25 V, RT = 10 k, CT = 22 nF, TA = 25 C, unless otherwise noted)
Characteristic Symbol Min Typ Max Unit LOGIC INPUTS
Input Threshold Voltage V High State VIH 2.4 2.1 − Low State VIL − 1.4 1.0 Hysteresis VH 0.4 0.7 0.9 Input Current IIH mA High State (VIH = 5.0 V) fA − 40 − 60 − 80 fB, fC − − 0.3 − 5.0 Low State (VIL = 0 V) IIL fA − 190 − 300 − 380 fB, fC − − 0.3 − 5.0
MONOSTABLE AND OUTPUT SECTIONS
Output Voltage VOH V High State fout (Isource = 5.0 mA) 3.60 3.95 4.20 fA (Isource = 2.0 mA) 4.20 4.75 − Low State VOL fout (Isink = 10 mA) − 0.25 0.50 fA (Isink = 10 mA) − 0.25 0.50 Capacitor CT Discharge Current Idischg 20 35 60 mA Output Pulse Width (Pin 5) tPW 205 225 245 ms
POWER SUPPLY SECTION
Power Supply Operating Voltage Range VCC 5.5 − VZ V MC33039 (TA = −40 C to +85 C) NCV33039 (TA = −40 C to +125 C) Power Supply Current ICC 1.8 3.9 5.0 mA Zener Voltage (IZ = 10 mA) VZ 7.5 8.25 9.0 V Zener Dynamic Impedance (DIZ = 10 mA to 20 mA, f p 1.0 kHz) Zka − 2.0 5.0 W Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.
